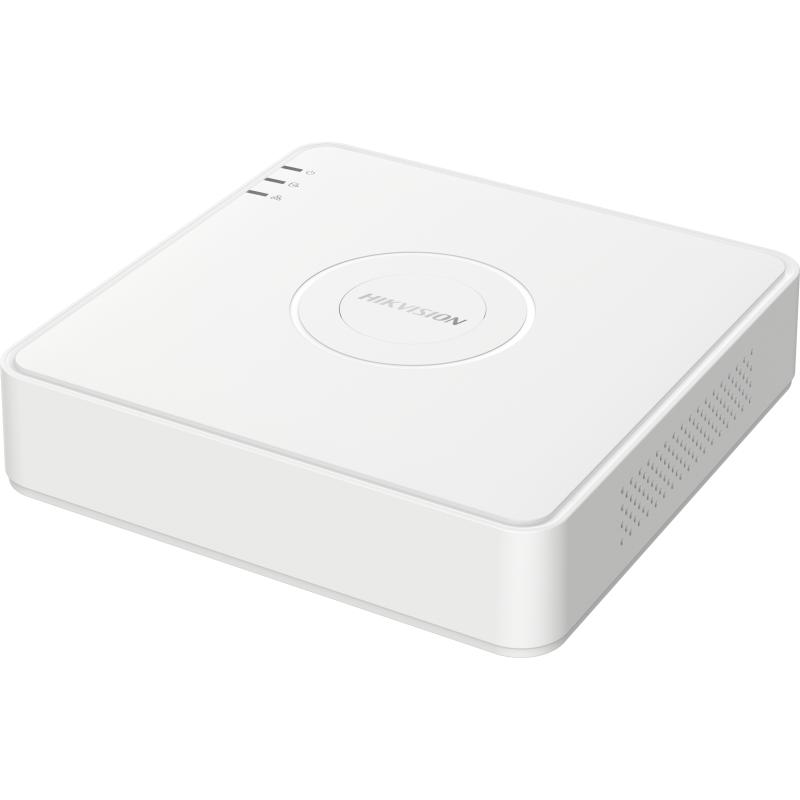

Hikvision IDS-7104HQHI-M1/S 4-ch 1080P Mini AcuSense DVR
Original price was: KSh 10,000.00.KSh 8,000.00Current price is: KSh 8,000.00. EXCL. VAT
Hikvision IDS-7104HQHI-M1/S 4-ch 1080P Mini AcuSense DVR
The Hikvision DS-7216HGHI-M1 16-Channel Turbo HD DVR is a digital video recorder designed for reliable CCTV surveillance in residential, commercial and institutional environments. Featuring 16 analogue camera inputs, 720p HD recording, H.265 Pro+ video compression and Motion Detection 2.0, this recorder delivers efficient video storage and centralized security monitoring.
Hikvision IDS-7104HQHI-M1/S 4-ch 1080P Mini AcuSense DVR
16 Channel CCTV Surveillance
The Hikvision DS-7216HGHI-M1 supports up to 16 analogue CCTV cameras through its BNC video inputs. This allows businesses and property owners to monitor multiple locations, including entrances, corridors, parking areas, reception areas, storage rooms and building perimeters.
720p HD Recording with 1080p Lite Support
The recorder supports 720p HD recording and 1080p Lite encoding, providing a practical balance between surveillance image quality and storage efficiency. 1080p Lite uses a reduced horizontal recording resolution compared with full 1920 × 1080 Full HD recording, helping conserve storage capacity in multi-camera installations.
H.265 Pro+ Video Compression
Hikvision H.265 Pro+ compression technology helps reduce video storage requirements compared with older encoding formats while maintaining useful surveillance image quality. This is particularly beneficial for 16-channel CCTV systems configured for continuous or scheduled recording.
Motion Detection 2.0
Motion Detection 2.0 provides human and vehicle classification, helping distinguish relevant security activity from environmental movement. This improves event filtering and makes it easier to locate important recordings during playback.
Multi Format CCTV Camera Compatibility
The DVR supports HDTVI, AHD, HDCVI and conventional CVBS analogue cameras. This flexibility makes it suitable for upgrading existing CCTV installations while retaining compatible cameras and coaxial cabling.
HDMI and VGA Display Outputs
The recorder provides HDMI and VGA interfaces for connecting compatible monitors and televisions. Users can view live camera footage, review recordings and configure surveillance settings through the local interface.
Hik-Connect Remote Monitoring
With a properly configured internet connection, the DVR supports remote access through Hik-Connect. Authorized users can monitor live camera feeds and review recorded footage from compatible smartphones and other supported devices.
Internal SATA Hard Drive Storage
The recorder features one SATA interface for installing a compatible surveillance-grade hard drive. Recording duration depends on the installed storage capacity, compression settings, camera resolution and recording schedule.
Key Features
- 16 BNC analogue CCTV camera inputs
- Supports HDTVI, AHD, HDCVI, CVBS and compatible IP cameras
- Two IP camera channels by default, expandable up to 18 in supported configurations
- IP camera resolution up to 5MP
- 720p HD recording with 1080p Lite support at up to 15fps
- H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression
- Motion Detection 2.0 with human and vehicle classification
- Smart search for efficient video playback
- Audio transmission over coaxial cable
- HDMI and VGA display outputs
- One SATA interface supporting up to 10TB
- Hik-Connect remote monitoring
- Compact 1U housing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Model | DS-7216HGHI-M1 |
| Product Type | Turbo HD Digital Video Recorder |
| Analogue Camera Channels | 16 |
| Analogue Video Inputs | 16 × BNC |
| Supported Camera Formats | HDTVI, AHD, HDCVI, CVBS |
| IP Camera Inputs | 2 by default, expandable up to 18 |
| Maximum IP Camera Resolution | 5MP |
| Encoding Resolution | 1080p Lite, 720p, WD1, 4CIF, VGA, CIF |
| HD Recording Frame Rate | Up to 15fps |
| SD Recording Frame Rate | 25fps PAL / 30fps NTSC |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Smart Detection | Motion Detection 2.0 |
| Human/Vehicle Classification | All 16 analogue channels |
| HDMI Output | 1 × HDMI, up to 1920 × 1080 |
| VGA Output | 1 × VGA, up to 1920 × 1080 |
| Audio Input | 1 × RCA; audio over coaxial cable |
| Audio Output | 1 × RCA |
| Hard Drive Interface | 1 × SATA |
| Maximum HDD Capacity | 10TB |
| Network Interface | RJ45 Ethernet |
| Remote Monitoring | Hik-Connect |
| Housing | 1U |
Recommended Applications
The Hikvision DS-7216HGHI-M1 is suitable for supermarkets, office buildings, warehouses, schools, hotels, apartment complexes, hospitals, restaurants, retail stores and commercial properties requiring centralized 16-camera surveillance. It is also suitable for upgrading existing analogue CCTV installations while retaining compatible cameras and coaxial cabling.
