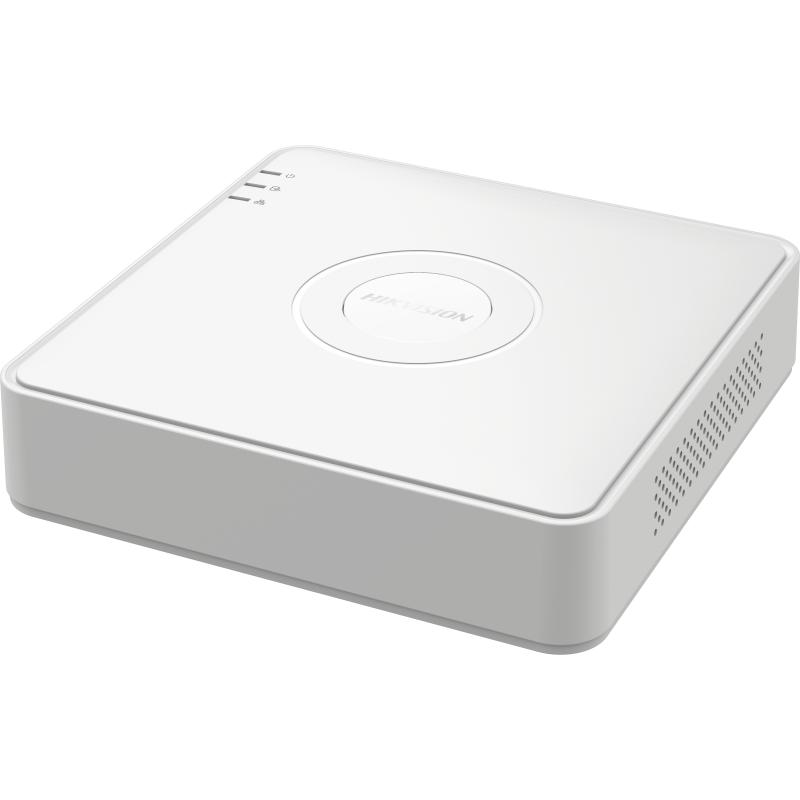

Hikvision DS-7108HGHI-M1/T 8ch 1080p Lite Mini 1U H.265 DVR

Eight Channel CCTV Recording

The Hikvision DS-7108HGHI-M1/T supports up to eight analogue surveillance cameras through its BNC video inputs. This allows users to monitor multiple locations, including entrances, reception areas, retail counters, corridors, parking spaces and residential compounds, using a single recording system.

1080p Lite Video Recording

The recorder supports 1080p Lite encoding, offering an economical balance between surveillance image quality and recording storage requirements. 1080p Lite uses a reduced horizontal resolution compared with full 1920 × 1080 recording, helping manage storage consumption across multiple cameras.

H.265 Pro+ Video Compression

Hikvision H.265 Pro+ technology helps reduce video storage requirements compared with older compression methods. This allows more efficient use of installed surveillance hard drives, particularly in systems configured for continuous recording.

Multiple Camera Format Compatibility

The DVR supports HDTVI, AHD, HDCVI and conventional CVBS analogue camera formats. This flexibility makes it useful for upgrading existing CCTV systems while retaining compatible cameras and coaxial cabling.

Motion Detection 2.0

The recorder supports intelligent motion detection with human and vehicle classification. This helps reduce unnecessary alerts caused by irrelevant movement and makes it easier to locate important security events.

HDMI and VGA Display Outputs

The DVR provides HDMI and VGA outputs for connecting compatible monitors and televisions. Users can view live camera feeds, review recorded footage and configure surveillance settings through the local interface.

Hik-Connect Remote Monitoring

When connected to the internet and configured correctly, the DVR supports remote monitoring through Hikvision’s compatible applications. Authorized users can access live footage and recorded video from supported mobile devices.

SATA Hard Drive Storage

The DVR includes one SATA interface for installing an internal surveillance-grade hard drive. Recording duration depends on the installed hard drive capacity, compression settings, recording schedule and connected cameras.

Compact Mini 1U Design

Its space-saving Mini 1U housing is suitable for homes, offices, retail counters, small server cabinets and security monitoring stations.

Key Features

• Eight BNC analogue CCTV camera inputs

• Supports HDTVI, AHD, HDCVI, CVBS and IP cameras

• Two IP channels by default, expandable to ten in supported configurations

• IP camera resolution up to 5MP

• H.265 Pro+, H.265 Pro and H.265 video compression

• 1080p Lite recording at up to 15fps

• Motion Detection 2.0 with human and vehicle classification

• Audio over coaxial cable

• HDTVI two-way audio support with compatible cameras

• HDMI and VGA simultaneous display output

• One SATA hard drive interface supporting up to 4TB

• Eight-channel synchronous playback

• Hik-Connect remote monitoring

• Two USB 2.0 ports

• Compact Mini 1U housing

Technical Specifications

Recommended Applications

The Hikvision DS-7108HGHI-M1/T is suitable for residential CCTV systems, retail shops, supermarkets, offices, pharmacies, restaurants, schools, apartment buildings, small warehouses and other premises requiring eight-channel surveillance recording. It is also suitable for upgrading existing analogue CCTV installations while retaining compatible cameras and coaxial cabling.
