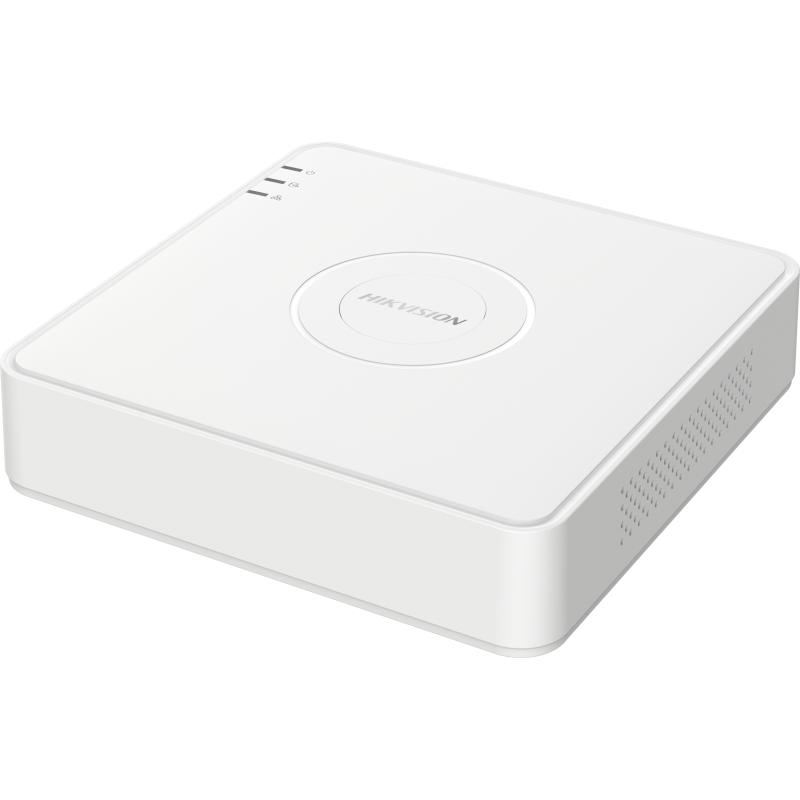

Hikvision DS-7104HGHI-M1 4-ch 720p Mini 1U H.265 DVR

4-Channel CCTV Recording

The Hikvision DS-7104HGHI-M1 supports up to four analogue surveillance cameras through its BNC video inputs. This makes it suitable for small CCTV systems covering entrances, reception areas, shops, corridors and residential compounds.

Multiple Camera Signal Compatibility

The DVR supports HDTVI, AHD, HDCVI and conventional CVBS analogue cameras, offering flexibility when installing or upgrading existing CCTV systems. Its compatibility with multiple video formats makes it useful for replacing older DVR equipment without necessarily replacing every camera.

H.265 Pro+ Video Compression

Hikvision’s H.265 Pro+ compression technology helps reduce recording storage requirements and bandwidth usage compared with older compression methods. This enables more efficient use of installed hard drive capacity.

720p Recording

The DVR is designed primarily for 720p analogue CCTV recording, providing a practical balance between video quality, storage consumption and system cost. It is well suited to basic surveillance requirements where high-resolution 4K recording is unnecessary.

SATA Hard Drive Storage

The recorder includes one SATA interface for connecting an internal surveillance hard drive. A compatible hard drive enables continuous, scheduled or event-based recording, depending on the configured recording settings.

HDMI and VGA Display Outputs

The DVR includes HDMI and VGA video outputs for connecting compatible monitors and televisions. Users can view live footage, access recordings and configure the surveillance system through the local interface.

Remote Network Surveillance

When connected to a compatible network and configured correctly, the DVR supports remote monitoring through Hikvision’s supported surveillance applications. Users can view live camera footage and access recorded video according to the recorder’s capabilities and network configuration.

Compact Mini 1U Design

The compact housing allows convenient installation in homes, offices, shops and small security monitoring stations without requiring a large equipment rack.

Motion Detection 2.0 with Human and Vehicle Classification

The DS-7104HGHI-M1 supports Hikvision Motion Detection 2.0, which uses deep-learning technology to distinguish people and vehicles from other moving objects. This helps reduce false alarms caused by leaves, lighting changes and other irrelevant motion. Smart search also helps users locate recordings associated with particular events.

Key Features

• Four BNC analogue camera inputs

• Up to five IP camera channels, depending on configuration

• Supports IP cameras up to 2MP

• HDTVI, AHD, HDCVI, CVBS and IP compatibility

• H.265 Pro+, H.265 Pro and H.265 compression

• Motion Detection 2.0 with human and vehicle classification

• Up to 1080p Lite at 15fps encoding capability

• Audio over coaxial cable support

• One SATA hard drive interface supporting up to 4TB

• HDMI and VGA video outputs

• Hik-Connect remote viewing support

• Two USB 2.0 interfaces

• Compact Mini 1U housing

Technical Specifications

Recommended Applications

The Hikvision DS-7104HGHI-M1 is suitable for home CCTV systems, small offices, retail shops, pharmacies, salons, reception areas, small warehouses and other premises requiring four-channel surveillance recording.
