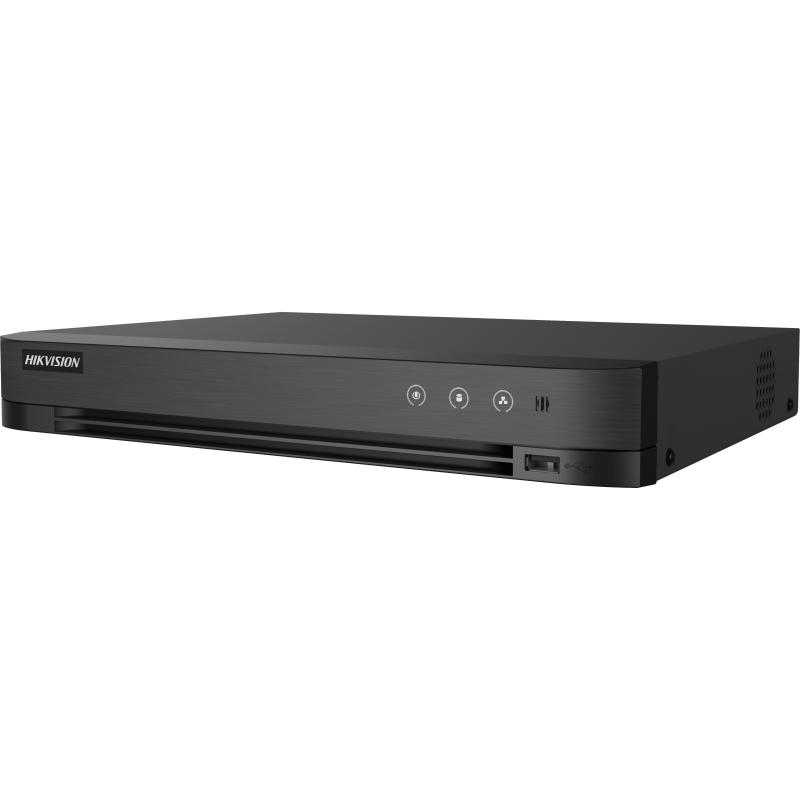

Hikvision IDS-7204HQHI-M1/FA 4ch 1080p 1U AcuSense DVR

Four-Channel CCTV Surveillance

The Hikvision iDS-7204HQHI-M1/FA supports four analogue CCTV cameras, allowing users to monitor entrances, reception areas, offices, retail counters and residential compounds from a centralized recording system. It supports compatible HDTVI, AHD, HDCVI and CVBS cameras, offering flexibility when upgrading existing installations.

1080p HD Video Recording

The DVR supports 1080p video recording with compatible cameras, providing clear footage for everyday security monitoring. Recording resolution and frame rate depend on the selected operating mode and connected camera format.

Hikvision AcuSense Intelligent Detection

Hikvision AcuSense technology uses deep-learning algorithms to distinguish people and vehicles from other movement. This helps security operators focus on relevant events and reduce false alarms caused by environmental activity.

H.265 Pro+ Video Compression

The recorder uses H.265 Pro+ compression technology to help reduce video storage requirements compared with older encoding methods. This makes it suitable for continuous and scheduled recording on compatible surveillance-grade hard drives.

Multi Format Camera Compatibility

The DVR works with supported HDTVI, AHD, HDCVI and conventional CVBS cameras. It is suitable for upgrading existing analogue CCTV systems without necessarily replacing compatible cameras and coaxial cabling.

HDMI and VGA Display Outputs

HDMI and VGA connections allow users to monitor live camera feeds, review recordings and configure surveillance settings using compatible monitors.

Hik-Connect Remote Monitoring

When connected to a properly configured network, the DVR supports remote access through Hik-Connect. Authorized users can monitor live footage and review recordings from supported smartphones and other devices.

Internal SATA Storage

The recorder provides an internal SATA hard drive interface for surveillance footage storage. Recording duration depends on the installed hard drive capacity, recording resolution, compression settings and surveillance schedule.

Facial Recognition and Face Picture Search

A distinguishing feature of the iDS-7204HQHI-M1/FA is its support for face picture comparison and face picture search. The recorder supports up to 16 face picture libraries containing a combined maximum of 500 face pictures. Facial comparison alarms are supported on one HD analogue channel. This makes the DVR useful for surveillance systems requiring additional face-based search and event management capabilities.

Intelligent Perimeter Protection

The DVR supports deep learning based line crossing and intrusion detection, with human and vehicle classification on up to two channels. Facial recognition and advanced perimeter protection are alternative intelligent operating modes; their channel capacities should not be combined as though all functions operate simultaneously.

Key Features

• Four BNC analogue camera inputs

• Full 1080p encoding at up to 15fps

• AcuSense deep-learning technology

• Motion Detection 2.0 on all four analogue channels

• Human and vehicle classification

• Up to two channels of intelligent perimeter protection

• One-channel face picture comparison

• Up to 16 face picture libraries and 500 stored face pictures

• H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression

• HDTVI, AHD, HDCVI, CVBS and IP camera compatibility

• Up to six IP channels in supported configurations

• IP camera resolution up to 6MP

• HDMI and VGA display outputs

• Hik-Connect remote monitoring

• One SATA hard drive interface supporting up to 10TB

• Compact 1U housing

Technical Specifications

Recommended Applications

The Hikvision iDS-7204HQHI-M1/FA is suitable for retail shops, office entrances, residential compounds, reception areas, pharmacies, restaurants, small warehouses and other premises requiring intelligent CCTV surveillance.

Its facial comparison and perimeter protection capabilities make it especially useful where operators need to investigate specific security events rather than simply review continuous recordings.
