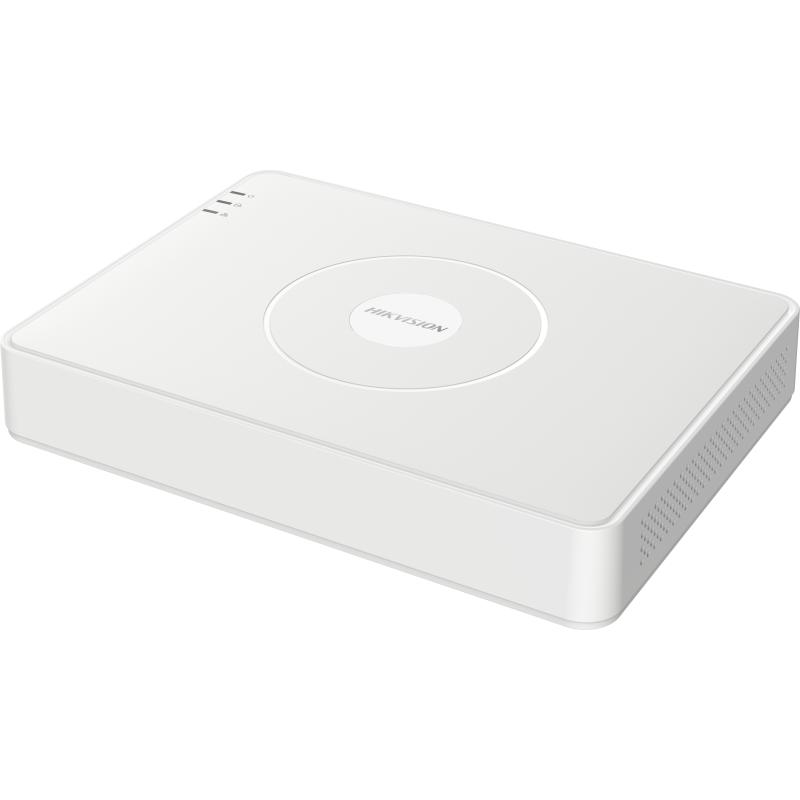

Hikvision DS-7116HGHI-M1 16-ch 720p Mini 1U H.265 DVR

16-Channel CCTV Surveillance

The Hikvision DS-7116HGHI-M1 supports up to 16 analogue CCTV cameras through its BNC video inputs, allowing users to monitor multiple areas from a single recording system. It is suitable for surveillance of entrances, corridors, parking areas, offices, retail counters, storage rooms and building perimeters.

720p HD Recording with 1080p Lite Support

The DVR supports 720p recording and 1080p Lite encoding, providing a practical balance between surveillance image quality and storage efficiency. 1080p Lite uses a reduced horizontal resolution compared with full 1920 × 1080 Full HD recording, helping reduce storage requirements across multiple cameras.

H.265 Pro+ Video Compression

Hikvision H.265 Pro+ compression technology helps reduce video file sizes compared with older encoding methods. This is particularly beneficial for 16-camera surveillance systems where multiple channels may record continuously.

Multi-Format Camera Compatibility

The recorder supports HDTVI, AHD, HDCVI and conventional CVBS analogue camera formats. This flexibility makes it suitable for upgrading existing CCTV systems while retaining compatible cameras and coaxial cabling.

Motion Detection 2.0

Motion Detection 2.0 helps distinguish human and vehicle movement from irrelevant activity. This improves event filtering and makes it easier to identify important security footage during playback.

HDMI and VGA Display Outputs

The DVR provides HDMI and VGA connections for compatible monitors and televisions. Users can view live camera footage, review recordings and manage surveillance settings through the local interface.

Hik-Connect Remote Monitoring

With a properly configured network connection, authorized users can access live camera feeds and recorded footage through Hik-Connect on compatible devices.

SATA Hard Drive Storage

The recorder includes an internal SATA interface for installing a compatible surveillance-grade hard drive. Recording duration depends on the installed storage capacity, video compression settings, camera resolution and recording schedule.

Compact Mini 1U Design

Its space-saving Mini 1U housing makes it suitable for installation in offices, retail premises, security cabinets and other locations where equipment space is limited.

Key Features

• 16 BNC analogue CCTV camera inputs

• HDTVI, AHD, HDCVI, CVBS and IP camera compatibility

• Two IP camera channels by default, expandable up to 18 in supported configurations

• IP camera resolution up to 5MP

• 720p recording and 1080p Lite encoding at up to 15fps

• H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 video compression

• Motion Detection 2.0 with human and vehicle classification

• Smart search by object or event type

• Audio transmission over coaxial cable

• HDMI and VGA simultaneous display output

• 16-channel synchronous playback

• One SATA hard drive interface supporting up to 10TB

• Hik-Connect remote monitoring

• Two USB 2.0 ports

• Compact Mini 1U housing

Technical Specifications

Recommended Applications

The Hikvision DS-7116HGHI-M1 is suitable for supermarkets, office buildings, warehouses, schools, hotels, apartment complexes, clinics, restaurants, retail stores and commercial properties requiring centralized 16-camera surveillance. It is also suitable for upgrading existing analogue CCTV installations while retaining compatible cameras and coaxial cabling.
