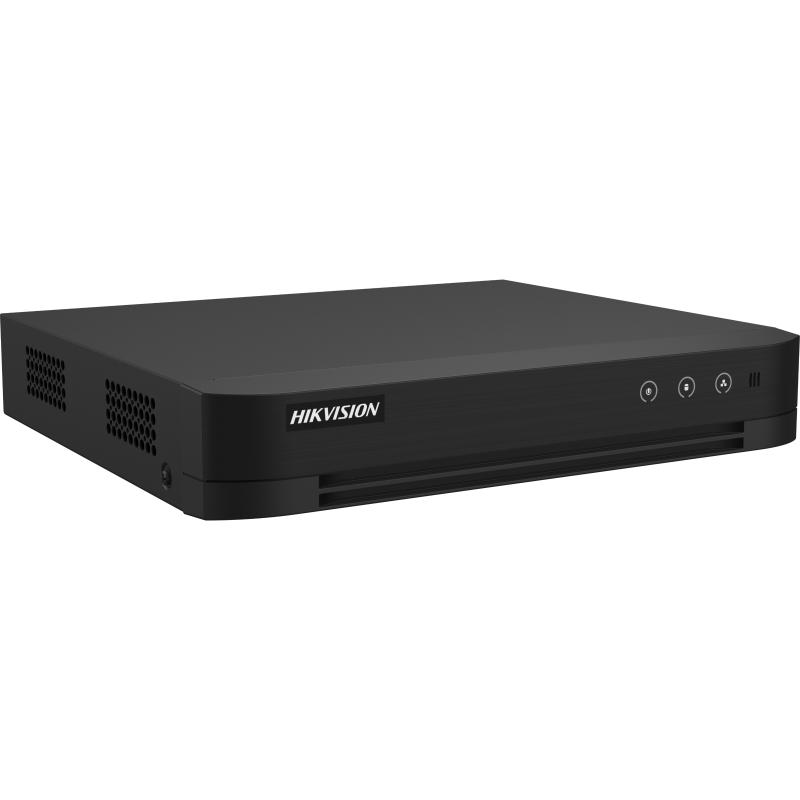

Hikvision DS-7204HGHI-M1/T 4-ch 1080p Lite 1U H.265 DVR

Four Channel CCTV Surveillance

The Hikvision DS-7204HGHI-M1/T supports up to four analogue surveillance cameras through its BNC video inputs. This allows users to monitor entrances, reception areas, retail counters, corridors and residential compounds from one recording system.

1080p Lite Recording

The DVR supports 1080p Lite recording, providing an economical recording option for compatible HD analogue cameras. 1080p Lite uses a reduced horizontal recording resolution compared with full 1920 × 1080 Full HD, helping balance image quality with storage efficiency.

H.265 Pro+ Video Compression

Hikvision’s H.265 Pro+ compression technology helps reduce video storage requirements while maintaining useful surveillance image quality. This allows more efficient use of installed surveillance hard drives, particularly for continuous recording.

Multiple Camera Format Compatibility

The recorder supports HDTVI, AHD, HDCVI and conventional CVBS analogue camera signals. This flexibility makes it useful for replacing older DVRs without necessarily replacing all existing compatible cameras.

Motion Detection and Event Recording

Motion detection allows the DVR to identify movement within configured surveillance areas. Users can configure recording schedules and review footage associated with detected activity.

HDMI and VGA Video Outputs

The DVR provides HDMI and VGA connections for local viewing through compatible monitors. Security operators can monitor live camera feeds, review recordings and manage system settings.

Hik-Connect Remote Monitoring

When connected to the internet and configured correctly, the DVR supports remote monitoring through Hikvision’s compatible applications. Authorized users can view live footage and access recordings from supported devices.

Internal SATA Hard Drive Storage

The recorder includes a SATA interface for installing a compatible surveillance-grade hard drive. The storage capacity and recording duration depend on the installed hard drive, video settings and recording schedule.

Motion Detection 2.0 with Human and Vehicle Classification

The DS-7204HGHI-M1/T supports Motion Detection 2.0 across all four analogue channels. Using deep learning based analysis, it distinguishes human and vehicle movement from irrelevant activity such as moving leaves and changes in lighting. Smart search helps users locate recordings by event or object type.

Key Features

• Four BNC analogue camera inputs

• HDTVI, AHD, HDCVI, CVBS and IP compatibility

• Up to five IP camera channels in supported configurations

• IP camera resolution up to 2MP

• 1080p Lite recording at up to 25/30fps

• H.265 Pro+, H.265 Pro and H.265 compression

• Motion Detection 2.0 with human and vehicle classification

• Audio-over-coaxial support

• HDTVI two-way audio support with compatible equipment

• HDMI and VGA simultaneous display output

• One SATA interface supporting up to 4TB

• Hik-Connect remote monitoring

• Four-channel synchronous playback

• Two USB 2.0 interfaces

• Compact 1U chassis

Technical Specifications

Recommended Applications

The Hikvision DS-7204HGHI-M1/T is suitable for homes, retail shops, offices, pharmacies, restaurants, salons, reception areas, small warehouses and other premises requiring reliable four-camera surveillance recording. It is also useful for upgrading existing analogue CCTV installations while retaining compatible cameras and coaxial cabling.
