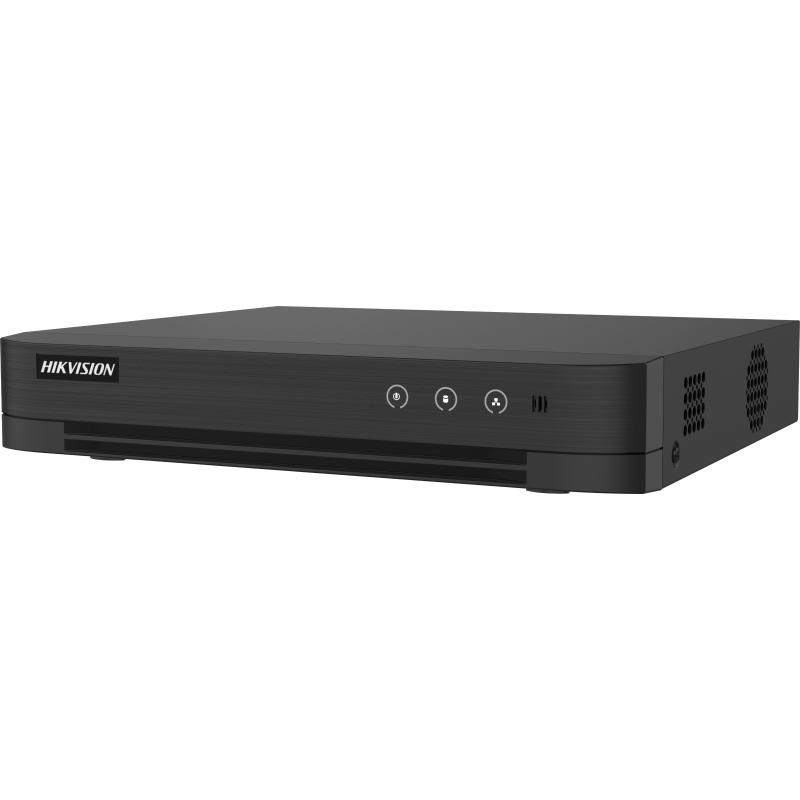

Hikvision DS-7216HGHI-M1/T 16-ch 1080P Lite 1U H.265 DVR

16 Channel CCTV Surveillance

The Hikvision DS-7216HGHI-M1/T supports up to 16 analogue CCTV cameras through its BNC video inputs. This allows security personnel to monitor entrances, corridors, parking areas, offices, retail counters, warehouses and building perimeters from one centralized recording system.

1080p Lite Video Recording

The DVR supports 1080p Lite recording, providing a practical balance between image quality and storage efficiency. 1080p Lite uses a reduced horizontal recording resolution compared with full 1920 × 1080 Full HD, helping control storage consumption in multi-camera CCTV installations.

H.265 Pro+ Video Compression

Hikvision’s H.265 Pro+ compression technology helps reduce video storage requirements compared with older encoding formats. This is especially beneficial for 16-channel surveillance systems where several cameras may record continuously.

Multi Format Camera Compatibility

The DVR supports HDTVI, AHD, HDCVI and conventional CVBS analogue cameras. This compatibility allows businesses to upgrade their recording equipment while retaining supported existing cameras and coaxial cabling.

Intelligent Motion Detection

Motion-based recording helps users identify activity within monitored areas and review relevant surveillance footage. With supported Motion Detection 2.0 functionality, human and vehicle classification can improve event filtering and reduce unnecessary alerts.

HDMI and VGA Display Outputs

The recorder provides HDMI and VGA connections for compatible monitors and televisions. Users can monitor live camera feeds, review recordings and configure security settings through the local interface.

Hik-Connect Remote Monitoring

When connected to a compatible network and configured correctly, the DVR supports remote monitoring through Hik-Connect. Authorized users can access live camera feeds and review recordings from supported mobile devices.

Internal SATA Hard Drive Storage

The recorder provides an internal SATA interface for installing a compatible surveillance-grade hard drive. Recording duration depends on installed storage capacity, compression settings, camera resolution and recording schedules.

Compact 1U Housing

The space efficient 1U chassis is suitable for security cabinets, office installations, retail premises and centralized CCTV monitoring locations.

Key Features

• 16 BNC analogue camera inputs

• HDTVI, AHD, HDCVI, CVBS and IP camera compatibility

• Two IP camera channels by default, expandable up to 18 in supported configurations

• IP camera resolution up to 5MP

• 1080p Lite encoding at up to 15fps

• H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression

• Motion Detection 2.0 with human and vehicle classification

• Smart search for efficient recording playback

• Audio transmission over coaxial cable

• HDTVI two-way audio support with compatible cameras

• HDMI and VGA video outputs

• 16-channel synchronous playback

• One SATA hard drive interface supporting up to 10TB

• Hik-Connect remote monitoring

• Compact 1U housing

Technical Specifications

Recommended Applications

The Hikvision DS-7216HGHI-M1/T is suitable for supermarkets, schools, office buildings, warehouses, hotels, hospitals, retail stores, apartment complexes and commercial premises requiring centralized CCTV recording across multiple cameras. It is also useful for upgrading existing analogue CCTV systems while retaining compatible cameras and coaxial cabling.
