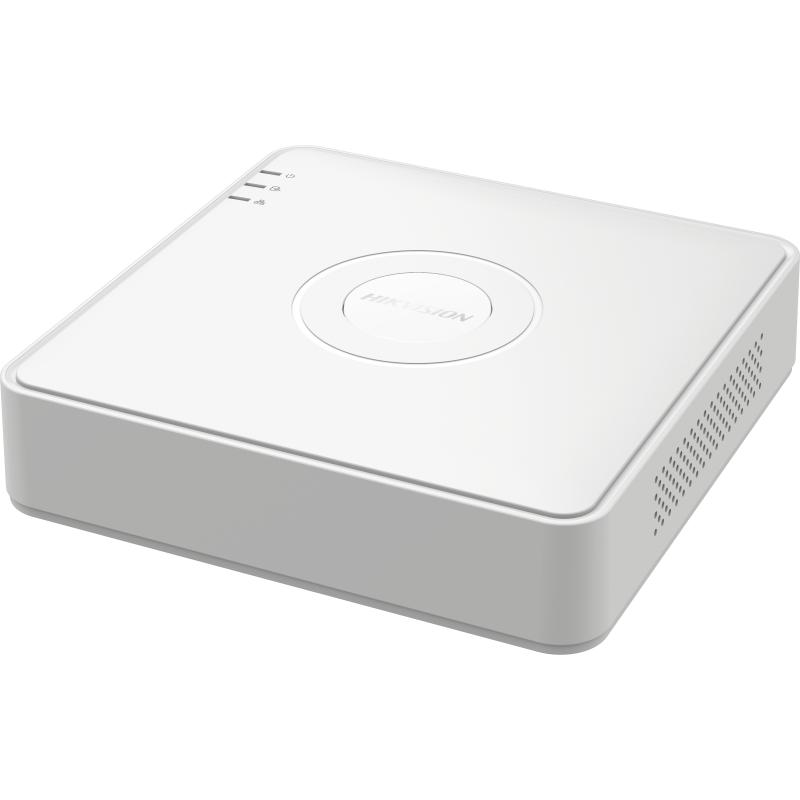

Hikvision DS-7104HGHI-M1/T 4-ch 1080p Lite Mini 1U H.265 DVR

Four Channel CCTV Surveillance

The Hikvision DS-7104HGHI-M1/T supports four analogue CCTV cameras through its BNC video inputs, allowing users to monitor multiple areas from a single recording system. It is suitable for surveillance of entrances, corridors, reception areas, retail counters and residential compounds.

1080p Lite Video Recording

The DVR supports 1080p Lite encoding at up to 25/30 frames per second, depending on the video standard. This recording mode balances image quality, storage efficiency and affordability. It is important to distinguish 1080p Lite from full-resolution 1920 × 1080 recording.

H.265 Pro+ Video Compression

Hikvision H.265 Pro+ compression helps reduce recording storage consumption compared with older video compression methods. This allows more efficient use of installed surveillance hard drives, particularly when recording continuously.

Multiple Camera Format Compatibility

The DVR supports HDTVI, AHD, HDCVI and conventional CVBS analogue cameras. It also supports compatible IP cameras, offering flexibility when upgrading existing surveillance installations.

Motion Detection 2.0

The recorder features Motion Detection 2.0 with human and vehicle classification across its four analogue channels. This helps reduce unnecessary alerts from irrelevant movement and improves the efficiency of security footage searches.

Hik-Connect Remote Monitoring

When connected to a compatible network and configured correctly, the DVR supports remote access through Hik-Connect. Authorized users can view live camera footage and review recorded video using supported mobile devices.

HDMI and VGA Display Outputs

The DVR provides HDMI and VGA outputs for connecting monitors and televisions. Users can view multiple cameras, access recordings and configure surveillance settings through the local interface.

SATA Hard Drive Storage

The recorder features one SATA interface for connecting an internal surveillance-grade hard drive. Recording duration depends on hard drive capacity, recording schedule, compression settings and connected cameras.

Compact Mini 1U Design

Its small housing allows convenient installation in residential security cabinets, offices, retail counters and other locations with limited equipment space.

Key Features

• Four BNC analogue camera inputs

• HDTVI, AHD, HDCVI, CVBS and IP camera compatibility

• Up to five IP camera inputs in supported configurations

• 1080p Lite recording at up to 25/30fps

• H.265 Pro+, H.265 Pro and H.265 compression

• Motion Detection 2.0 with human and vehicle classification

• HDTVI two-way audio support with compatible cameras

• Audio over coaxial cable

• HDMI and VGA simultaneous video output

• One SATA interface supporting up to 4TB

• Four-channel synchronous playback

• Hik-Connect remote monitoring

• Two USB 2.0 ports

• Compact Mini 1U housing

Technical Specifications

Recommended Applications

The Hikvision DS-7104HGHI-M1/T is suitable for residential CCTV installations, offices, retail shops, pharmacies, salons, restaurants, reception areas, small warehouses and other premises requiring four-camera surveillance recording.
