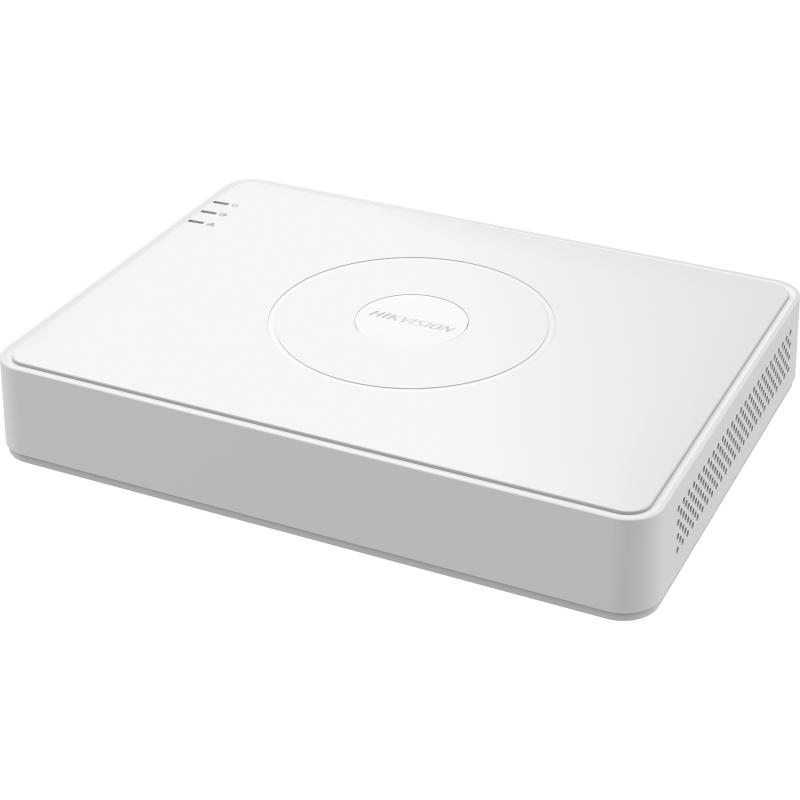

Hikvision DS-7116HGHI-M1/T 16ch 1080p Lite Mini 1U H.265 DVR
Original price was: KSh 14,000.00.KSh 12,500.00Current price is: KSh 12,500.00. EXCL. VAT
Hikvision DS-7116HGHI-M1/T 16ch 1080p Lite Mini 1U H.265 DVR
The Hikvision DS-7116HGHI-M1/T 16-Channel 1080p Lite DVR is a compact Turbo HD digital video recorder designed for residential, commercial and institutional CCTV surveillance systems.
Featuring 16 analogue camera inputs, 1080p Lite recording, H.265 Pro+ video compression and multi-format camera compatibility, this DVR provides a cost-effective solution for managing security footage across multiple locations.
Hikvision DS-7116HGHI-M1/T 16ch 1080p Lite Mini 1U H.265 DVR
16-Channel CCTV Surveillance
The Hikvision DS-7116HGHI-M1/T supports up to 16 analogue CCTV cameras through its BNC video inputs. This allows security personnel to monitor multiple entrances, corridors, offices, retail counters, parking areas and building perimeters using a single recording system.
1080p Lite Video Recording
The recorder supports 1080p Lite encoding, providing a practical balance between surveillance image quality and recording storage requirements. 1080p Lite uses a reduced horizontal recording resolution compared with full 1920 × 1080 Full HD.
H.265 Pro+ Video Compression
Hikvision H.265 Pro+ compression helps reduce video storage consumption and network bandwidth requirements compared with older compression technologies. This is particularly beneficial for 16-channel CCTV systems where multiple cameras may record continuously.
Multi-Format Camera Compatibility
The DVR supports HDTVI, AHD, HDCVI and conventional CVBS analogue camera formats. This flexibility makes it useful for upgrading existing surveillance systems while retaining compatible cameras and coaxial cabling.
Motion Detection 2.0
Motion Detection 2.0 helps distinguish human and vehicle movement from other activity. This improves event-based recording and reduces unnecessary alerts caused by irrelevant motion.
HDMI and VGA Display Outputs
The DVR provides HDMI and VGA connections for compatible monitors and televisions. Users can view live camera feeds, access recorded footage and configure surveillance settings through the local interface.
Hik-Connect Remote Monitoring
When connected to the internet and configured correctly, the DVR supports remote monitoring through Hik-Connect. Authorized users can view live footage and review recordings using compatible mobile devices.
Internal SATA Hard Drive Storage
The recorder includes an internal SATA interface for installing a surveillance-grade hard drive. Recording duration depends on the installed hard drive, compression settings, video quality and recording schedule.
Compact Mini 1U Design
The space saving Mini 1U chassis makes the recorder suitable for installations where equipment space is limited, including offices, retail premises and security monitoring stations.
Key Features
- 16 BNC analogue camera inputs
- HDTVI, AHD, HDCVI, CVBS and IP camera compatibility
- Two additional IP camera channels by default
- Up to 18 IP camera channels in supported configurations
- IP camera resolution support up to 5MP
- H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression
- 1080p Lite recording at up to 15fps
- Motion Detection 2.0 with human and vehicle classification
- Audio over coaxial cable with compatible cameras
- Two-way audio support through an external audio interface
- HDMI and VGA simultaneous display outputs
- 16-channel synchronous playback
- One SATA hard drive interface supporting up to 6TB
- Hik-Connect remote monitoring
- Two USB 2.0 ports
- Compact Mini 1U housing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Model | DS-7116HGHI-M1/T |
| Product Type | Turbo HD Digital Video Recorder |
| Analogue Camera Channels | 16 |
| Analogue Video Inputs | 16 × BNC |
| Supported Analogue Formats | HDTVI, AHD, HDCVI, CVBS |
| IP Camera Inputs | 2 by default, up to 18 in supported configurations |
| Maximum IP Camera Resolution | 5MP |
| Encoding Resolution | 1080p Lite, 720p, 720p Lite, WD1, 4CIF, VGA, CIF, depending on input |
| 1080p Lite Frame Rate | Up to 15fps |
| SD Recording Frame Rate | 25fps PAL / 30fps NTSC |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Smart Detection | Motion Detection 2.0 |
| Human/Vehicle Classification | All 16 analogue channels |
| HDMI Output | 1 × HDMI, up to 1920 × 1080 |
| VGA Output | 1 × VGA, up to 1920 × 1080 |
| Display Mode | Simultaneous HDMI/VGA |
| Audio Input | 1 × RCA; up to 16 channels via coaxial cable |
| Audio Output | 1 × RCA |
| Two-Way Audio | Supported through RCA, sharing the first audio input |
| Synchronous Playback | 16 channels |
| Hard Drive Interface | 1 × SATA |
| Maximum HDD Capacity | 6TB |
| Network Interface | 1 × RJ45 10/100Mbps |
| Total Network Bandwidth | 96Mbps |
| Remote Connections | Up to 128 |
| USB Interfaces | 2 × USB 2.0 |
| Power Supply | 12V DC, 1.6A |
| Power Consumption | ≤7W without HDD |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 285 × 210 × 48mm |
| Weight | ≤1.8kg without HDD |
| Housing | Mini 1U |
Recommended Applications
The Hikvision DS-7116HGHI-M1/T is suitable for supermarkets, offices, schools, apartment buildings, hotels, warehouses, restaurants, retail stores, clinics, commercial compounds and other premises requiring centralized surveillance recording across multiple cameras. It is also useful for upgrading existing analogue CCTV systems while retaining compatible cameras and coaxial cabling.
