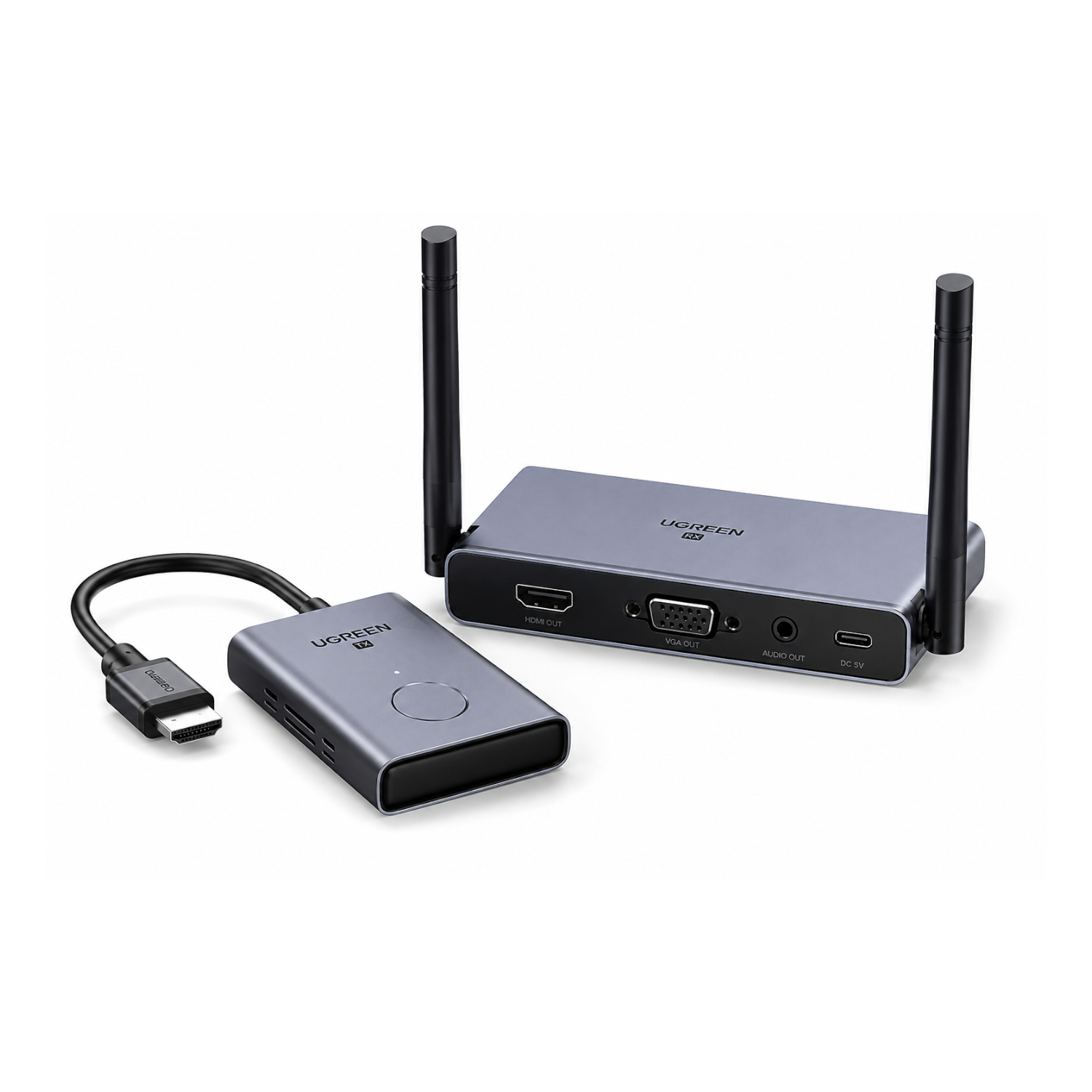

UGREEN CM506 Wireless HDMI Transmitter and Receiver 50M

The UGREEN CM506 Wireless HDMI Transmitter and Receiver provides a convenient way to connect an HDMI source to a distant display without installing a long HDMI cable. The kit uses two main components: a transmitter (TX) connected to your source device and a receiver (RX) connected to the display. The transmitter sends the video and audio signal wirelessly to the receiver.

A typical installation is: Laptop → CM506 Transmitter → Wireless Connection → CM506 Receiver → TV/Projector. This arrangement makes the CM506 particularly useful where running an HDMI cable across a room, through a ceiling or along a wall would be inconvenient.

Full HD 1080P Display

The CM506 supports Full HD 1920 × 1080 video, providing clear picture quality for presentations, videos, training materials and general multimedia content. It works well for applications where Full HD resolution is sufficient, including office presentations and classroom projection.

Up to 50 Metres Wireless Range

The UGREEN CM506 provides wireless HDMI transmission over distances of up to approximately: 50 metres / 164 feet. This maximum distance applies to an open, unobstructed environment. Walls, doors, reinforced concrete, metal structures and nearby wireless equipment can reduce the effective operating range. Therefore, actual indoor performance will depend on the installation environment.

Wireless Video and Audio

HDMI carries both video and digital audio. The CM506 therefore sends compatible picture and sound wirelessly between the transmitter and receiver. This eliminates the need to install a separate audio cable between the source and display in a normal HDMI setup.

Plug and Play Operation

The CM506 is designed for simple installation. Once you connect and power the transmitter and receiver, the units establish the wireless connection without requiring complicated network configuration. This makes it useful in environments where different users frequently connect laptops for presentations.

No Long HDMI Cable Required

A conventional installation might require a 10m, 20m or even longer HDMI cable between the presentation table and display. The CM506 replaces that long connection with a wireless link.

For example, in a boardroom with a wall-mounted TV:

Presentation Laptop → TX

Wireless connection across room

RX → Wall-Mounted TV

This provides a cleaner installation and reduces the amount of cabling around the presentation area.

No Internet Connection Required

The transmitter and receiver communicate directly with each other. An internet connection is therefore not required simply to transmit the HDMI signal. It is also different from internet-based screen-casting devices. The CM506 primarily acts as a wireless replacement for the HDMI connection between the source and display.

Key Features

• UGREEN wireless HDMI solution
• Model: CM506
• Transmitter and receiver included
• Wireless HDMI video transmission
• Wireless HDMI audio transmission
• Full HD 1080P support
• Up to 50m / 164ft transmission range
• Designed for open-space wireless transmission
• Plug-and-play operation
• No long HDMI cable required
• No internet required for HDMI transmission
• Suitable for laptops and PCs with compatible HDMI output
• Works with HDMI-equipped TVs
• Works with HDMI monitors
• Works with HDMI projectors
• Suitable for presentations
• Ideal for classrooms and training rooms
• Suitable for conference rooms and boardrooms
• Compact and portable design

Technical Specifications

Suitable Source Devices

The CM506 can be used with compatible HDMI source equipment such as desktop PCs, laptops, media players, set-top boxes and other devices with suitable HDMI output, subject to content-protection compatibility.

Suitable Display Devices

The receiver can connect to compatible:

• TVs
• Computer monitors
• Projectors
• Interactive displays
• Large-format commercial displays

The display needs a suitable HDMI input.

Ideal for Meeting Rooms

The CM506 is particularly useful for conference rooms. Instead of having an HDMI cable running from a wall-mounted display to the meeting table, the receiver can remain near the display while users connect the transmitter at the presentation position. This provides a cleaner and more flexible presentation setup.

Ideal for Classrooms

The same approach works well with ceiling or wall-mounted projectors. A teacher or presenter can connect the transmitter to a compatible laptop while the receiver remains connected to the projector. This reduces the need for a long HDMI cable running across the classroom.
