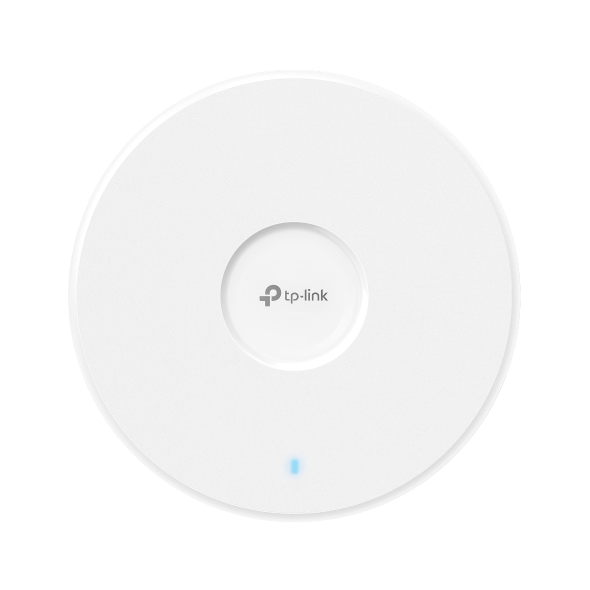

Tp-links BE9300 Indoor/Outdoor Wi-Fi 7 Access Point EAP772

The TP-Link Omada EAP772-Outdoor BE9300 Indoor/Outdoor Wi-Fi 7 Access Point provides next-generation wireless connectivity for businesses that require high speeds, wide coverage, and reliable performance. With tri-band Wi-Fi 7 and six spatial streams, it delivers combined wireless speeds of up to 9.3 Gbps.

Next-Generation BE9300 Wi-Fi 7

The EAP772-Outdoor operates across the 2.4 GHz, 5 GHz, and 6 GHz bands. Its combined wireless throughput reaches approximately 9.3 Gbps, providing the capacity needed for demanding business applications and many connected devices.

Wi-Fi 7 technologies also improve network efficiency. Features such as 320 MHz channel bandwidth, Multi-Link Operation (MLO), 4K-QAM, Multi-RU, and Preamble Puncturing help increase throughput while reducing congestion and latency.

Tri-Band Indoor and Outdoor Coverage

Unlike standard indoor access points, the EAP772-Outdoor uses an IP68-rated weatherproof enclosure. Therefore, businesses can deploy it in demanding outdoor environments where protection against dust and water is important.

TP-Link recommends coverage of up to approximately 300 m² (3,200 ft²) under its specified test conditions. This makes the access point suitable for hotels, business compounds, yards, farms, warehouses, schools, recreational areas, and other large spaces.

2.5 Gigabit PoE+ Connectivity

A built-in 2.5 Gigabit Ethernet PoE port provides a high-speed wired connection to the network. As a result, the Ethernet connection is better equipped to handle the higher throughput offered by Wi-Fi 7.

In addition, 802.3at PoE+ support allows network data and electrical power to travel through a single Ethernet cable. This simplifies installation, especially when deploying access points away from standard power outlets.

Designed for High-Density Networks

The TP-Link EAP772-Outdoor is suitable for networks with many simultaneous wireless devices. Its Wi-Fi 7 architecture improves network capacity and helps maintain stable connections in busy environments.

It can therefore support applications such as:

• Offices and business compounds
• Hotels and hospitality facilities
• Schools and campuses
• Warehouses and industrial sites
• Farms and large properties
• Outdoor recreational areas
• High-density public Wi-Fi networks

Omada SDN Centralized Management

The EAP772-Outdoor integrates with the TP-Link Omada SDN platform for centralized network management. Administrators can manage compatible access points, switches, and gateways from one interface.

It also supports Omada Mesh and seamless roaming, helping businesses build larger wireless networks while allowing compatible devices to move between access points with minimal interruption.

Key Features

• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Wireless Class: BE9300
• Bands: 2.4 GHz + 5 GHz + 6 GHz
• Combined Speed: Up to approximately 9.3 Gbps
• Spatial Streams: 6
• Channel Width: Up to 320 MHz
• Ethernet: 1 × 2.5 Gigabit PoE port
• Power: 802.3at PoE+
• Wi-Fi 7 Technologies: MLO, Multi-RU, 4K-QAM and Preamble Puncturing
• Weather Protection: IP68
• Management: Omada SDN centralized management
• Networking: Omada Mesh and seamless roaming
• Installation: Wall or pole mounting
• Application: Indoor and outdoor business Wi-Fi deployments

The TP-Link Omada EAP772-Outdoor BE9300 Wi-Fi 7 Access Point is an excellent solution for organizations upgrading to high-capacity Wi-Fi 7. It combines tri-band performance, 2.5G connectivity, outdoor durability, centralized management, and modern Wi-Fi technology in one professional access point.
