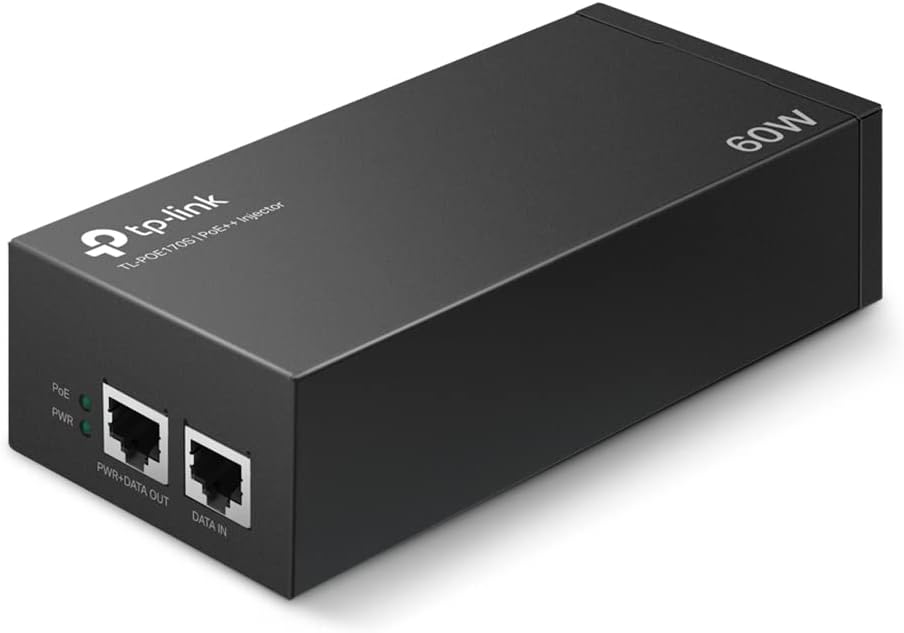

TP-Link POE170S Omada PoE++ Injector POE170S

The TP-Link POE170S Omada PoE++ Injector provides a simple and reliable way to add PoE++ power to an existing network. It combines electrical power and Gigabit Ethernet data over a single network cable, reducing the need to install separate electrical outlets near compatible network devices.

Up to 60W PoE++ Power

The POE170S supports IEEE 802.3af, 802.3at and 802.3bt PoE standards and can supply up to 60W of power. Therefore, it can support higher-power PoE devices that require more power than standard PoE or PoE+ can provide.

This makes it suitable for compatible wireless access points, PTZ IP cameras and other PoE-powered network equipment.

Gigabit Ethernet Connectivity

The TP-Link POE170S features two Gigabit Ethernet interfaces:

• 1 × 10/100/1000 Mbps RJ45 Data-In port
• 1 × 10/100/1000 Mbps RJ45 Power + Data-Out port

As a result, the injector provides Gigabit network connectivity while simultaneously supplying power to the connected PoE device.

Automatic Power Detection

An intelligent auto-sensing system detects compatible 802.3af/at/bt powered devices and determines their power requirements automatically. This simplifies installation and helps ensure that the connected device receives the appropriate amount of power.

Plug-and-Play Installation

The TP-Link POE170S PoE++ Injector requires no software configuration. Simply connect your network switch or router to the Data-In port. Then, connect the compatible PoE device to the Power + Data-Out port.

The injector supports both desktop and wall-mounted installation, allowing greater flexibility when setting up a network.

Durable and Practical Design

TP-Link uses a durable metal enclosure for the POE170S. Its compact design measures approximately 155 × 70 × 42 mm, making it easy to integrate into offices, network cabinets and other professional installations.

Key Features

• Model: TP-Link POE170S
• PoE Standard: IEEE 802.3af/at/bt
• Maximum PoE Output: Up to 60W
• Network Speed: Up to 1 Gbps
• Data Input: 1 × Gigabit RJ45 port
• PoE Output: 1 × Gigabit RJ45 Power + Data port
• Power Input: 100–240V AC, 50/60Hz
• Installation: Desktop or wall mount
• Setup: Plug and Play
• Power Detection: Automatic
• Construction: Durable metal casing
• Maximum Ethernet Distance: Up to 100 metres with appropriate cabling
• Applications: Compatible access points, IP cameras and other IEEE-standard PoE devices

The TP-Link POE170S Omada PoE++ Injector is an excellent choice when a network switch does not provide PoE++ or when you need to power a single high-power PoE device. With 60W output, Gigabit connectivity and IEEE 802.3bt support, it offers a straightforward way to add high-power PoE capability to an existing network.

Important: The POE170S is designed for standard IEEE 802.3af/at/bt PoE devices and is not compatible with Passive PoE or other non-standard PoE equipment.
