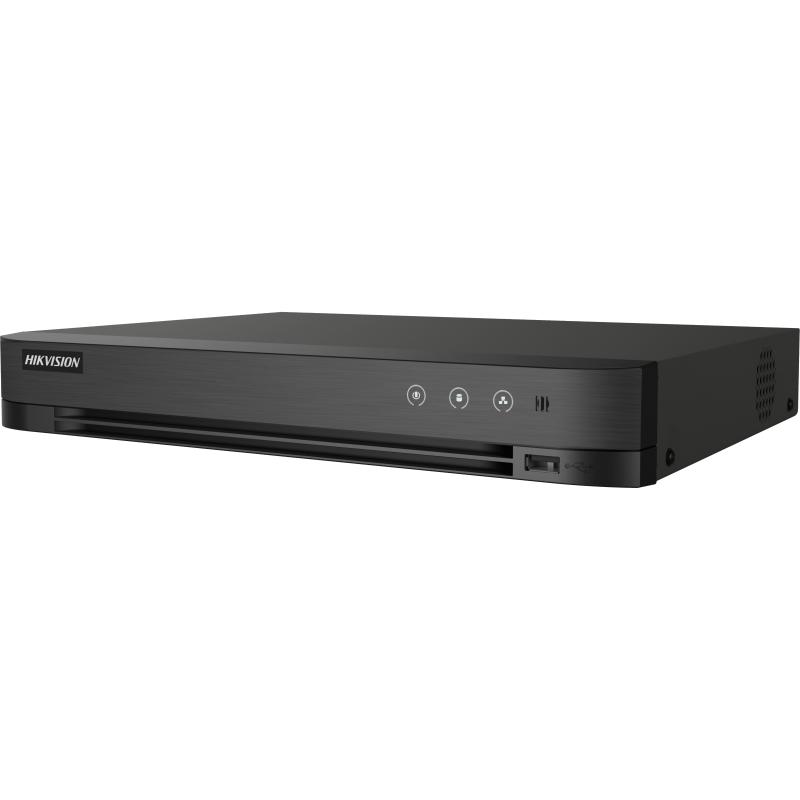

Hikvision IDS-7204HQHI-M1/XT 4ch 1080p 1U AcuSense DVR
4 Channel CCTV Surveillance
The Hikvision iDS-7204HQHI-M1/XT provides four BNC camera inputs for monitoring entrances, offices, reception areas, retail counters, parking spaces and residential compounds. It is designed to work with compatible analogue CCTV cameras and supports hybrid surveillance configurations.
1080p HD Video Recording
The recorder supports 1080p video encoding with compatible cameras, helping capture detailed footage for everyday security monitoring. Recording frame rates depend on the selected resolution, camera format and operating mode.
Hikvision AcuSense Intelligent Detection
AcuSense technology uses deep learning algorithms to distinguish people and vehicles from other moving objects. This helps reduce unnecessary motion alerts and makes it easier to locate relevant security events.
Efficient H.265 Video Compression
The DVR supports H.265-family video compression, helping optimize hard drive usage during continuous and scheduled CCTV recording.
Multi-Format Camera Compatibility
The recorder supports compatible HDTVI, AHD, HDCVI and CVBS cameras, allowing users to retain existing coaxial CCTV infrastructure when upgrading a surveillance system.
HDMI and VGA Display Outputs
HDMI and VGA connections allow users to connect a compatible monitor for live camera viewing, video playback and recorder configuration.
Hik-Connect Remote Monitoring
With a properly configured internet connection, authorized users can access supported live video and recorded footage remotely through Hik-Connect.
Internal Hard Drive Storage
The DVR uses an internal SATA hard drive for video storage. Recording duration depends on the installed drive, camera settings, compression format and recording schedule.
Facial Recognition and Intelligent Perimeter Protection
The iDS-7204HQHI-M1/XT supports advanced security analytics, including one channel facial recognition or two channel perimeter protection using deep learning technology. Perimeter protection helps identify line crossing and intrusion events involving people and vehicles. These advanced functions operate within the recorder’s supported channel and mode limits.
AcuSearch Smart Video Search
AcuSearch technology helps operators locate footage containing relevant people or vehicles more efficiently than reviewing long periods of continuous video.
Key Features
- Four analogue CCTV camera inputs
- Hikvision AcuSense deep-learning technology
- Motion Detection 2.0 on all four analogue channels
- One channel facial recognition
- Two channel advanced perimeter protection
- Two channel AcuSearch
- 1080p recording at up to 15fps
- Up to 3K/5MP Lite recording at 12fps
- H.265 Pro+ video compression
- HDTVI, AHD, HDCVI, CVBS and IP camera compatibility
- Up to six IP camera channels in supported configurations
- Two way audio over compatible HDTVI cameras
- HDMI and VGA display outputs
- One SATA hard drive interface supporting up to 10TB
- Hik-Connect remote monitoring
- Compact 1U housing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Model | iDS-7204HQHI-M1/XT |
| Product Type | AcuSense Turbo HD DVR |
| Analogue Camera Channels | 4 |
| Analogue Video Inputs | 4 × BNC |
| Camera Compatibility | HDTVI, AHD, HDCVI, CVBS, IP |
| IP Camera Inputs | 2 by default, up to 6 in supported configurations |
| Maximum IP Camera Resolution | 6MP |
| Recording Resolution | 3K Lite, 5MP Lite, 4MP Lite, 1080p, 720p and lower resolutions |
| 1080p Frame Rate | Up to 15fps |
| 3K/5MP Lite Frame Rate | Up to 12fps |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Motion Detection 2.0 | 4 analogue channels |
| Perimeter Protection | Up to 2 channels |
| Facial Recognition | 1 channel |
| AcuSearch | 2 channels, per February 2025 datasheet |
| HDMI Output | 1 × HDMI, up to 1920 × 1080 |
| VGA Output | 1 × VGA, up to 1920 × 1080 |
| Audio Input | RCA and compatible audio over coax |
| Audio Output | 1 × RCA |
| Two-Way Audio | Supported with compatible equipment |
| Synchronous Playback | 4 channels |
| HDD Interface | 1 × SATA |
| Maximum HDD Capacity | 10TB |
| Network Interface | 1 × RJ45 10/100Mbps |
| Network Bandwidth | 72Mbps total |
| USB Interfaces | 2 × USB 2.0 |
| Power Supply | 12V DC |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 319 × 236 × 48mm |
| Housing | 1U |
Recommended Applications
The Hikvision iDS-7204HQHI-M1/XT is suitable for residential security, retail shops, pharmacies, office receptions, restaurants, small warehouses, clinics and business premises requiring intelligent four-camera CCTV monitoring.
Its AcuSearch, facial recognition and perimeter protection capabilities are particularly useful for installations where faster incident investigation and targeted security event detection are important.
