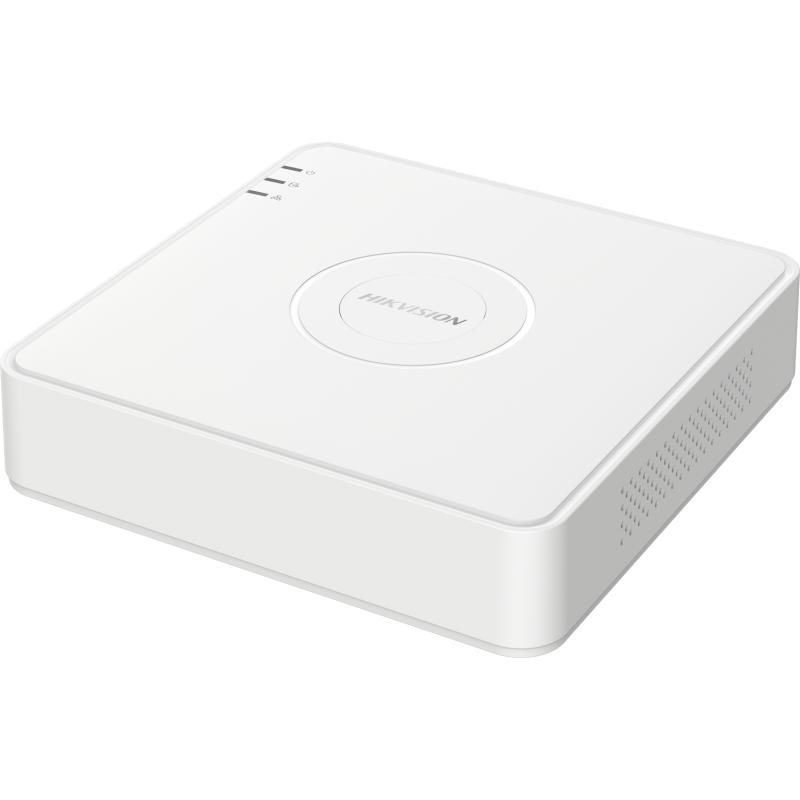

Hikvsion IDS-7108HQHI-M1/S 8ch 1080P Mini 1U AcuSense DVR

8 Channel CCTV Surveillance

The Hikvision iDS-7108HQHI-M1/S supports eight analogue CCTV cameras, allowing users to monitor multiple locations from one centralized recording system. It is suitable for surveillance of entrances, corridors, reception areas, parking spaces, retail counters and building perimeters.

1080p HD Video Recording

The recorder supports 1080p recording with compatible CCTV cameras, providing clear surveillance footage for security monitoring and incident investigation. Recording resolution and frame rate depend on the connected camera format and selected operating mode.

Hikvision AcuSense Intelligent Detection

Hikvision AcuSense technology uses deep-learning algorithms to distinguish human and vehicle activity from irrelevant movement. This helps reduce unnecessary alerts caused by environmental activity, making it easier to identify important security events.

H.265 Pro+ Video Compression

H.265 Pro+ compression technology helps reduce recording storage requirements while maintaining useful video quality. This is particularly beneficial for eight camera installations using continuous or scheduled recording.

Multi Format Camera Compatibility

The DVR supports HDTVI, AHD, HDCVI and conventional CVBS analogue cameras. This makes it suitable for upgrading existing CCTV installations while retaining compatible cameras and coaxial cabling.

HDMI and VGA Display Outputs

The recorder includes HDMI and VGA interfaces for connecting compatible monitors and televisions. Users can view live footage, review recordings and configure security settings through the local interface.

Hik-Connect Remote Monitoring

With a properly configured network connection, authorized users can access live footage and recorded video through Hik-Connect on compatible smartphones and other supported devices.

Internal SATA Hard Drive Storage

The DVR includes an internal SATA interface for installing a compatible surveillance grade hard drive. Recording duration depends on the installed storage capacity, video compression settings, camera resolution and recording schedule.

Compact Mini 1U Design

Its space saving Mini 1U housing is suitable for installation in offices, security cabinets, retail premises and other locations where equipment space is limited.

Intelligent Perimeter Protection

The iDS-7108HQHI-M1/S supports deep learning based perimeter protection for line crossing and intrusion detection, with human and vehicle classification on up to four channels.

Key Features

• 8 analogue BNC CCTV camera inputs

• Hikvision AcuSense intelligent detection

• Motion Detection 2.0 on all 8 analogue channels

• Up to 4 channels of intelligent perimeter protection

• Human and vehicle classification

• 1080p recording at up to 15fps

• 3K/5MP Lite recording at up to 12fps

• H.265 Pro+, H.265 Pro and H.265 video compression

• HDTVI, AHD, HDCVI, CVBS and IP camera compatibility

• Up to 12 IP camera channels in enhanced IP mode

• IP camera resolution up to 6MP

• Audio transmission over compatible coaxial cameras

• HDMI and VGA simultaneous display outputs

• 8-channel synchronous playback

• One SATA interface supporting up to 10TB

• Hik-Connect remote monitoring

• Compact Mini 1U housing

Technical Specifications

Recommended Applications

The Hikvision iDS-7108HQHI-M1/S is suitable for residential compounds, supermarkets, offices, schools, pharmacies, retail shops, warehouses, restaurants, apartment buildings and small commercial facilities.

Its AcuSense detection features are particularly useful for properties where identifying human and vehicle movement is more important than receiving alerts for every moving object.
