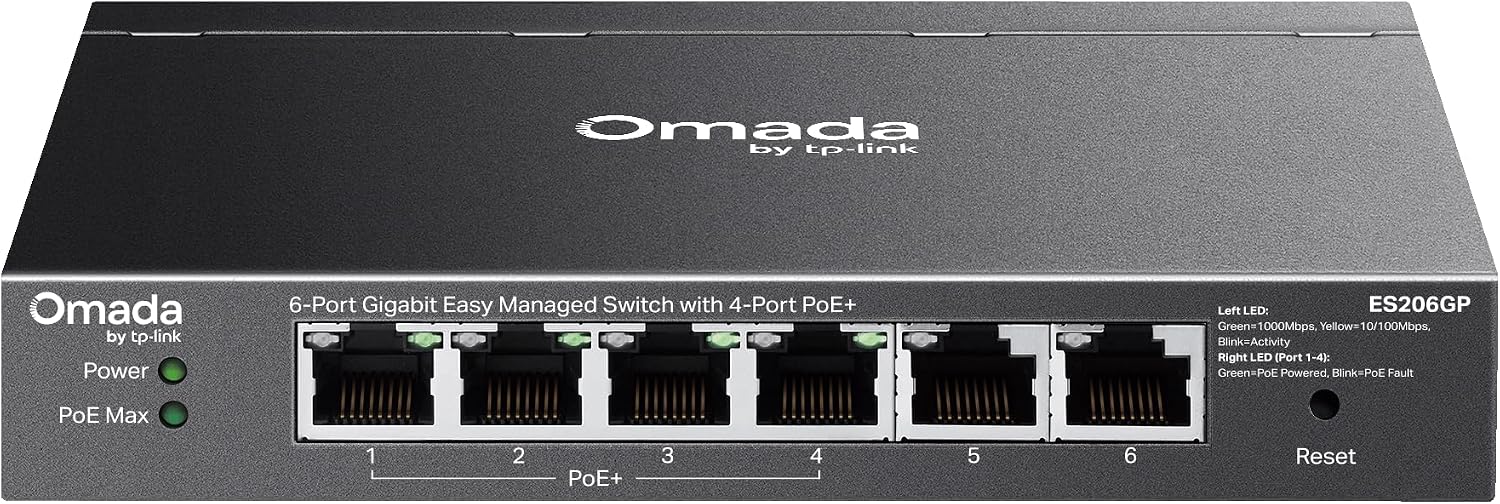

TP-Link Omada ES206GP 6-Port Gigabit PoE+ Switch

The TP-Link Omada ES206GP 6-Port Gigabit PoE+ Switch provides reliable network connectivity and PoE power for small business and surveillance installations. It combines Gigabit Ethernet, intelligent PoE management, and Omada centralized control in a compact design.

4 Gigabit PoE+ Ports

The TP-Link ES206GP features 6 Gigabit Ethernet ports, with 4 ports supporting PoE+. Therefore, you can connect and power compatible devices using a single Ethernet cable.

The PoE+ ports support IEEE 802.3af/at standards and can deliver up to 30W per port. In addition, the switch provides a total 65W PoE power budget.

This makes it suitable for powering devices such as:

• IP surveillance cameras
• Omada wireless access points
• VoIP phones
• IP intercom systems
• Other PoE-enabled network devices

Easy Omada Network Management

The TP-Link Omada ES206GP supports centralized management through the Omada platform. As a result, network administrators can manage compatible switches, access points, and gateways from one interface.

This feature is particularly useful for offices, shops, schools, hotels, and other businesses that need simple network monitoring and control.

VLAN for Better Network Control

VLAN support allows you to separate different types of network traffic. For example, you can create separate networks for CCTV cameras, office computers, wireless users, and VoIP phones.

Therefore, the ES206GP provides more control than a standard unmanaged PoE switch.

PoE Auto Recovery

PoE Auto Recovery helps maintain reliable operation of connected PoE devices. If a supported camera or access point stops responding, the switch can automatically restart its PoE power.

As a result, you can reduce the need to manually restart devices, especially in CCTV and wireless installations.

Extended PoE Transmission

The ES206GP also supports extended PoE transmission for installations where devices need to be placed farther from the switch. This makes it useful for CCTV cameras installed around compounds, offices, warehouses, shops, and other large premises.

However, extended transmission mode may reduce the network speed on the applicable ports.

QoS and IGMP Snooping

Quality of Service (QoS) helps prioritize important network traffic. Meanwhile, IGMP Snooping improves the handling of multicast traffic.

Together, these features help the switch deliver more efficient network performance when several devices operate at the same time.

Compact and Practical Design

The TP-Link ES206GP offers a compact design that works well in locations with limited installation space. It is suitable for desktops, network cabinets, CCTV installations, and other professional network environments.

Key Features

• 6 × Gigabit Ethernet ports
• 4 × PoE+ ports
• IEEE 802.3af/at PoE support
• Up to 30W PoE output per port
• 65W total PoE budget
• Omada centralized management
• VLAN support
• QoS traffic prioritization
• IGMP Snooping
• PoE Auto Recovery
• Extended PoE transmission
• Suitable for CCTV cameras and wireless access points
• Ideal for small business networks

Ideal Applications

The TP-Link Omada ES206GP is a practical choice for CCTV installations, Wi-Fi access point deployments, small offices, retail shops, schools, hotels, and VoIP networks. Its combination of Gigabit connectivity, PoE+, and Easy Managed features provides an affordable way to build a more reliable and manageable network.
