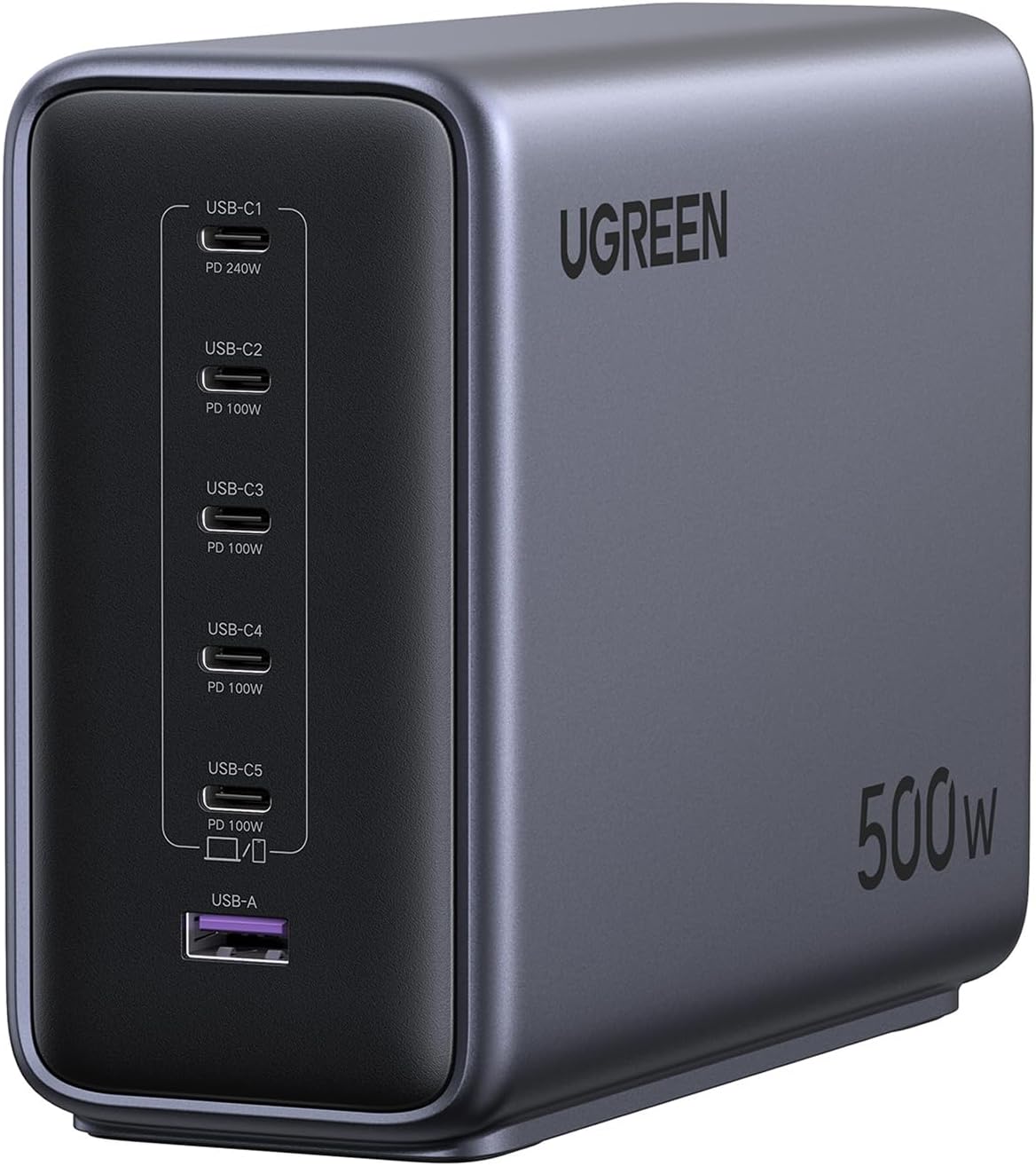

UGREEN GaN 500W Desktop Fast Charger (6-Port) UK – X759

The UGREEN X759 500W GaN Desktop Fast Charger is designed to replace several separate chargers with one powerful desktop charging station. With six charging outputs, it can simultaneously power compatible laptops, tablets, smartphones and accessories while reducing cable and adapter clutter. UGREEN describes this model as its 500W 6-port Nexode desktop charger, featuring five USB-C ports and one USB-A port.

Massive 500W Total Charging Power

The X759 delivers a maximum combined output of 500W, making it particularly useful for environments where several high power USB-C devices need to be charged at the same time.

For example, it can accommodate multiple laptops alongside a smartphone or tablet from a single charging station. Actual power distribution changes according to the number of connected devices and their charging requirements.

USB-C1 Supports up to 240W

The standout feature is the first USB-C port, which can deliver up to 240W with a compatible device and cable. USB-C1 supports output profiles extending to 48V/5A, while also supporting conventional 5V, 9V, 12V, 15V, 20V and 28V profiles. This makes the X759 significantly more powerful than typical 100W or 140W USB-C desktop chargers.

5 USB-C + 1 USB-A Ports

The official UGREEN specification lists the following individual maximum outputs:

These are individual port limits; they should not be added together to determine simultaneous output. When several devices are connected, power is intelligently distributed while the charger remains within its 500W total limit.

Charge Up to Six Devices

With six charging ports, the X759 can power up to six compatible devices simultaneously. This makes it suitable for workstations containing multiple laptops, tablets, smartphones, power banks and other USB-powered equipment. UGREEN specifically positions it for demanding home, office and studio environments.

Advanced GaN Technology

The charger uses UGREEN’s GaNInfinity technology. According to UGREEN, the design incorporates multiple GaN components to provide efficient high-power conversion while controlling heat within the relatively compact desktop enclosure.

Wide Fast Charging Protocol Support

The X759 supports several major charging standards, depending on the port, including PD 3.1, PD 3.0, PPS, QC 3.0/2.0, UFCS, SCP, FCP, AFC and BC1.2. This gives the charger broad compatibility with suitable laptops, smartphones, tablets and other USB devices.

Intelligent Temperature and Safety Protection

UGREEN incorporates multiple safety systems for protection against conditions such as over-current, over-voltage, short circuits and excessive temperature. The charger also uses temperature monitoring to manage heat during high power operation.

Features

• UGREEN GaN 500W Desktop Fast Charger is made for users who need serious charging power in one place. It combines high output, multiple ports, and a desk friendly design, so it fits demanding office, studio, and workstation setups.
• The charger includes 5 USB-C ports and 1 USB-A port. Because of this, you can charge several devices at once without relying on multiple separate chargers.
• Its 500W total output gives it the capacity to handle larger charging loads with ease. Meanwhile, the main USB-C1 port supports up to 240W, and the remaining USB-C ports support up to 100W each, while the USB-A port supports up to 20W.
• UGREEN also supports advanced charging standards such as PD 3.1, PPS, QC 3.0, SCP, AFC, and UFCS. Therefore, the charger works with a wide range of compatible laptops, tablets, phones, and accessories.
• GaN technology helps improve charging efficiency while keeping the charger more compact than many traditional high-power solutions. As a result, it is better suited to modern desks where space and heat control both matter.
• UGREEN also highlights 11 level safety protection and a V0 grade flame retardant casing. In addition, the charger includes smart temperature control for safer daily operation.
• This charger is designed for lawful, standard charging of compatible electronics. For example, it suits laptops, tablets, smartphones, handheld devices, and other supported USB powered equipment in homes, offices, and studios. This intended use wording is based on the product’s official charging role and compatibility claims.
