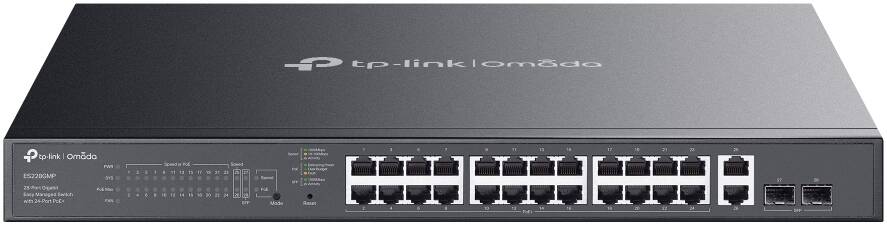

TP-Link ES228GMP 28-Port Gigabit PoE+ Switch

The TP-Link Omada ES228GMP 28-Port Gigabit Easy Managed PoE+ Switch provides high-capacity PoE power and flexible network management for professional installations. It is ideal for offices, schools, hotels, warehouses, CCTV networks, and businesses that need to connect many powered devices from one switch.

24 Gigabit PoE+ Ports

The ES228GMP provides 26 Gigabit RJ45 ports, with 24 ports supporting IEEE 802.3af/at PoE+. Each PoE+ port can supply up to 30W, while the switch offers a total 384W PoE power budget.

Therefore, the switch can power multiple compatible devices, including:

• IP surveillance cameras
• Omada wireless access points
• VoIP phones
• IP intercom systems
• Other PoE-enabled network devices

2 Gigabit SFP Slots

In addition to its RJ45 connectivity, the TP-Link ES228GMP includes 2 Gigabit SFP slots. These provide flexible fiber uplinks for connecting switches across buildings, floors, server rooms, or network cabinets.

Powerful 384W PoE Budget

With a 384W total PoE budget, the ES228GMP is well suited to installations with many PoE devices. For example, businesses can connect multiple CCTV cameras and wireless access points without using separate power adapters.

Intelligent PoE management also helps manage available power across connected devices.

Up to 250m PoE Transmission

The ES228GMP supports extended PoE transmission up to 250 metres on supported ports. This makes it particularly useful for CCTV installations where cameras may be located far from the main network cabinet.

When 250m extended transmission is enabled, the applicable port operates at up to 10 Mbps. Actual transmission distance also depends on cable quality.

Omada Centralized Management

The switch supports centralized management through the TP-Link Omada SDN platform. Administrators can manage compatible switches, access points, and gateways from a unified interface through the web or Omada app when using a supported controller.

This makes network management easier, especially for businesses operating multiple network devices or sites.

VLAN, QoS and IGMP Snooping

The ES228GMP offers useful Easy Managed networking features, including VLAN, QoS, IGMP Snooping, Port Isolation, and automatic loop prevention.

For example, VLANs can separate CCTV, Wi-Fi, VoIP, and office traffic. Meanwhile, QoS helps prioritize important network traffic.

PoE Auto Recovery

PoE Auto Recovery can help restart unresponsive PoE devices automatically in standalone mode. This feature can reduce manual intervention when an IP camera or other powered device stops responding.

Rack-Mountable Metal Design

The TP-Link ES228GMP uses a durable metal enclosure with a rack-mountable design. Therefore, it can fit neatly into professional network cabinets and server rooms.

Key Features

• 24 × Gigabit PoE+ RJ45 ports
• 2 × additional Gigabit RJ45 ports
• 2 × Gigabit SFP slots
• IEEE 802.3af/at PoE+
• Up to 30W per PoE+ port
• 384W total PoE budget
• Up to 250m extended PoE transmission
• PoE Auto Recovery
• Omada centralized management
• VLAN support
• QoS traffic management
• IGMP Snooping
• Port Isolation
• Automatic Loop Prevention
• Durable metal enclosure
• Rack-mountable design

Ideal Applications

The TP-Link Omada ES228GMP is an excellent choice for large CCTV installations, business Wi-Fi networks, schools, hotels, offices, warehouses, retail premises, and VoIP deployments.

Its combination of 24 PoE+ ports, a 384W PoE budget, fiber uplinks, and Omada management makes it especially suitable for networks that require many powered devices and centralized control.
