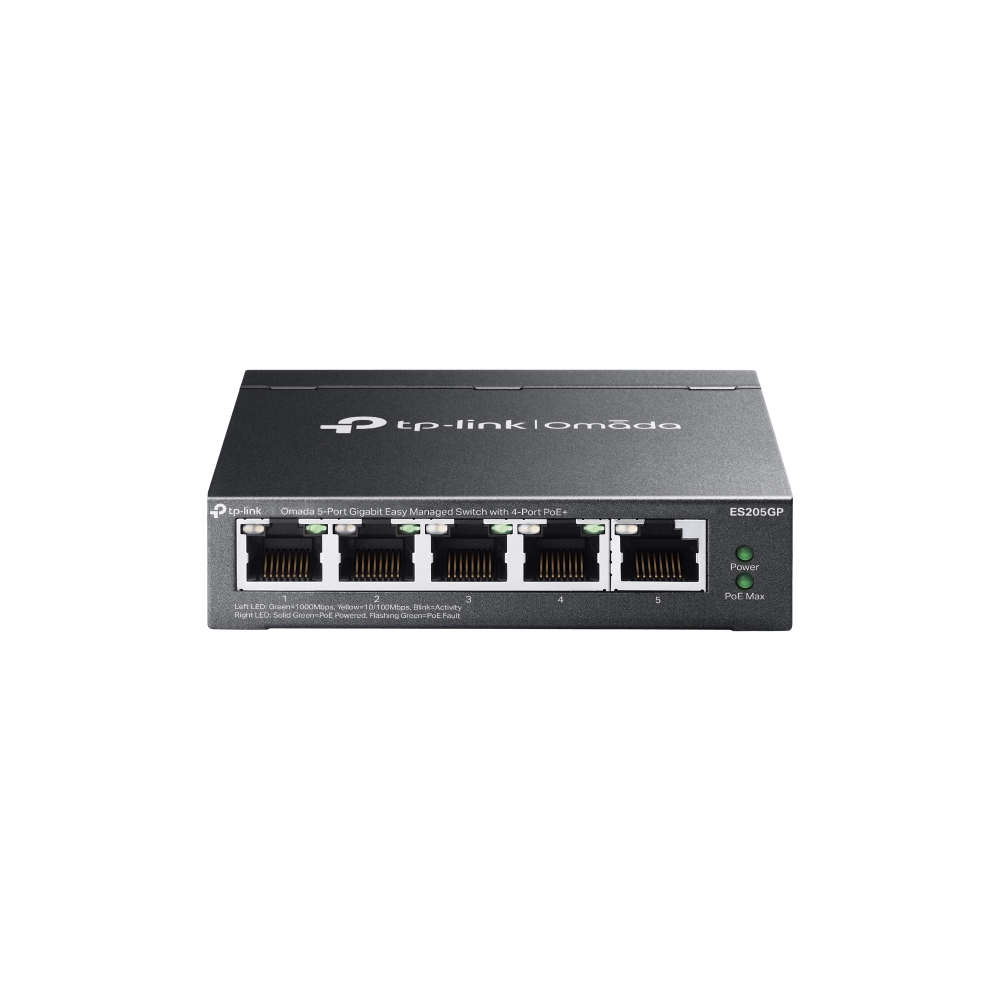

Tp-link Omada 5-Port Gigabit Managed PoE+Switch ES205GP

The TP-Link Omada ES205GP is a compact 5-port Gigabit Easy Managed PoE+ switch designed for small business, surveillance, and Wi-Fi networks. It combines Gigabit connectivity, PoE+ power, and useful network management features in a durable metal enclosure.

The switch provides 5 × 10/100/1000 Mbps Gigabit RJ45 ports. Ports 1–4 support IEEE 802.3af/at PoE+, allowing the switch to carry network data and electrical power over the same Ethernet cable.

4 Gigabit PoE+ Ports

The ES205GP provides 4 PoE+ ports, with each port supporting up to 30W. In addition, the switch offers a total PoE power budget of 65W.

Therefore, you can use it to power compatible devices such as:

• IP surveillance cameras
• Omada wireless access points
• VoIP phones
• PoE intercom systems
• Other IEEE 802.3af/at devices

This reduces the need for separate power adapters and makes installation cleaner.

Up to 250m PoE Transmission

For surveillance installations, the TP-Link ES205GP supports PoE transmission distances of up to 250 metres on supported ports. This feature can help when installing cameras farther away from the network switch.

However, when extended PoE mode is used for distances up to 250m, the applicable port speed is reduced to 10 Mbps. Actual distance can also vary depending on cable quality.

PoE Auto Recovery

The PoE Auto Recovery feature helps improve network reliability. If a connected PoE device becomes unresponsive, the switch can automatically restart its PoE power under supported operating modes.

This feature is especially useful for IP camera and access point installations, where manually restarting devices may be inconvenient.

Omada Centralized Management

The TP-Link ES205GP integrates with the Omada management platform. Therefore, administrators can centrally manage compatible switches, access points, and gateways through a unified interface.

Management is available through the web or Omada app when used with a supported Omada Controller.

VLAN, QoS and Network Management

Unlike a basic unmanaged switch, the ES205GP provides useful network control features. These include VLAN, QoS, IGMP Snooping, Port Isolation, Loop Prevention, bandwidth control, port mirroring, and link aggregation.

For example, VLAN support can separate CCTV traffic from the main office network. Meanwhile, QoS helps prioritize important network traffic.

Fanless and Compact Design

The ES205GP uses a fanless design, which allows it to operate quietly. Its compact metal casing measures approximately 99.8 × 97.8 × 25 mm and supports desktop or wall-mounted installation.

Therefore, the switch fits well in small offices, CCTV cabinets, reception areas, shops, and other locations where space may be limited.

Key Specifications

Why Choose the TP-Link ES205GP?

The TP-Link Omada ES205GP is a good choice when you need a small managed switch that can also power network devices. Its 4 PoE+ ports and 65W budget make it particularly suitable for small CCTV and wireless network deployments.

Furthermore, Omada management, VLAN, QoS, PoE Auto Recovery, and extended PoE provide more control and reliability than a standard unmanaged PoE switch.
