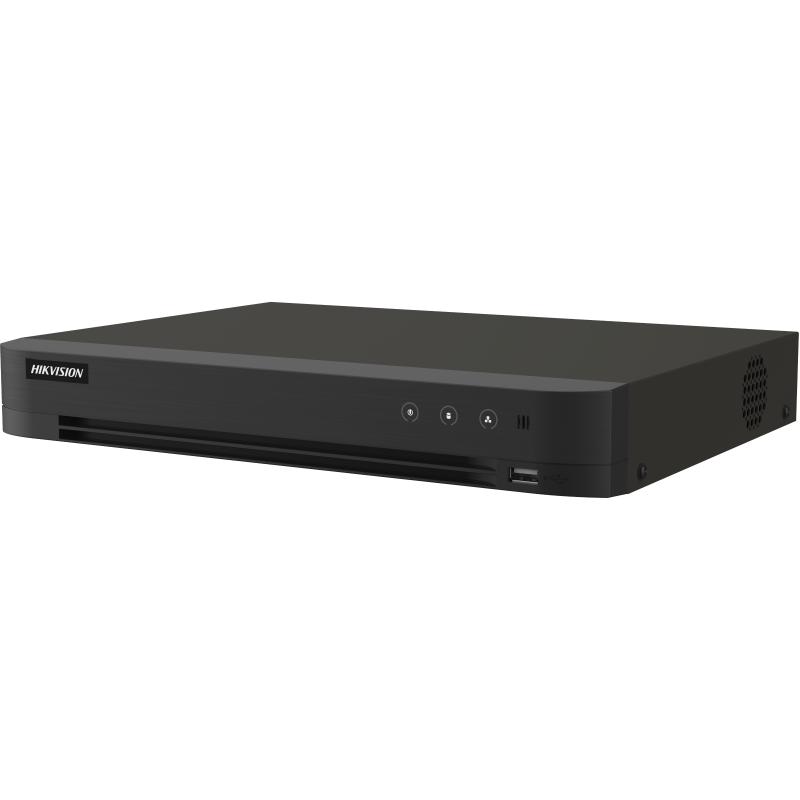

Hikvision IDS-7216HQHI-M1/XT 16ch 1080p AcuSense DVR

16 Channel CCTV Surveillance

The Hikvision iDS-7216HQHI-M1/XT provides 16 BNC inputs for connecting compatible analogue CCTV cameras. This allows businesses and property owners to monitor multiple locations, including entrances, corridors, parking areas, retail counters, warehouses, reception areas and building perimeters, through one centralized recording system.

1080p HD Video Recording

The recorder supports 1080p video encoding with compatible CCTV cameras, providing useful image detail for everyday surveillance and security investigations.

It also supports higher-resolution Lite recording modes, depending on the connected cameras and recording configuration.

Hikvision AcuSense Intelligent Detection

Hikvision AcuSense technology uses deep learning algorithms to distinguish human and vehicle movement from other activity. This helps reduce unnecessary alerts triggered by environmental movement and makes it easier to locate important security events.

Intelligent Perimeter Protection

The DVR supports intelligent perimeter protection, including line crossing and intrusion detection with human and vehicle classification. These functions are particularly useful for monitoring restricted areas, loading zones, entrances and property boundaries.

Facial Recognition

Facial recognition capabilities support face-based security event management and investigation in compatible operating modes. This can assist security personnel in reviewing events at entrances, reception areas and other monitored locations.

AcuSearch Smart Video Search

Hikvision AcuSearch helps users find relevant footage involving people and vehicles without manually reviewing long periods of continuous recordings. This is useful for commercial surveillance systems where fast incident investigation is important.

H.265 Pro+ Video Compression

H.265 Pro+ compression technology helps reduce storage consumption compared with older video encoding formats while maintaining useful surveillance image quality. This is beneficial for 16 camera systems configured for continuous or scheduled recording.

Multi Format Camera Compatibility

The DVR supports compatible HDTVI, AHD, HDCVI and CVBS analogue cameras, making it suitable for upgrading existing CCTV installations while retaining compatible cameras and coaxial cabling.

Hik Connect Remote Monitoring

With a properly configured internet connection, authorized users can monitor live footage and review recorded video remotely through Hik-Connect on supported devices.

Internal SATA Hard Drive Storage

The recorder provides internal SATA storage for installing a compatible surveillance-grade hard drive. Recording duration depends on the installed storage capacity, compression settings, camera resolution and recording schedule.

Key Features

• 16 analogue BNC CCTV camera inputs

• Hikvision AcuSense deep-learning technology

• Motion Detection 2.0 on all 16 analogue channels

• Up to 4 channel facial recognition

• Up to 8 channel advanced perimeter protection

• Up to 8 channel AcuSearch technology

• 1080p encoding at up to 15fps

• 3K/5MP Lite encoding at up to 12fps

• H.265 Pro+, H.265 Pro and H.265 video compression

• HDTVI, AHD, HDCVI, CVBS and IP camera compatibility

• Up to 24 IP camera channels in supported hybrid configurations

• Maximum IP camera resolution of 6MP

• Up to 24 channel 1080p decoding capability

• Two way audio over compatible HDTVI cameras

• HDMI and VGA display outputs

• Hik-Connect remote monitoring

• One SATA hard drive interface

• Compact 1U housing

Technical Specifications

Recommended Applications

The Hikvision iDS-7216HQHI-M1/XT is suitable for supermarkets, office buildings, warehouses, schools, hotels, apartment complexes, hospitals, shopping centres and commercial properties requiring centralized 16-camera surveillance.

Its intelligent analytics and AcuSearch functionality are especially useful for security teams that need to investigate incidents quickly and identify relevant human or vehicle activity.
