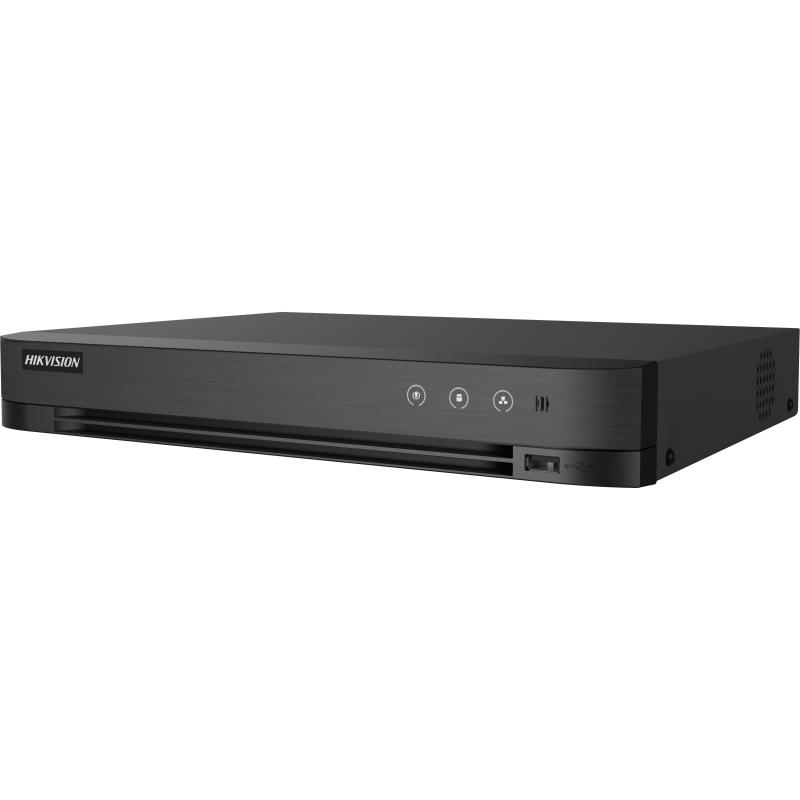

Hikvision IDS-7216HQHI-M1/FA 16ch 1080p AcuSense DVR

16 Channel CCTV Surveillance

The Hikvision iDS-7216HQHI-M1/FA supports up to 16 analogue CCTV cameras through BNC video inputs, allowing businesses and property owners to monitor multiple locations from one centralized recording system. It is suitable for monitoring entrances, corridors, parking areas, reception areas, retail counters, storage rooms and building perimeters.

1080p HD Video Recording

The DVR supports 1080p video recording with compatible cameras, providing detailed surveillance footage for everyday security monitoring and incident investigation. Recording frame rates depend on the connected camera format, selected resolution and encoding configuration.

Hikvision AcuSense Intelligent Detection

Hikvision AcuSense technology uses deep learning algorithms to distinguish people and vehicles from other moving objects. This helps reduce unnecessary alerts caused by environmental activity and makes it easier to identify relevant security events.

Facial Recognition and Face Picture Comparison

The /FA variant includes facial recognition capabilities designed to support face picture comparison and face based event searches. These functions can assist security personnel in reviewing footage from entrances, reception areas and other monitored locations.

Intelligent Perimeter Protection

The recorder supports intelligent perimeter protection, including line crossing and intrusion detection with human and vehicle classification. These functions are useful for monitoring restricted areas, loading zones, entrances and property boundaries.

H.265 Pro+ Video Compression

H.265 Pro+ compression helps reduce video storage consumption compared with older encoding methods while maintaining useful surveillance image quality. This is particularly beneficial for 16-camera installations configured for continuous or scheduled recording.

Multi Format Camera Compatibility

The DVR supports compatible HDTVI, AHD, HDCVI and conventional CVBS cameras, allowing businesses to retain existing analogue CCTV infrastructure where compatible.

Hik Connect Remote Monitoring

With a properly configured network connection, authorized users can access live footage and review recordings remotely through Hik Connect.

Internal SATA Storage

The recorder supports an internal surveillance grade SATA hard drive. Recording duration depends on storage capacity, camera resolution, compression settings and recording schedules.

Key Features

• 16 BNC analogue CCTV camera inputs

• Hikvision AcuSense deep learning technology

• Motion Detection 2.0 on all 16 analogue channels

• Human and vehicle classification

• Up to 4 channel intelligent perimeter protection

• One channel face picture comparison and search

• Up to 16 face picture libraries

• 1080p recording at up to 15fps

• H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression

• HDTVI, AHD, HDCVI, CVBS and IP camera compatibility

• Up to 24 IP camera channels in supported hybrid configurations

• Maximum IP camera resolution of 6MP

• Audio over compatible coaxial cameras

• HDMI and VGA display outputs

• Smart search and playback

• One SATA hard drive interface supporting up to 10TB

• Hik Connect remote monitoring

• Compact 1U housing

Technical Specifications

Recommended Applications

The Hikvision iDS-7216HQHI-M1/FA is suitable for supermarkets, office buildings, warehouses, schools, hotels, apartment complexes, hospitals, shopping centres, retail stores and commercial properties.

Its facial recognition and intelligent perimeter protection features are particularly useful for premises requiring targeted security monitoring, access point surveillance and efficient incident investigations.
