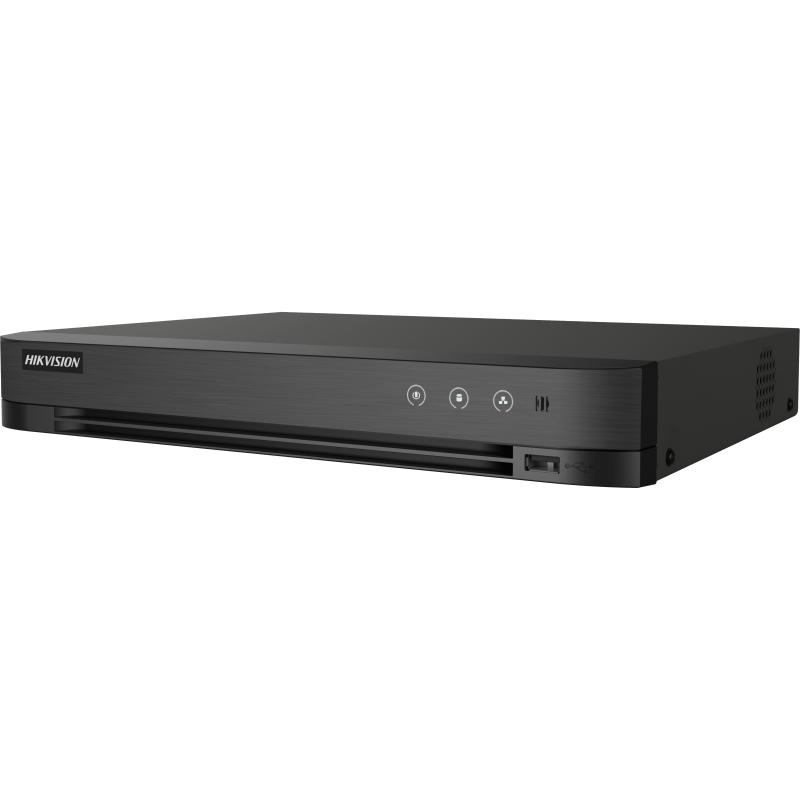

Hikvision IDS-7208HQHI-M1/FA 8ch 1080p 1U AcuSense DVR

8 Channel CCTV Surveillance

The Hikvision iDS-7208HQHI-M1/FA supports eight analogue CCTV cameras through BNC video inputs, allowing users to monitor entrances, corridors, reception areas, parking areas, retail counters and building perimeters. It provides centralized recording and monitoring for small and medium-sized surveillance installations.

1080p HD Video Recording

The DVR supports 1080p video encoding with compatible cameras, providing detailed surveillance footage for everyday security monitoring and incident investigation. Recording frame rates depend on the selected resolution, camera format and operating mode.

Hikvision AcuSense Intelligent Detection

Hikvision AcuSense technology uses deep-learning algorithms to distinguish people and vehicles from irrelevant movement. This helps reduce unnecessary motion alerts caused by environmental activity and makes it easier to identify important security events.

Facial Recognition and Face Picture Comparison

The iDS-7208HQHI-M1/FA includes facial recognition capabilities for supported surveillance channels. Face picture comparison helps operators identify matches against configured face libraries, while face picture search assists with reviewing relevant security events.

Intelligent Perimeter Protection

The DVR supports deep learning based perimeter protection, including line crossing and intrusion detection with human and vehicle classification. This is particularly useful for monitoring restricted areas, entrances, loading zones and property boundaries.

H.265 Pro+ Video Compression

H.265 Pro+ compression technology helps reduce storage requirements compared with older encoding methods while maintaining useful surveillance image quality. This is beneficial for eight camera installations configured for continuous or scheduled recording.

Multi Format CCTV Camera Compatibility

The recorder supports HDTVI, AHD, HDCVI and conventional CVBS analogue cameras, allowing users to retain compatible cameras and coaxial cabling when upgrading existing CCTV systems.

HDMI and VGA Display Outputs

HDMI and VGA interfaces allow users to connect compatible monitors for live camera viewing, video playback and recorder configuration.

Hik Connect Remote Monitoring

With a properly configured internet connection, authorized users can monitor live camera feeds and review recorded footage remotely through Hik-Connect.

SATA Hard Drive Storage

The recorder provides an internal SATA interface for installing a compatible surveillance-grade hard drive. Recording duration depends on installed storage capacity, compression settings, camera resolution and recording schedule.

Facial Recognition and Face Picture Search

The iDS-7208HQHI-M1/FA supports face picture comparison and face picture search, including one-channel face comparison alarms for an HD analogue camera. It supports up to 16 face picture libraries containing a combined maximum of 500 face pictures. These features are useful for security event investigation and authorized access monitoring.

Intelligent Perimeter Protection

The DVR supports up to four channels of deep-learning-based perimeter protection, including line-crossing and intrusion detection.

Key Features

• 8 analogue BNC camera inputs

• Full 1080p recording at up to 15fps

• H.265 Pro+ video compression

• Hikvision AcuSense deep learning technology

• Motion Detection 2.0 across all 8 analogue channels

• Up to 4 channel perimeter protection

• One channel face picture comparison alarms

• Face picture search and up to 500 stored face pictures

• HDTVI, AHD, HDCVI, CVBS and IP camera compatibility

• Up to 12 IP camera channels in enhanced IP mode

• Maximum IP camera resolution of 6MP

• HDMI and VGA simultaneous outputs

• Audio over compatible coaxial cameras

• One SATA interface supporting up to 10TB

• Hik-Connect remote viewing

• Compact 1U housing

Technical Specifications

Recommended Applications

The Hikvision iDS-7208HQHI-M1/FA is suitable for office buildings, supermarkets, warehouses, schools, hotels, retail shops, apartment complexes, restaurants and other commercial properties requiring intelligent eight-camera surveillance.

Its facial comparison and perimeter protection functions make it particularly useful for entrance monitoring, restricted areas and security incident investigations.
