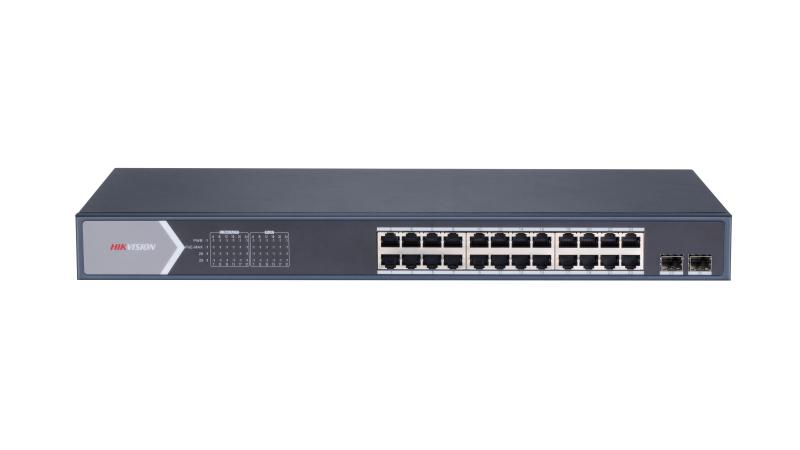

Hikvision DS-3E1526P-SI Smart Managed Gigabit PoE Switch

Reliable Hikvision DS-3E1526P-SI Smart Managed PoE Switch

The Hikvision DS-3E1526P-SI combines Gigabit Ethernet performance with intelligent Power over Ethernet management to support professional surveillance networks. Featuring 24 PoE ports and two fibre uplinks, it allows multiple compatible IP cameras to connect to recording equipment and existing network infrastructure.

Furthermore, its smart management capabilities provide greater control over network performance and maintenance than conventional unmanaged switches.

24 Gigabit PoE Ports for IP CCTV Cameras

The switch provides 24 × 10/100/1000Mbps PoE Ethernet ports for connecting compatible IP cameras, wireless access points and VoIP phones. Gigabit connectivity offers higher bandwidth than traditional Fast Ethernet switches. Consequently, the device is suitable for surveillance networks using multiple high-resolution cameras.

370W Total PoE Power Budget

The Hikvision DS-3E1526P-SI supports IEEE 802.3af and IEEE 802.3at Power over Ethernet standards. Each PoE port can deliver up to 30W, subject to the combined 370W budget. For example, 24 cameras consuming 12W each require approximately 288W, which is within the available power capacity.

However, 24 devices drawing 20W each would require 480W and exceed the switch’s total budget. Therefore, installers should calculate the power requirements of connected devices before installation.

Dual Gigabit SFP Fibre Uplinks

The switch features two Gigabit SFP fibre-optic uplink ports for integration with compatible networking equipment. These interfaces provide flexible connectivity between network cabinets, buildings and surveillance infrastructure.

Additionally, suitable fibre transceivers and cabling can support connections over longer distances than conventional copper Ethernet cabling.

56Gbps Switching Capacity

The DS-3E1526P-SI provides a 56Gbps switching capacity and 41.66Mpps packet forwarding rate. These capabilities help the switch process network traffic efficiently across multiple Gigabit interfaces. As a result, it is suitable for CCTV systems where numerous cameras transmit video simultaneously.

Smart Network Management and Monitoring

The switch supports intelligent network management, including topology visualization, network health monitoring and alarm notifications. Administrators can monitor connected devices, identify certain connectivity problems and configure supported network functions. Furthermore, compatible Hik Partner Pro management provides remote maintenance options.

Intelligent PoE Watchdog

The PoE watchdog feature monitors supported connected cameras and can automatically restart PoE power when certain devices become unresponsive. Consequently, this may reduce the need for manual camera power cycling. However, automatic restarting does not guarantee recovery from every camera or network fault.

Up to 300m Long Range PoE Transmission

The switch supports extended PoE transmission of up to 300 metres on ports 1–24 under suitable conditions. This feature provides flexibility when installing compatible cameras farther from the network cabinet. Nevertheless, long-range performance depends on cable quality, camera compatibility and installation conditions. Extended mode may also reduce available data speeds.

VLAN Support and Port Isolation

The Hikvision DS-3E1526P-SI supports IEEE 802.1Q VLAN configuration and port isolation. These functions help administrators organize network traffic and restrict unnecessary communication between selected devices. Therefore, they are useful for professional CCTV and business networking environments.

STP, RSTP and Link Aggregation

The switch supports network loop prevention and static link aggregation. Spanning Tree Protocol helps reduce the risk of network loops, while link aggregation can combine compatible connections into a logical network link. Additionally, QoS features help prioritize selected traffic when network resources are limited.

Network Traffic and Storm Control

The switch supports port rate limiting and storm control to help manage excessive broadcast, multicast and unknown unicast traffic. Consequently, administrators can improve network stability and reduce unnecessary traffic congestion.

6kV Surge Protection

The DS-3E1526P-SI incorporates 6kV surge protection to improve resistance to electrical disturbances. Nevertheless, proper grounding and additional protection remain important where network cables are exposed to outdoor electrical hazards.

Durable Rack Mountable Metal Housing

The switch features a durable metal enclosure designed for professional indoor installations. Its rack mountable construction allows convenient installation in compatible network cabinets and equipment rooms. Furthermore, its combination of 24 PoE ports, fibre connectivity and smart management makes it suitable for commercial and institutional networks.

Key Features

• 24 × 10/100/1000Mbps Gigabit PoE ports.

• 2 × Gigabit SFP fibre-optic uplink ports.

• 370W total PoE power budget.

• Up to 30W per PoE port, subject to the total budget.

• IEEE 802.3af/at PoE compatibility.

• 56Gbps switching capacity.

• 41.66Mpps packet forwarding rate.

• 8K MAC address table.

• 4.1Mbit internal packet buffer.

• Up to 300m long-range PoE transmission.

• Intelligent PoE watchdog on ports 1–24.

• IEEE 802.1Q VLAN and port isolation.

• STP loop prevention.

• Static link aggregation, up to eight groups.

• QoS, port rate limiting and storm control.

• Network topology monitoring and alarm notifications.

• Hik Partner Pro remote management.

• 6kV surge protection.

• Rack mountable metal enclosure.

Technical Specifications

Recommended Applications

• Commercial IP CCTV surveillance systems.

• Office buildings and corporate networks.

• Warehouses and logistics facilities.

• Schools, colleges and universities.

• Hospitals and institutional premises.

• Shopping centres and retail businesses.

• Hotels and residential developments.

• Compatible wireless access point and VoIP networks.
