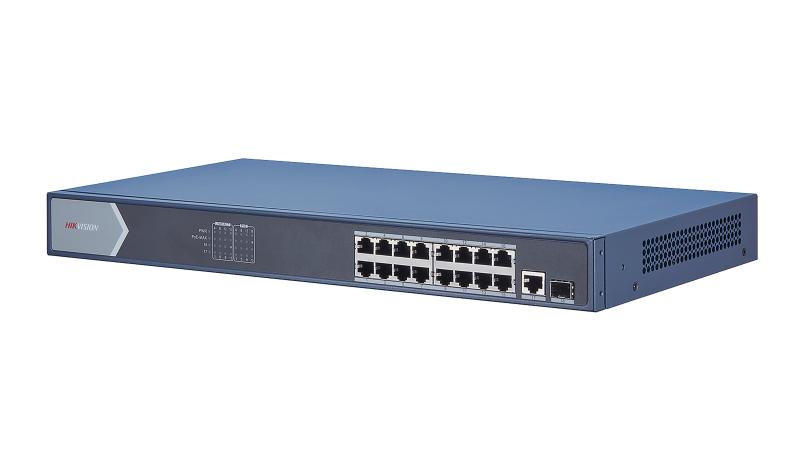

Hikvision DS-3E0518P-E 16 Port Gigabit Unmanaged POE Switch

Reliable Hikvision DS-3E0518P-E Gigabit PoE Switch

The Hikvision DS-3E0518P-E is designed to provide high-speed Ethernet connectivity and centralized Power over Ethernet distribution for professional surveillance networks. It combines 16 Gigabit PoE ports with two dedicated uplink interfaces, allowing installers to connect multiple IP cameras to a network video recorder or existing network infrastructure.

Furthermore, its unmanaged operation makes deployment straightforward without requiring advanced networking knowledge.

16 Gigabit PoE Ports for CCTV Cameras

The switch features 16 × 10/100/1000Mbps PoE Ethernet ports, supporting compatible IP surveillance cameras and other powered networking devices. Unlike Fast Ethernet switches, its Gigabit connectivity provides additional bandwidth for high-resolution video transmission. Consequently, it is suitable for CCTV installations requiring multiple cameras to operate simultaneously.

230W Total PoE Power Budget

The Hikvision DS-3E0518P-E supports IEEE 802.3af and IEEE 802.3at Power over Ethernet standards. Each PoE port can supply up to 30W, subject to the combined 230W power budget. For example, sixteen cameras drawing 10W each would require approximately 160W, which is within the switch’s available PoE budget.

However, sixteen devices drawing 20W each would exceed the total power capacity. Therefore, installers should calculate device power requirements before deployment.

Gigabit RJ45 and SFP Uplink Connectivity

The switch includes one Gigabit RJ45 uplink and one Gigabit SFP fibre-optic uplink. The RJ45 uplink enables connection to compatible NVRs, routers or other network switches. Meanwhile, the SFP interface provides an option for fibre connectivity when a compatible transceiver is installed. As a result, the switch offers flexible network integration for CCTV systems and commercial networking environments.

36Gbps Switching Capacity

The Hikvision DS-3E0518P-E provides a 36Gbps switching capacity and a packet forwarding rate of approximately 26.78 million packets per second. These capabilities support efficient traffic forwarding across the switch’s Gigabit interfaces.

Consequently, the device is suitable for surveillance networks requiring stable data transmission between multiple connected devices.

Plug and Play Unmanaged Operation

The switch operates without requiring VLAN configuration, web-based management or additional switch administration software. Simply connect the compatible devices, establish the uplink connection and provide power. This simplifies installation and makes the switch suitable for businesses that require dependable networking without advanced management features.

6kV Surge Protection

The Hikvision DS-3E0518P-E incorporates 6kV surge protection to improve resistance to electrical disturbances affecting Ethernet connections. This helps improve reliability in suitable surveillance environments. Nevertheless, proper grounding and additional surge protection may still be necessary, especially where cables are exposed to outdoor electrical disturbances.

Durable Metal Housing

The switch features a strong metal enclosure designed for professional indoor installations. Additionally, its compact form factor allows convenient placement in suitable network cabinets, equipment rooms and CCTV installations.

Suitable for CCTV and Business Networking

Besides IP cameras, the Hikvision DS-3E0518P-E can provide Gigabit connectivity and PoE power for compatible wireless access points, IP telephones and other network equipment. Therefore, it is suitable for offices, warehouses, retail stores, schools, hospitals and commercial security installations.

Key Features

• 16 × 10/100/1000Mbps Gigabit PoE ports.

• 1 × Gigabit RJ45 uplink port.

• 1 × Gigabit SFP fibre-optic uplink port.

• 230W total PoE power budget.

• Up to 30W per PoE port, subject to the combined budget.

• IEEE 802.3af/at PoE compatibility.

• 36Gbps switching capacity.

• 26.784Mpps packet forwarding rate.

• 8K MAC address table.

• 4.1Mbit internal packet buffer.

• 6kV surge protection.

• Store and forward switching technology.

• Plug and play unmanaged operation.

• Durable metal enclosure.

• Indoor installation.

Technical Specifications

Recommended Applications

The Hikvision DS-3E0518P-E is suitable for:

• IP CCTV surveillance systems with up to 16 compatible PoE cameras.

• Commercial offices and corporate networks.

• Warehouses and logistics facilities.

• Retail shops and shopping centres.

• Schools, colleges and institutional buildings.

• Hospitals and healthcare facilities.

• Compatible wireless access point installations.

• VoIP telephone networks.
