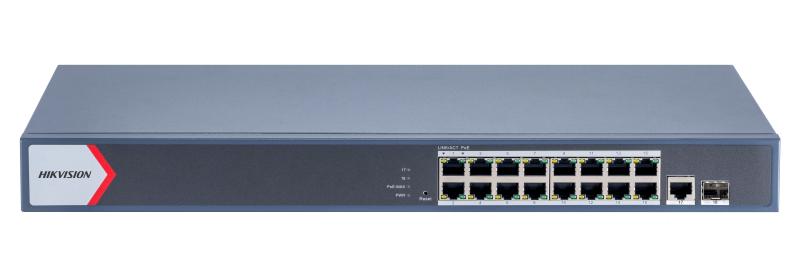

Hikvision DS-3E1518P-EI/M 16 Port Gigabit Smart POE Switch

Reliable Hikvision DS-3E1518P-EI/M Gigabit Smart PoE Switch

The Hikvision DS-3E1518P-EI/M is designed to provide high-speed network connectivity and centralized PoE power distribution for IP surveillance systems.

Featuring 16 Gigabit PoE ports and smart management capabilities, it allows businesses to connect multiple compatible IP cameras while simplifying network monitoring and maintenance. Furthermore, its management features provide greater control than conventional unmanaged network switches.

16 Gigabit PoE Ports for IP CCTV Cameras

The switch features 16 × 10/100/1000Mbps PoE Ethernet ports for connecting compatible IP cameras, wireless access points and other PoE-powered devices. Gigabit connectivity provides additional bandwidth for high-resolution surveillance cameras compared with traditional Fast Ethernet switches.

Consequently, the Hikvision DS-3E1518P-EI/M is suitable for commercial CCTV installations requiring reliable data transmission.

130W Total PoE Power Budget

The switch supports IEEE 802.3af and IEEE 802.3at Power over Ethernet standards, with up to 30W available per compatible PoE port. However, its total PoE power budget is limited to 130W across all 16 ports.

For example, sixteen cameras consuming 7W each would require approximately 112W, which is within the available power budget. Therefore, installers should calculate the combined power consumption of all connected devices before installation.

Gigabit RJ45 and SFP Uplink Connectivity

The Hikvision DS-3E1518P-EI/M includes one Gigabit RJ45 uplink and one Gigabit SFP fibre-optic uplink. The RJ45 interface provides connectivity to compatible NVRs, routers and other network switches. Meanwhile, the SFP interface allows fibre-optic network integration using a compatible transceiver. As a result, the switch provides flexible connectivity for CCTV installations and business networks.

Smart Network Management

Unlike unmanaged switches, the DS-3E1518P-EI/M supports smart network administration through a web interface and compatible Hikvision management platforms. Network administrators can monitor port activity, inspect network topology and identify connectivity problems.

Additionally, supported remote management functions help simplify maintenance across surveillance installations.

PoE Watchdog for Camera Reliability

The built-in PoE watchdog can detect certain unresponsive connected IP cameras and automatically restart their PoE power. Consequently, this feature can reduce the need for manual camera power cycling when compatible devices stop responding. However, it does not guarantee recovery from every camera or network failure.

Up to 300m Long Range PoE Transmission

The switch supports extended PoE transmission of up to 300 metres on its PoE ports under suitable conditions. This feature is particularly useful for surveillance cameras positioned farther from the central network cabinet. Nevertheless, the achievable distance depends on cable quality, connected equipment and operating conditions. Extended transmission may also involve reduced data rates.

VLAN Support and Port Isolation

The Hikvision DS-3E1518P-EI/M supports IEEE 802.1Q VLAN configuration, allowing administrators to logically separate network traffic. Additionally, port isolation can restrict communication between selected connected devices. Therefore, these features help improve network organization and reduce unnecessary communication between camera ports.

STP and RSTP Loop Prevention

The switch supports Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP). These protocols help prevent network loops that could otherwise interrupt communication or reduce network performance. Furthermore, static link aggregation provides additional network configuration flexibility.

6kV Surge Protection

The Hikvision DS-3E1518P-EI/M features 6kV surge protection to improve resistance to electrical disturbances. This helps protect the switch during suitable indoor networking installations. However, proper grounding and additional surge protection may still be required, especially when connecting outdoor cameras.

Durable Rack Mountable Metal Housing

The switch features a metal enclosure designed for professional networking environments. Its rack-mountable design allows convenient installation in compatible network cabinets and equipment rooms. Consequently, it is suitable for offices, schools, warehouses, retail businesses and commercial CCTV systems. Descriptions and specifications are based on Hikvision’s official DS-3E1518P-EI/M datasheet.

Key Features

• 16 × 10/100/1000Mbps Gigabit PoE ports.

• 1 × Gigabit RJ45 uplink port.

• 1 × Gigabit SFP fibre-optic uplink port.

• 130W total PoE power budget.

• Up to 30W per PoE port, subject to the total budget.

• IEEE 802.3af/at PoE compatibility.

• 56Gbps switching capacity.

• 41.66Mpps packet forwarding rate.

• Up to 300m long-range PoE transmission.

• Automatic PoE watchdog functionality.

• IEEE 802.1Q VLAN support.

• STP/RSTP loop prevention.

• Static link aggregation.

• Port isolation and cable detection.

• Web and Hik-Partner Pro management.

• 6kV surge protection.

• Durable rack-mountable metal housing.

Technical Specifications

Recommended Applications

The Hikvision DS-3E1518P-EI/M is suitable for:

• Commercial IP CCTV surveillance installations.

• Office buildings and corporate networks.

• Warehouses and logistics facilities.

• Schools, colleges and institutions.

• Retail shops and shopping centres.

• Hotels and residential developments.

• Compatible wireless access point installations.

• VoIP and business networking systems.
