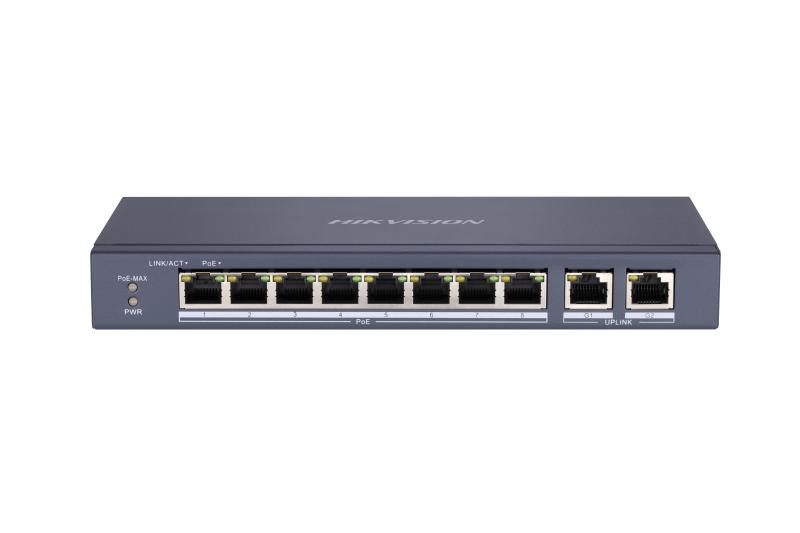

Hikvision DS-3E0310P-E/M(B) 8 Port Fast Ethernet Unmanaged POE Switch
Reliable Hikvision DS-3E0310P-E/M(B) PoE Switch
The Hikvision DS-3E0310P-E/M(B) is designed to provide dependable network connectivity and Power over Ethernet distribution for IP surveillance installations.
By combining data transmission and electrical power in a single Ethernet connection, it simplifies the installation of compatible security cameras. Consequently, users can reduce the need for separate camera power adapters.
Eight PoE Ports for IP CCTV Cameras
The switch provides eight Fast Ethernet PoE ports for connecting compatible IP cameras and other supported networking devices. Additionally, its uplink interfaces allow connection to an NVR, router or existing network infrastructure. This makes the switch suitable for CCTV installations where multiple cameras must communicate with a centralized recorder.
Plug and Play Unmanaged Operation
The Hikvision DS-3E0310P-E/M(B) features an unmanaged design, allowing users to connect compatible devices without performing complex switch configuration. Therefore, it is convenient for CCTV installers, small businesses and residential surveillance applications.
Power over Ethernet Connectivity
The switch supports standard PoE technology for compatible powered devices. As a result, IP cameras can receive both network data and electrical power through Ethernet cabling, helping simplify deployment and maintenance. Installers should ensure that connected devices remain within the switch’s supported PoE power budget.
Fast Ethernet Network Performance
The Hikvision DS-3E0310P-E/M(B) is designed for Fast Ethernet connectivity, making it suitable for compatible IP surveillance cameras and small network installations. However, its Fast Ethernet ports should not be confused with Gigabit Ethernet interfaces.
Suitable for CCTV Surveillance Installations
The switch is designed for connecting multiple IP cameras to an NVR or security network. For example, it can be installed in retail stores, office buildings, warehouses, residential properties and reception areas. Furthermore, its centralized PoE design helps simplify camera power distribution and maintenance.
Compact and Convenient Installation
The switch offers a practical installation option for CCTV cabinets, equipment shelves and other suitable networking locations. Its plug and play operation makes it convenient for installations where straightforward network connectivity is more important than advanced switch management.
Key Features
- 8 × 10/100Mbps Fast Ethernet PoE ports.
- 2 × 10/100/1000Mbps Gigabit RJ45 uplink ports.
- 80W total PoE power budget.
- Up to 30W per PoE port, subject to the total budget.
- IEEE 802.3af/at PoE compatibility.
- Up to 300m long range transmission.
- 6kV surge protection.
- 5.6Gbps switching capacity.
- 4.17Mpps packet forwarding rate.
- 8K MAC address table.
- Plug and play unmanaged operation.
- Fanless metal housing for quiet operation.
- Desktop and wall mounted installation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Model | DS-3E0310P-E/M(B) |
| Product Type | Unmanaged PoE Switch |
| Total Ethernet Ports | 10 |
| PoE Ports | 8 × 10/100Mbps |
| Uplink Ports | 2 × Gigabit RJ45 |
| PoE Standards | IEEE 802.3af / 802.3at |
| Maximum PoE per Port | 30W |
| Total PoE Budget | 80W |
| Switching Capacity | 5.6Gbps |
| Packet Forwarding Rate | 4.17Mpps |
| MAC Address Table | 8K |
| Internal Cache | 4Mbits |
| Long-Range Transmission | Up to 300m |
| Surge Protection | 6kV |
| Management | Unmanaged |
| Power Supply | 54V DC, 1.2A |
| Maximum Power Consumption | 86W |
| Housing | Metal, fanless |
| Installation | Desktop / Wall Mount |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 217.6 × 27.6 × 108.5mm |
Recommended Applications
The Hikvision DS-3E0310P-E/M(B) is suitable for residential CCTV installations, retail shops, offices, warehouses, schools, small commercial premises and security monitoring systems. It is particularly useful where up to eight compatible PoE cameras require centralized power and network connectivity.
