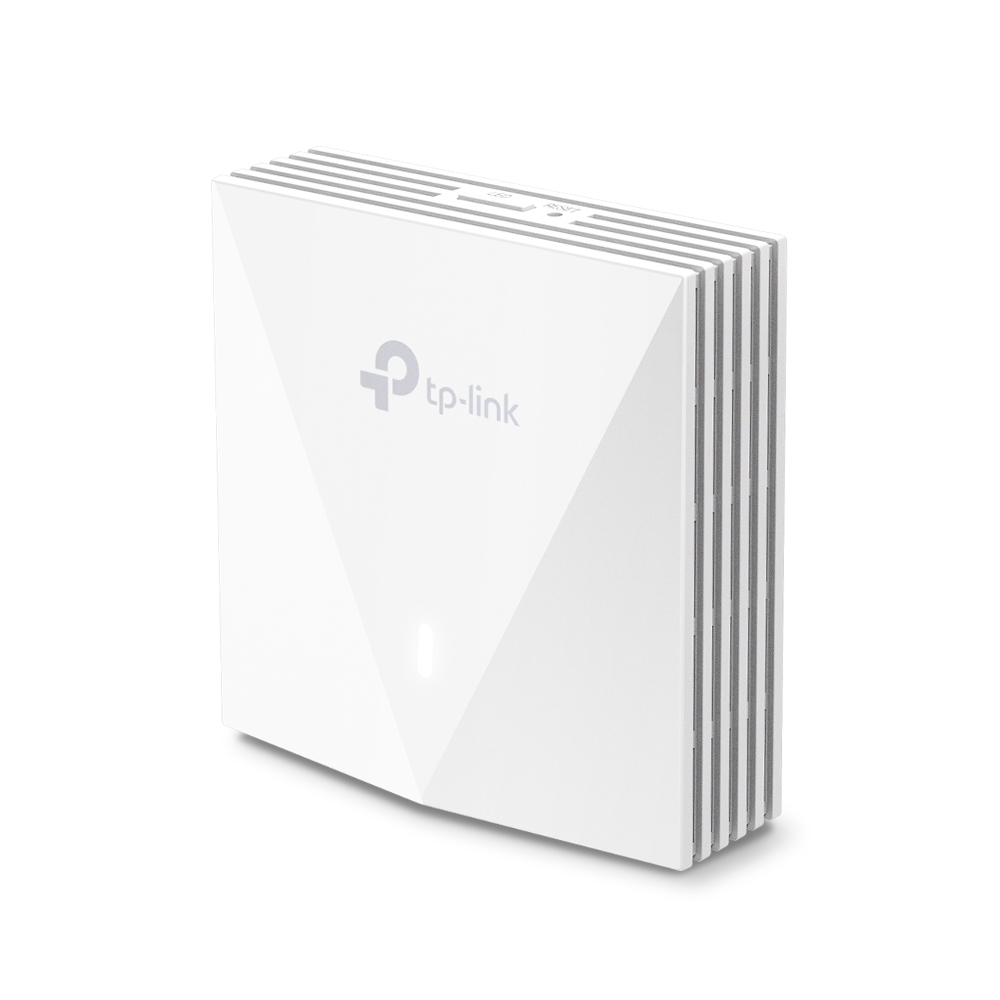

AX3000 Wall-Plate Wi-Fi 6 Access Point EAP650-Wall

The TP-Link Omada EAP650-Wall AX3000 Wall-Plate Wi-Fi 6 Access Point provides fast and reliable wireless connectivity for rooms, offices and other indoor spaces. With Wi-Fi 6 technology, AX3000 dual-band speeds and a compact wall-plate design, it provides both wireless and wired connectivity from one convenient installation point.

The EAP650-Wall is especially suitable for hotels, apartments, offices, dormitories, hospitals and residential developments where reliable room-by-room Wi-Fi coverage is required.

AX3000 Dual-Band Wi-Fi 6

The TP-Link EAP650-Wall uses 802.11ax Wi-Fi 6 technology to provide combined wireless speeds of up to 2976 Mbps.

• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps
• Combined speed: Up to 2976 Mbps

Therefore, users can enjoy smooth video streaming, online meetings, cloud applications, web browsing and other bandwidth-intensive activities.

Efficient Multi-Device Connectivity

Modern rooms often contain several wireless devices. For this reason, the EAP650-Wall Wi-Fi 6 Access Point supports technologies such as OFDMA and MU-MIMO.

These technologies help the access point communicate efficiently with multiple compatible devices. As a result, the network can provide better performance in busy environments.

Wall-Plate Design

The compact wall-plate design provides a clean and professional installation. It can replace a standard Ethernet wall plate, helping businesses deliver Wi-Fi directly where users need it.

This design makes the EAP650-Wall particularly useful in hotel rooms, apartments, offices and other locations where ceiling-mounted access points may not be practical.

Gigabit Wired Connectivity

In addition to Wi-Fi, the EAP650-Wall provides Gigabit Ethernet connectivity for wired network devices. You can connect equipment such as:

• Desktop computers
• Smart TVs
• IP phones
• Network printers
• IPTV equipment
• Other Ethernet-enabled devices

Therefore, one wall-mounted access point can provide both wired and wireless connectivity within the room.

PoE+ and PoE Pass-Through

The TP-Link Omada EAP650-Wall supports 802.3at PoE+, allowing network data and power to travel through a single Ethernet cable.

It also supports PoE pass-through on a compatible downlink port, which can help power another supported network device. This feature can simplify installations and reduce additional power cabling.

Omada SDN Centralized Management

The EAP650-Wall integrates with the TP-Link Omada Software Defined Networking (SDN) platform. Administrators can centrally configure and manage compatible Omada access points, switches and gateways.

As a result, businesses can build a scalable network while keeping management simple.

Key Features

• AX3000 dual-band Wi-Fi 6
• Up to 2402 Mbps on 5 GHz
• Up to 574 Mbps on 2.4 GHz
• 802.11ax Wi-Fi 6
• Supports OFDMA
• Supports MU-MIMO
• Multiple Gigabit Ethernet ports
• 802.3at PoE+ support
• PoE pass-through support
• Compact wall-plate design
• Centralized Omada SDN management
• Suitable for room-by-room Wi-Fi deployment

Ideal for Hotels, Offices and Apartments

The TP-Link Omada EAP650-Wall AX3000 Wi-Fi 6 Access Point is a practical solution for businesses that need strong Wi-Fi coverage in individual rooms. Its combination of Wi-Fi 6 performance, Gigabit wired connectivity and centralized Omada management makes it suitable for both new installations and network upgrades.

For hotels, apartments, offices, dormitories and similar environments, the EAP650-Wall provides a neat and scalable way to deliver reliable wired and wireless connectivity to each room.
