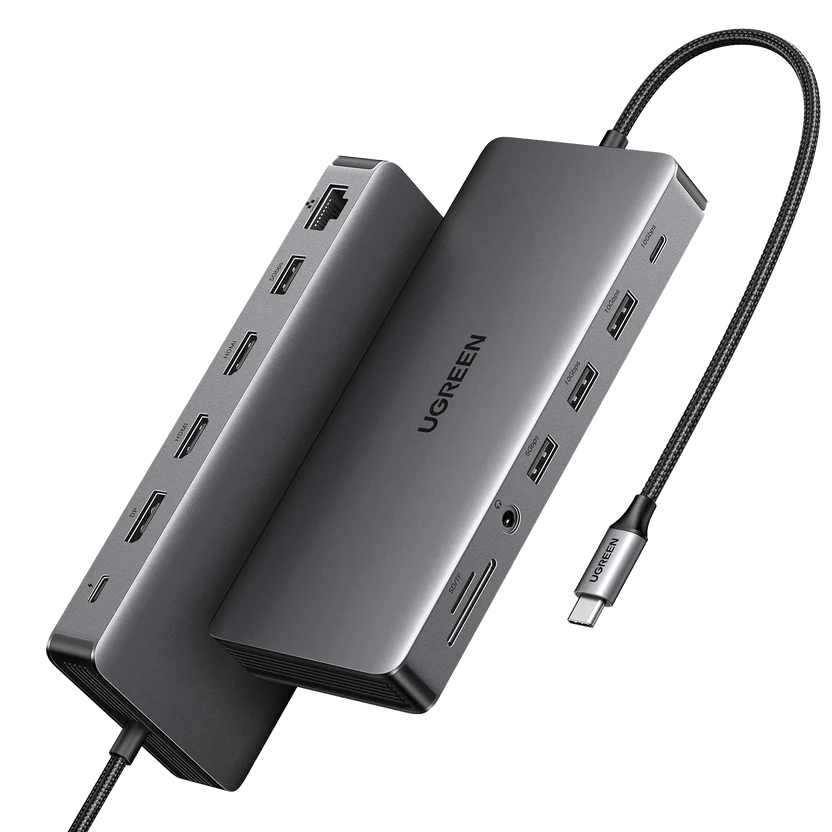

UGREEN Revodok Pro 313 USB-C 13-In-1 Docking Station CM681

The UGREEN Revodok Pro 313 is designed for professionals who need more connectivity from a USB-C laptop. Instead of using separate display, Ethernet, card-reader and USB adapters, the Revodok Pro 313 combines these connections into one compact docking station.

UGREEN identifies this model as the Revodok Pro 313, SKU 15978. It provides 13 ports, supports up to three external monitors, offers USB data speeds up to 10Gbps and supports 100W Power Delivery input.

13 in 1 Connectivity

The docking station provides:

• 2 × USB-A 3.2 – up to 10Gbps
• 2 × USB-A 3.0 – up to 5Gbps
• 1 × USB-C 3.2 – up to 10Gbps
• 2 × HDMI 2.0
• 1 × DisplayPort 1.4
• 1 × RJ45 Gigabit Ethernet
• 1 × SD card reader
• 1 × TF/microSD card reader
• 1 × 3.5mm audio port
• 1 × USB-C Power Delivery port – up to 100W

Triple Display Support

The Revodok Pro 313 supports up to three extended monitors, using its two HDMI 2.0 outputs and DisplayPort 1.4 connection. UGREEN specifies a maximum display resolution of 4K@60Hz.

This makes the docking station particularly useful for multitasking. For example, users can dedicate separate screens to spreadsheets, email, web applications, video conferencing and other business software.

Actual triple display modes and simultaneous resolutions depend on the laptop, operating system and USB-C display capabilities.

Dual HDMI 2.0

Two HDMI 2.0 outputs allow compatible monitors, TVs and projectors to be connected directly to the dock. Each display interface is specified for resolutions up to 4K@60Hz, subject to host capabilities.

DisplayPort 1.4

In addition to dual HDMI, the docking station includes DisplayPort 1.4. Therefore, users can combine HDMI and DisplayPort monitors when building a multi-screen workstation. This is especially convenient for professional monitors that provide native DisplayPort connectivity.

High Speed 10Gbps USB Connectivity

For high performance storage and peripherals, the Revodok Pro 313 provides two USB-A 3.2 ports and one USB-C 3.2 data port, each supporting transfer speeds up to 10Gbps.  These ports are ideal for compatible external SSDs, high speed flash drives and other data intensive peripherals.

Additional USB-A 3.0 Ports

Two additional USB-A 3.0 ports support transfer rates up to 5Gbps. They provide convenient connectivity for external hard drives, flash drives, printers, keyboards, mice, cameras and other USB-A devices.

Gigabit Ethernet

The built in RJ45 Gigabit Ethernet port provides wired network connectivity up to 1000Mbps. It provides a practical solution for laptops without built-in Ethernet and can offer a stable connection for video conferencing, cloud applications and large network file transfers.

SD & TF Card Readers

Dedicated SD and TF/microSD slots provide convenient access to memory cards. Independent testing also reports that both card slots can be used for media workflows, making the dock useful for photographers and content creators.

3.5mm Audio

A built in 3.5mm audio connection allows compatible headphones, speakers and other wired audio equipment to connect directly to the docking station.

100W USB-C Power Delivery

The Revodok Pro 313 supports USB-C Power Delivery up to 100W input. Therefore, a compatible charger can power the connected laptop while the dock handles displays, networking and USB peripherals.

The charger should be selected according to the laptop’s power requirements. Actual power reaching the laptop can be lower because the dock requires power for its own operation.

Key Features

• 13-in-1 professional USB-C docking station
• Model: UGREEN Revodok Pro 313
• Model reference: CM681
• SKU: 15978
• Triple display support
• 2 × HDMI 2.0
• 1 × DisplayPort 1.4
• Maximum display resolution up to 4K@60Hz
• 2 × USB-A 3.2 up to 10Gbps
• 2 × USB-A 3.0 up to 5Gbps
• 1 × USB-C 3.2 up to 10Gbps
• Gigabit RJ45 Ethernet
• SD and TF/microSD card readers
• 3.5mm audio
• 100W USB-C PD charging
• Suitable for professional multi-monitor workstations

Technical Specifications

Ideal for Professional Workstations

The Revodok Pro 313 can create a workstation such as:

USB-C Laptop → Revodok Pro 313 → 3 Monitors + Gigabit LAN + External SSD + Keyboard/Mouse + SD Card + Headset + USB-C Charger

This makes it particularly suitable for offices, home workstations, financial applications, programming, content creation, photography and other productivity environments.

Compatibility Note

The laptop’s USB-C port must support the functions you intend to use. In particular, external displays require compatible USB-C video output. Triple-display behaviour can also vary between Windows and macOS systems.

For customers specifically buying the dock to operate three independent extended monitors, confirm the laptop model and operating system before purchase.
