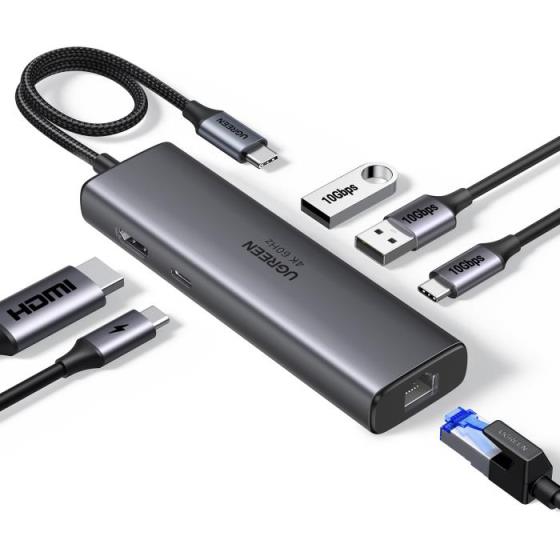

UGREEN CM512 6 -In -1 Docking Station- USB-C To 3*USB 3.0 A/HDMI/RJ45/ 100W PD Converter

The UGREEN CM512 6-in-1 USB-C Multifunction Hub is a high-performance connectivity solution for modern laptops, tablets and other compatible USB-C devices. It combines fast USB 3.2 data transfer, 4K display output, wired Gigabit networking and USB-C Power Delivery in one compact adapter.

Compared with basic USB-C hubs limited to 5Gbps and 4K 30Hz, the CM512 offers USB 3.2 Gen 2 speeds up to 10Gbps and HDMI output up to 4K at 60Hz.

6-in-1 USB-C Expansion

The UGREEN CM512 provides six useful interfaces:

• 2 × USB-A 3.2 Gen 2 – up to 10Gbps
• 1 × USB-C 3.2 Gen 2 – up to 10Gbps
• 1 × HDMI – up to 4K @ 60Hz
• 1 × RJ45 Gigabit Ethernet – up to 1000Mbps
• 1 × USB-C PD – up to 100W input

This configuration is confirmed for the CM512 model.

4K HDMI at 60Hz

The HDMI output supports resolutions up to 3840 × 2160 at 60Hz, providing smoother motion than a typical 4K 30Hz USB-C hub. It is suitable for connecting compatible laptops to monitors, TVs and projectors for presentations, video playback, office applications, creative work and extended desktop setups. For HDMI output to work, the host device’s USB-C port must support video output, such as DisplayPort Alt Mode.

USB 3.2 Gen 2 – Up to 10Gbps

The CM512 features two USB-A 3.2 Gen 2 ports and one USB-C 3.2 Gen 2 data port. Each is specified for transfer speeds up to 10Gbps with compatible devices. This makes the hub suitable for external SSDs and HDDs, USB flash drives, card readers, cameras, keyboards, mice and other compatible peripherals.

For example, the higher bandwidth is particularly useful when transferring large files between a compatible laptop and high speed external SSD.

Gigabit Ethernet Connection

The integrated RJ45 Ethernet port supports 10/100/1000Mbps, giving laptops without built-in Ethernet access to a stable wired network connection. This is particularly useful for offices, video conferencing, large downloads, network applications and locations where Wi-Fi performance is inconsistent.

100W USB-C Power Delivery

The dedicated USB-C PD port accepts up to 100W Power Delivery input. However, UGREEN specifies that up to approximately 85W can be passed through to the connected laptop, with up to 15W reserved for operation of the hub and connected interfaces. Actual charging performance depends on the charger, USB-C cable, laptop and connected peripherals.

Separate USB-C Data and PD Ports

An important feature of this model is that it provides two different USB-C female interfaces: USB-C 3.2: for high speed data transfer up to 10Gbps, USB-C PD: for Power Delivery charging.

The dedicated PD port is charging-only and does not provide data transfer or video output. This distinction is important when describing the product on your website.

Ideal for a Complete Workstation

A typical setup could be: USB-C Laptop → CM512 → 4K Monitor + Ethernet + External SSD + Keyboard/Mouse + USB-C Charger. Therefore, one USB-C connection can handle display output, high-speed storage, networking, peripherals and laptop charging.

Key Features

• 6-in-1 USB-C multifunction hub
• 2 × USB-A 3.2 Gen 2
• 1 × USB-C 3.2 Gen 2 data port
• Data transfer up to 10Gbps
• 1 × HDMI
• HDMI resolution up to 4K @ 60Hz
• 1 × Gigabit RJ45 Ethernet
• Ethernet speeds of 10/100/1000Mbps
• 1 × USB-C Power Delivery port
• Up to 100W PD input
• Up to approximately 85W host pass-through charging
• Plug-and-play operation
• Compact and portable design
• Suitable for compatible Windows, macOS, Linux, ChromeOS and USB-C devices

Technical Specifications

Why Choose the UGREEN CM512?

The CM512 is particularly suitable for users who need more than a basic USB hub. It combines 10Gbps USB 3.2, 4K 60Hz HDMI, Gigabit Ethernet and high-power USB-C charging in one portable adapter. This makes it suitable for business workstations, remote work, presentations, high-speed external storage, video editing and travel.
