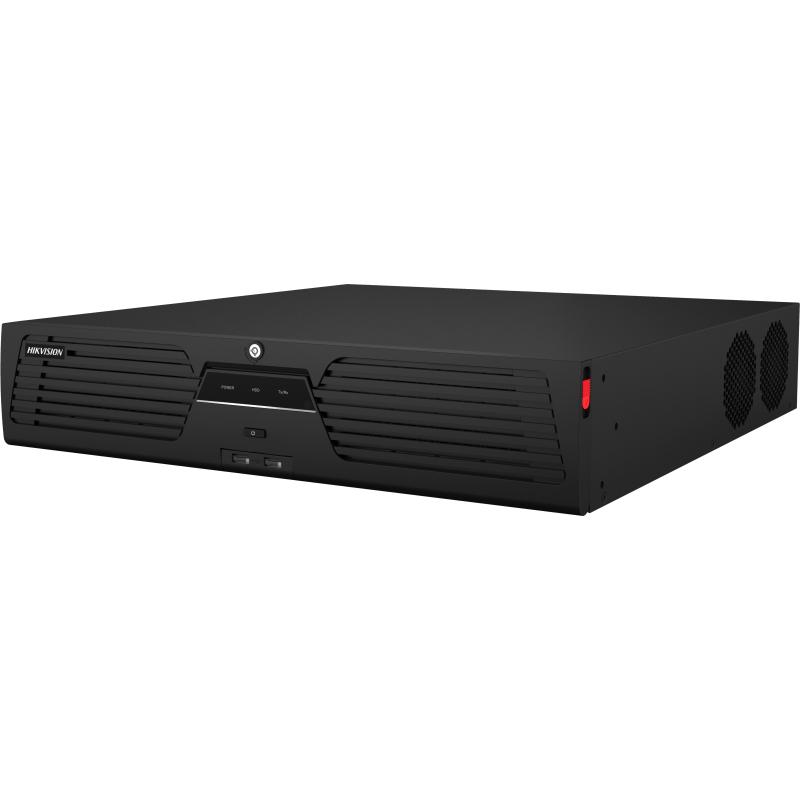

Hikvision DS-96128NI-M8 128-Channel Network Video Recorder

Professional 128 Channel IP Surveillance

The Hikvision DS-96128NI-M8 supports up to 128 compatible IP cameras, allowing security teams to monitor numerous areas from one centralized recording platform. This makes it particularly suitable for large facilities with extensive CCTV coverage, including multiple entrances, corridors, parking areas, warehouses and restricted zones.

High Resolution CCTV Recording

The recorder is designed for high resolution IP camera installations, helping organizations capture detailed footage for security monitoring and incident investigation. Actual recording performance depends on camera resolution, frame rate, network band width and video compression settings.

Efficient H.265+ Video Compression

Hikvision H.265+ compression helps reduce recording storage requirements and network bandwidth consumption when used with compatible cameras. This allows businesses to manage large volumes of surveillance footage more efficiently while maintaining suitable recording quality.

Eight SATA Hard Drive Interfaces

The Hikvision DS-96128NI-M8 features eight internal SATA interfaces for compatible surveillance grade hard drives. Its expandable storage design allows organizations to configure recording capacity according to camera count, recording schedules and video retention requirements.

Centralized Surveillance Management

Security operators can manage live viewing, video recording, playback and event monitoring through compatible Hikvision software and connected surveillance displays.

Remote Monitoring and Playback

With suitable network configuration, authorized users can remotely access supported live video and recorded footage through compatible Hikvision surveillance applications.

Professional Rackmount Design

The recorder is built for professional CCTV installations in server rooms, security control centres and equipment racks.

Key Features

• 128 channel IP camera recording.

• Up to 32MP IP camera support, with channel limitations.

• 8K HDMI video output and dual 4K display support.

• 400Mbps incoming and 400Mbps outgoing bandwidth.

• H.265+, H.265, H.264+ and H.264 compression.

• Up to 40 channel 1080p decoding at 30fps.

• 16 channel synchronous playback.

• Eight SATA interfaces and one eSATA interface.

• Up to 20TB per internal hard drive.

• RAID 0, 1, 5, 6 and 10 support.

• N+M hot spare recording support.

• Two Gigabit Ethernet interfaces.

• Support for compatible ANPR, people-counting and fisheye cameras.

• 16 alarm inputs and 9 alarm outputs.

• 2U rackmount chassis.
