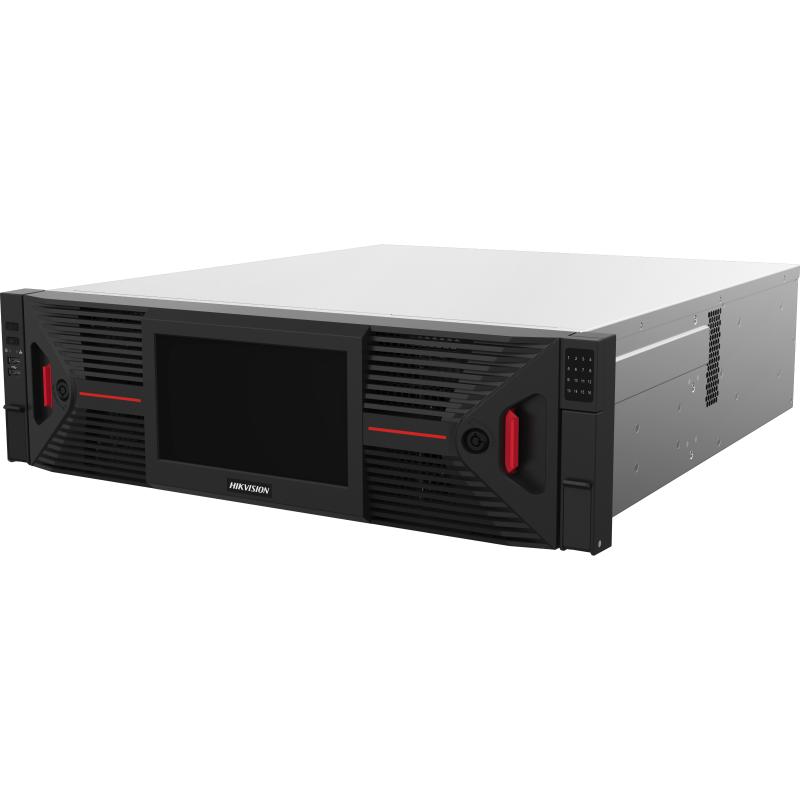

Hikvision DS-96128NI-H16R 128-Channel 4K NVR

Professional 128 Channel IP Camera Recording

The Hikvision DS-96128NI-H16R supports up to 128 compatible IP cameras, making it suitable for extensive CCTV installations that require centralized video recording.

Furthermore, organizations can use the recorder to manage surveillance coverage across multiple buildings, entrances, corridors, parking areas and restricted zones.

High Resolution 4K Video Monitoring

The recorder is designed for high-resolution surveillance applications, allowing security teams to view detailed footage on compatible monitoring displays. As a result, operators can review recorded video more effectively when investigating incidents. Actual display resolution and recording performance depend on the connected cameras, monitor capabilities and recorder configuration.

High Capacity Surveillance Storage

The Hikvision DS-96128NI-H16R belongs to a professional recording platform designed for installations requiring substantial video storage. Its multi drive architecture allows organizations to plan recording capacity around camera count, resolution, frame rate and retention requirements. Additionally, appropriate storage configuration can support continuous recording across large camera networks.

Efficient Video Compression

Modern video compression helps surveillance systems manage network bandwidth and recording storage efficiently. Consequently, businesses can maintain extensive CCTV coverage while reducing unnecessary storage consumption when compatible compression settings are used.

Centralized CCTV Management

The Hikvision DS-96128NI-H16R enables security teams to manage connected cameras through a centralized recording platform. This makes it easier to organize surveillance operations across different buildings, departments and security zones.

Video Playback and Incident Investigation

Security personnel can access recorded surveillance footage to investigate incidents, review activity and support security reporting. Moreover, centralized playback helps reduce the need to access individual cameras when reviewing recorded events.

Remote Surveillance Access

With compatible Hikvision software and appropriate network configuration, authorized personnel can access supported monitoring and playback functions remotely. This allows organizations to manage surveillance operations from approved locations while maintaining user access controls.

Enterprise CCTV Installation

The Hikvision DS-96128NI-H16R is intended for professional security infrastructure requiring numerous IP camera connections and dependable recording management. Therefore, it is suitable for dedicated security control rooms, commercial facilities and large institutional surveillance networks.

Key Features

• 128 channel IP camera input for large surveillance installations.

• Up to 1024Mbps incoming and outgoing bandwidth.

• Dual 4K HDMI and dual 8K DisplayPort output capabilities.

• Up to 48 channel 1080p decoding capacity.

• H.265+ video compression for efficient storage.

• 16 SATA interfaces with hot-plug support.

• Up to 20TB per HDD, providing up to 320TB raw internal storage.

• RAID 0, 1, 5, 6 and 10 support.

• Redundant power supply for improved reliability.

• 16 channel synchronous playback.

• Four network interfaces.

• Support for compatible ANPR, people-counting and fisheye cameras.

• Professional 3U rackmount chassis.

Technical Specifications

Recommended Applications

The Hikvision DS-96128NI-H16R is suitable for large commercial buildings, universities, hospitals, industrial facilities, warehouses, logistics centres, shopping malls and centralized security control rooms.

Its 128-channel capacity, high network bandwidth and redundant storage options make it particularly useful for surveillance environments requiring extensive camera coverage and reliable recording infrastructure.
