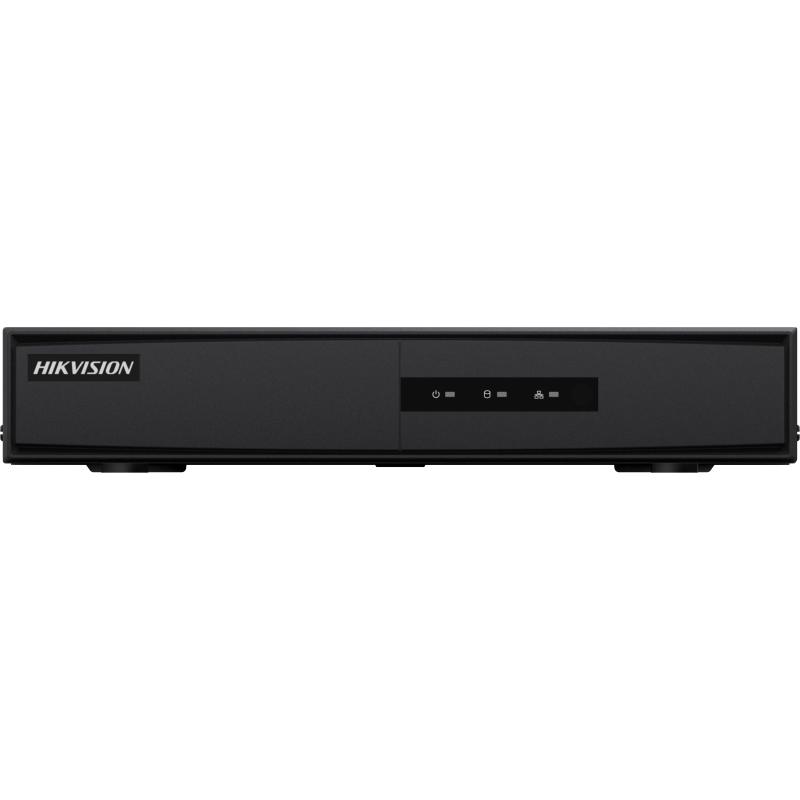

Hikvision DS-7108NI-Q1/8P/M 8ch Mini 1U 8 PoE NVR

Original price was: KSh 17,000.00.Current price is: KSh 15,000.00. EXCL. VAT

Hikvision DS-7108NI-Q1/8P/M 8ch Mini 1U 8 PoE NVR

The Hikvision DS-7108NI-Q1/8P/M 8-Channel PoE NVR is a compact network video recorder designed for reliable IP CCTV surveillance in homes, offices, retail shops, schools and commercial premises.
Featuring 8 IP camera channels, 8 built-in Power over Ethernet (PoE) ports, H.265+ video compression and HDMI/VGA display outputs, this recorder offers centralized security monitoring with simplified camera installation.

Category: Hikvision Network Video Recorder

Description
Reviews (0)

Hikvision DS-7108NI-Q1/8P/M 8ch Mini 1U 8 PoE NVR

8 Channel IP CCTV Surveillance

The Hikvision DS-7108NI-Q1/8P/M supports up to eight compatible IP surveillance cameras, allowing users to monitor entrances, corridors, parking areas, retail counters, offices and building perimeters. Unlike traditional analogue DVRs, this network video recorder connects to IP cameras using Ethernet networking rather than coaxial BNC connections.

8 Built in PoE Ports

The recorder includes eight integrated PoE interfaces, allowing compatible IP cameras to receive power and network connectivity through a single Ethernet cable. This simplifies CCTV installation, reduces cabling requirements and helps centralize camera power management.

H.265+ Video Compression

Hikvision H.265+ video compression helps reduce recording storage consumption and bandwidth requirements when used with compatible cameras. This is especially beneficial for installations where several IP cameras record continuously.

High Resolution IP Camera Recording

The NVR supports high-resolution IP camera recording, allowing users to capture detailed surveillance footage for security monitoring and incident investigation. The maximum camera resolution, recording bandwidth and decoding capacity depend on the recorder’s supported specifications and camera configuration.

HDMI and VGA Display Outputs

The recorder includes HDMI and VGA interfaces for connecting compatible monitors. Users can view live camera feeds, search recorded footage and configure surveillance settings through the local interface.

Hik Connect Remote Monitoring

With a properly configured internet connection, authorized users can access live footage and review recordings remotely through Hik-Connect on compatible smartphones and other supported devices.

Internal SATA Hard Drive Storage

The NVR includes an internal SATA interface for installing a compatible surveillance-grade hard drive. Recording duration depends on installed storage capacity, camera resolution, compression settings and recording schedules.

Compact Mini 1U Design

The Mini 1U housing makes the recorder suitable for offices, security cabinets, retail shops and other installations where equipment space is limited.

Key Features

8 channel IP camera recording
8 built in PoE camera ports
Supports compatible IP cameras up to 6MP
H.265+, H.265, H.264+ and H.264 video compression
60Mbps incoming and 60Mbps outgoing bandwidth
HDMI and VGA simultaneous display output
Up to 4 channel 1080p decoding at 30fps
Up to 4 channel synchronous playback
Smart search and playback
Supports line crossing and intrusion events from compatible cameras
One SATA hard drive interface supporting up to 6TB
IEEE 802.3af/at PoE support with a total power budget of 75W
Hik-Connect remote monitoring
Compact Mini 1U housing

Technical Specifications

Specification	Details
Brand	Hikvision
Model	DS-7108NI-Q1/8P/M
Product Series	Value 7 / Q Series
Product Type	Network Video Recorder
IP Camera Channels	8
Maximum IP Camera Resolution	6MP
Recording Resolutions	6MP, 4MP, 3MP, 1080p, 720p and lower
Video Compression	H.265+, H.265, H.264+, H.264
Incoming Bandwidth	60Mbps
Outgoing Bandwidth	60Mbps
Decoding Capability	4 × 1080p at 30fps, 2 × 4MP at 30fps or 1 × 6MP at 30fps
Synchronous Playback	Up to 4 channels
HDMI Output	1 × HDMI, up to 1920 × 1080 at 60Hz
VGA Output	1 × VGA, up to 1920 × 1080 at 60Hz
Display Mode	Simultaneous HDMI/VGA
PoE Ports	8 × RJ45 10/100Mbps
PoE Standard	IEEE 802.3af/at
Total PoE Budget	75W
LAN Interface	1 × RJ45 10/100Mbps
Remote Connections	Up to 16
HDD Interface	1 × SATA
Maximum HDD Capacity	6TB
USB Ports	2 × USB 2.0
Alarm Input/Output	Not available
Power Supply	48V DC, 1.8A
Power Consumption	≤10W excluding HDD and PoE load
Operating Temperature	-10°C to +55°C
Housing	Mini 1U

Recommended Applications

The Hikvision DS-7108NI-Q1/8P/M is suitable for residential compounds, offices, supermarkets, retail shops, pharmacies, schools, restaurants, clinics, small warehouses and apartment buildings.

Its eight integrated PoE ports make it particularly useful for IP CCTV installations requiring simplified cabling and centralized camera power.
