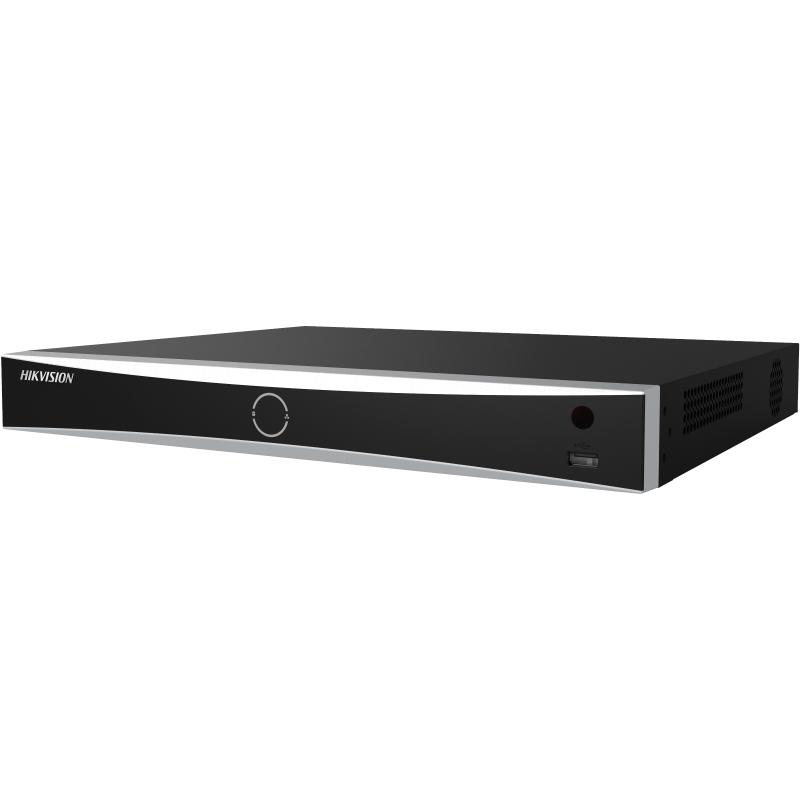

Hikvision DS-7616NXI-K2/16P 16-ch PoE 1U K Series AcuSense 4K NVR

Original price was: KSh 36,000.00.Current price is: KSh 34,500.00. EXCL. VAT

Hikvision DS-7616NXI-K2/16P 16-ch PoE 1U K Series AcuSense 4K NVR

The Hikvision DS-7616NXI-K2/16P 16-Channel AcuSense 4K NVR is a professional network video recorder designed for intelligent IP CCTV surveillance in offices, warehouses, schools, hotels, retail stores and commercial buildings.
Featuring 16 IP camera channels, 16 built-in Power over Ethernet (PoE) ports, Hikvision AcuSense technology, 4K video output and H.265+ compression, this recorder combines high-resolution surveillance with intelligent human and vehicle detection.

Category: Hikvision Network Video Recorder

Description
Reviews (0)

Hikvision DS-7616NXI-K2/16P 16-ch PoE 1U K Series AcuSense 4K NVR

16 Channel IP CCTV Surveillance

The Hikvision DS-7616NXI-K2/16P supports up to 16 compatible IP cameras, allowing businesses and property owners to monitor multiple areas from one centralized recording system. It is suitable for monitoring entrances, corridors, parking areas, warehouses, retail counters, offices and building perimeters.

16 Built in PoE Ports

The recorder includes 16 integrated PoE interfaces, allowing compatible IP cameras to receive both electrical power and network connectivity through a single Ethernet cable. This simplifies CCTV installation, reduces the need for separate camera power adapters and helps centralize camera power management.

Hikvision AcuSense Intelligent Detection

Hikvision AcuSense technology uses deep learning algorithms to distinguish human and vehicle movement from other activity. This helps reduce unnecessary security alerts and allows users to locate important events more efficiently during video investigations.

Intelligent Perimeter Protection

The NVR supports intelligent perimeter protection functions such as line-crossing and intrusion detection, depending on the selected operating mode and connected cameras. These features are useful for monitoring restricted areas, loading zones, entrances and property boundaries.

Facial Recognition Capabilities

The recorder supports facial recognition functions in compatible configurations, helping security personnel perform face based event analysis and video searches. The number of supported facial recognition channels depends on the hardware revision and selected intelligent operating mode.

4K Ultra HD Display Output

The NVR provides HDMI output supporting 4K Ultra HD resolution, allowing compatible monitors to display detailed surveillance images. A VGA output is also available for conventional security monitors.

H.265+ Video Compression

Hikvision H.265+ compression helps reduce storage consumption and network bandwidth requirements when used with compatible cameras. This is especially beneficial for installations with multiple cameras recording continuously.

Dual SATA Hard Drive Storage

The recorder provides two internal SATA interfaces for installing compatible surveillance-grade hard drives. This allows businesses to configure larger recording capacities for 16-camera surveillance installations.

Hik-Connect Remote Monitoring

With a properly configured network connection, authorized users can monitor live footage and review recorded video remotely through Hik-Connect on supported devices.

Key Features

16-channel IP camera recording
16 built-in PoE ports
Hikvision AcuSense deep-learning technology
Motion Detection 2.0 on all 16 channels with compatible cameras
Up to 2-channel NVR-based human and vehicle perimeter analysis
1-channel video-stream facial recognition or 4-channel face picture comparison
Supports IP camera recording resolutions up to 12MP
H.265+, H.265, H.264+ and H.264 compression
160Mbps incoming and outgoing bandwidth
4K HDMI output with independent VGA output
16-channel synchronous playback
Two SATA hard drive interfaces
IEEE 802.3af/at PoE support with up to 200W total budget
Gigabit Ethernet connection
Hik-Connect remote monitoring
Compact 1U housing

Technical Specifications

Specification	Details
Brand	Hikvision
Model	DS-7616NXI-K2/16P
Product Series	K Series AcuSense
Product Type	Network Video Recorder
IP Camera Channels	16
Built-in PoE Ports	16 × RJ45 10/100Mbps
PoE Standard	IEEE 802.3af/at
Total PoE Budget	Up to 200W
Maximum Recording Resolution	12MP
Video Compression	H.265+, H.265, H.264+, H.264
Incoming Bandwidth	160Mbps
Outgoing Bandwidth	160Mbps
Motion Detection 2.0	All 16 channels, camera-dependent
Perimeter Protection	Up to 2-channel NVR-based analysis
Facial Recognition	1-channel video stream or 4-channel picture comparison
HDMI Output	Up to 3840 × 2160 at 30Hz
VGA Output	Up to 1920 × 1080 at 60Hz
Display Mode	Independent HDMI/VGA
Decoding Capability	Up to 2 × 12MP or 12 × 1080p at 30fps, AI disabled on original version
Synchronous Playback	16 channels
Two-Way Audio	1 × RCA
Network Interface	1 × RJ45 Gigabit Ethernet
SATA Interfaces	2
Maximum HDD Capacity	10TB each on original version; 16TB each on `/D` version
USB Interfaces	2 × USB 2.0
Alarm Input/Output	4/1
Power Supply	100–240V AC, 50/60Hz
Power Consumption	≤15W, excluding HDD and PoE load
Operating Temperature	-10°C to +55°C
Dimensions	385 × 315 × 52mm
Weight	≤3kg without HDD
Housing	1U

Recommended Applications

The Hikvision DS-7616NXI-K2/16P is suitable for office buildings, warehouses, supermarkets, shopping centres, schools, hotels, hospitals, apartment complexes and commercial premises requiring up to 16 IP surveillance cameras.

Its integrated PoE ports, intelligent analytics and dual hard drive interfaces make it particularly useful for businesses requiring simplified camera installation, high-resolution recording and efficient security investigations.
