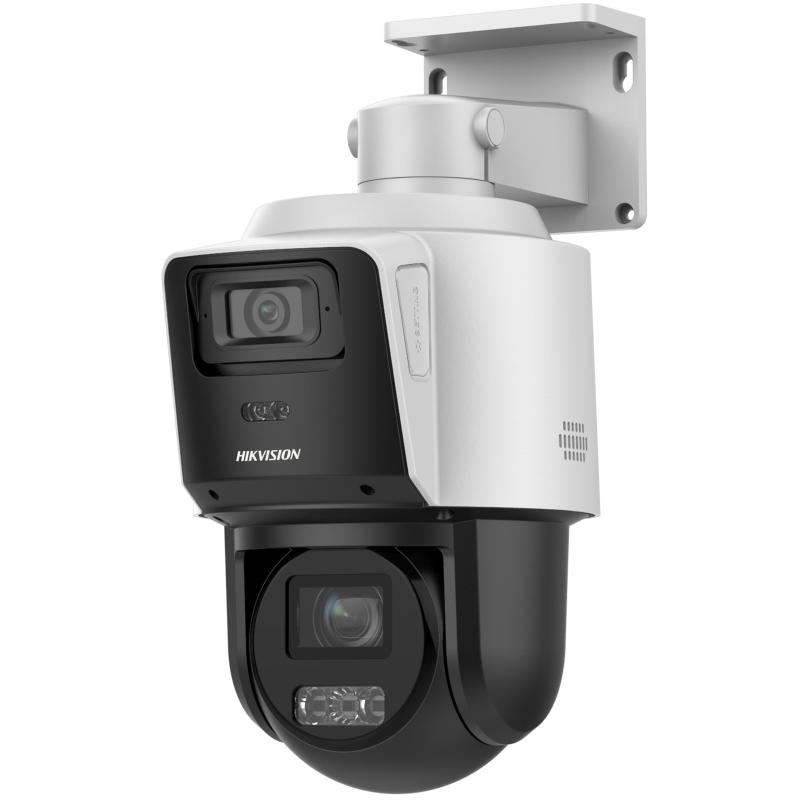

Hikvision DS-2SE3C404MWG-E/14 TandemVu 4MP PTZ Camera

Dual 4MP TandemVu Camera Technology

The Hikvision DS-2SE3C404MWG-E/14 combines two independent surveillance channels within one camera housing. The fixed bullet channel captures a wide-angle overview, while the PTZ channel provides movable surveillance with optical zoom. Both channels deliver a maximum resolution of 2560 × 1440, providing high-quality 4MP imaging for general monitoring and detailed observation.

4× Optical Zoom for Detailed Monitoring

The PTZ channel features a motorized 2.8–12mm varifocal lens, offering 4× optical zoom and 16× digital zoom. Optical zoom allows users to examine distant objects more closely without the same loss of detail associated with digital enlargement. This is particularly useful for monitoring entrances, parking areas, loading bays and outdoor compounds.

Wide Angle Fixed Bullet Camera

The fixed bullet channel uses a 2.8mm lens with a 114.9° horizontal field of view. This provides a consistent overview while the PTZ camera moves or zooms to inspect particular locations. Unlike a conventional single-channel PTZ camera, the TandemVu design helps maintain situational awareness during PTZ operation.

Powered by DarkFighter Low Light Imaging

Hikvision’s Powered by DarkFighter technology improves imaging performance in challenging lighting conditions. The camera captures useful details in low light environments and supports infrared surveillance when ambient illumination is insufficient.

Smart Hybrid Light Night Vision

The fixed bullet channel supports infrared and white-light illumination, each with a range of up to 30 metres. The PTZ channel provides infrared night vision up to 40 metres. This combination supports wide-area nighttime monitoring and closer observation of specific locations.

Intelligent Human and Vehicle Detection

The camera supports human and vehicle detection, helping distinguish relevant security events from general movement. It also supports intelligent events such as line crossing, intrusion, region entrance and region exit detection. These capabilities help security operators identify potentially important activity and configure relevant alerts.

Motorized Pan, Tilt and Preset Positions

The PTZ channel provides motorized movement with a pan range of up to 350° and tilt movement from -5° to 90°. The camera supports up to 300 preset positions and eight patrol routes, allowing security operators to automate monitoring across selected areas.

PoE+ Network Connectivity

The camera supports IEEE 802.3at PoE+ and 12V DC power. PoE+ enables both data transmission and electrical power through one compatible Ethernet cable, simplifying installation.

Outdoor Weather Protection

The IP66-rated housing protects the camera against dust and powerful water jets, making it suitable for outdoor security installations.

Key Features

• Dual 4MP camera channels: fixed bullet and PTZ

• 2560 × 1440 resolution on each channel

• Fixed 2.8mm wide-angle overview lens

• Motorized 2.8–12mm PTZ lens

• 4× optical zoom and 16× digital zoom

• Powered-by-DarkFighter low-light technology

• Smart Hybrid Light on the fixed bullet channel

• Up to 40m infrared night vision on the PTZ channel

• Human and vehicle detection

• 120dB Wide Dynamic Range

• Built-in microphone and speaker for two-way audio

• 300 PTZ presets and eight patrol routes

• H.265 video compression

• MicroSD storage up to 512GB

• 12V DC or PoE+ power supply

• IP66 outdoor weather protection

Technical Specifications

Recommended Applications

The Hikvision TandemVu DS-2SE3C404MWG-E/14 is suitable for residential compounds, warehouses, schools, factories, shopping centres, parking areas, business premises, logistics facilities and building perimeters.

It is particularly useful where operators need to maintain a wide-angle overview while independently inspecting distant activity using optical zoom.
