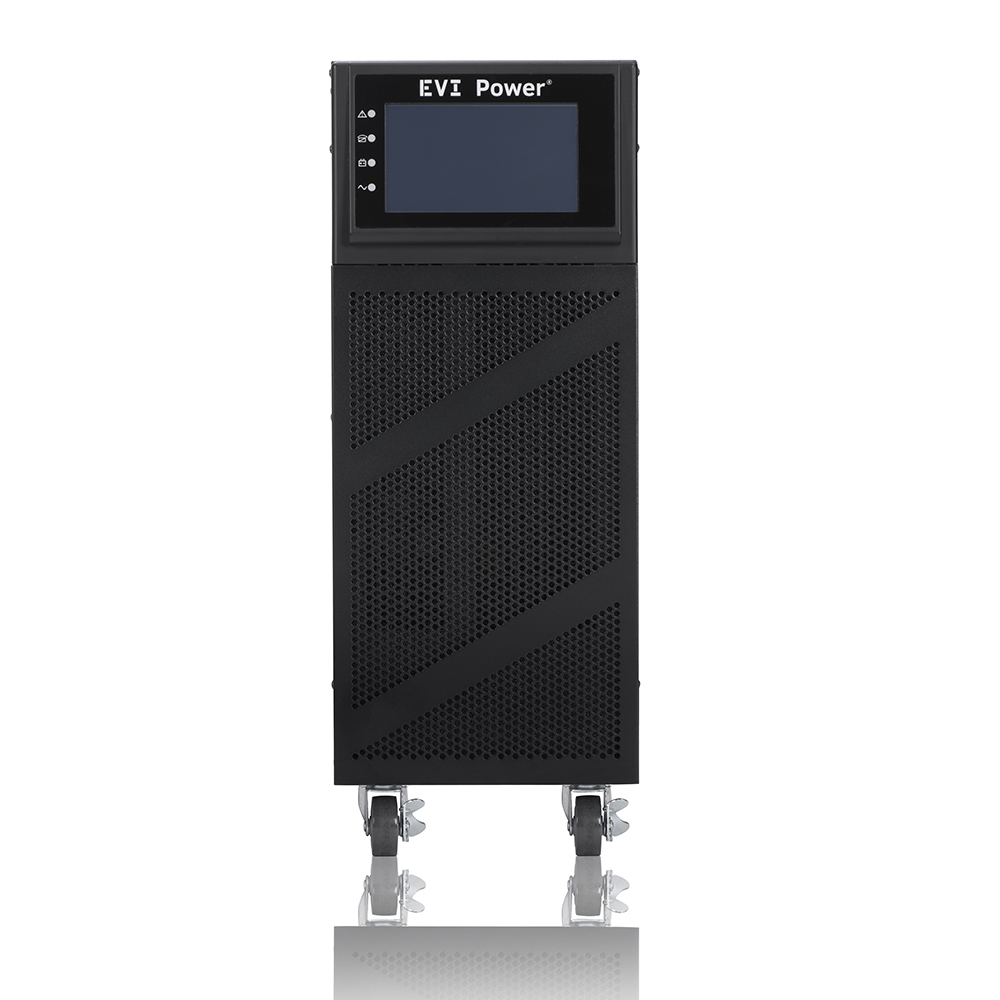

EVI 10000VA 9000W Tower Online 3 Phase EP UPS10000Y33OT

 Overview

The EVI 10000VA UPS is a high-capacity tower online UPS designed for enterprise environments, data centers, and industrial systems. It delivers 10000VA / 9000W output, which makes it suitable for powering large-scale equipment and critical infrastructure. Moreover, the EVI 10000VA UPS uses advanced online double-conversion technology to ensure clean, stable, and uninterrupted power at all times.

 Power Capacity and Performance

The EVI 10000VA UPS provides strong and reliable power for demanding setups. It supports enterprise servers, storage systems, telecom equipment, and industrial machines. In addition, the system uses a high output power factor (0.9), which maximizes usable power and improves efficiency.

Furthermore, the UPS operates within a wide input voltage range of approximately 208–478V, which allows it to handle unstable electricity conditions. As a result, it reduces reliance on battery power and improves overall system performance.

 Online Double Conversion Technology

The EVI 10000VA UPS uses true online double-conversion technology. This means it continuously converts power (AC → DC → AC). Therefore, it provides a pure sine wave output and eliminates power disturbances.

In addition, the system offers zero transfer time, so there is no delay when switching to battery mode. Consequently, connected devices remain fully operational during outages.

 Battery and Backup Features

The EVI 10000VA UPS includes an intelligent battery system with inbuilt batteries and support for external battery packs. This allows users to extend backup time depending on their needs.

Typical features include:

• Intelligent charging management
• Cold start (DC start) capability
• Expandable battery runtime
• Hot-swappable battery support

Backup time varies depending on load. For example, lighter loads run longer, while heavy loads reduce runtime.

 Monitoring and Control

The EVI 10000VA UPS features a 7-inch touch LCD display, which provides real-time system data such as voltage, load, battery status, and alarms.

Moreover, it supports multiple communication interfaces, including:

• USB
• RS232
• RS485
• Parallel port
• Optional SNMP

As a result, users can monitor and control the system remotely.

 Design and Installation

The EVI 10000VA UPS uses a tower design, which allows flexible placement in offices, server rooms, and industrial environments. In addition, it supports three-phase input and output, which is ideal for high-power systems and balanced load distribution.

Furthermore, it supports parallel operation (N+X redundancy), allowing multiple units to work together for increased capacity or backup reliability.

 Protection Features

The EVI 10000VA UPS includes advanced protection features to ensure system safety:

• Overload protection
• Short-circuit protection
• Surge and spike protection
• Thermal protection
• Over-voltage and under-voltage protection
• Emergency Power Off (EPO)

Therefore, it protects critical equipment from electrical faults and unstable power conditions.

 Applications

The EVI 10000VA UPS is ideal for:

• Data centers
• Hospitals and medical equipment
• Industrial plants
• Telecom infrastructure
• Banks and financial systems
• Large enterprise IT environments

As a result, it is suitable for any application that requires continuous and reliable power.

 Advantages

• High 9000W capacity for enterprise workloads
• True online UPS with zero transfer time
• Three-phase support for high-power systems
• Advanced monitoring and remote control
• Expandable battery system
• Parallel redundancy for scalability

Limitations

• Higher cost compared to smaller UPS units
• Requires professional installation
• Large size and weight

 Final Verdict

The EVI 10000VA UPS (EP-UPS10000Y33OT) is a premium enterprise-grade power solution designed for mission-critical environments. It combines high capacity, advanced online technology, and intelligent management features. Therefore, it is an excellent choice for organizations that require stable, uninterrupted, and scalable power backup.
