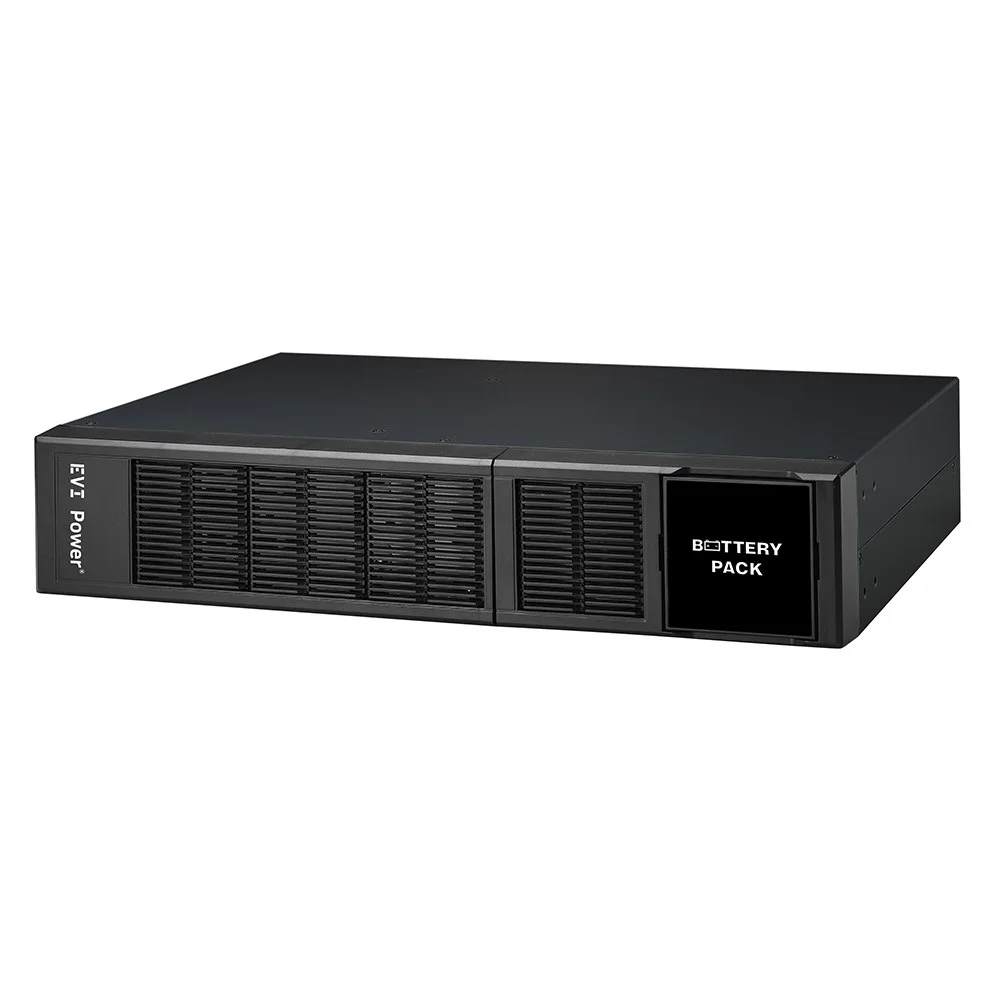

EVI 2000VA 1800W Rack Mt Single Phase EP UPS2000UC13OR
The EVI 2000VA / 1800W Rack Mount Online UPS (EP-UPS2000UC13OR) provides continuous and reliable power protection for mission-critical equipment. Built with true online double-conversion technology, it isolates connected devices from power disturbances and delivers a stable pure sine wave output. As a result, it is ideal for servers, network cabinets, telecommunications systems, security installations, and other sensitive electronic equipment.
With an output power factor of 1.0, the UPS delivers the full 1800W of usable power, allowing businesses to maximize connected loads without compromising performance. Additionally, its wide input voltage range of 110–300Vac minimizes battery usage during voltage fluctuations, thereby extending battery life and improving overall efficiency.
The unit features advanced Power Factor Correction (PFC) with an input power factor of up to 0.99. Consequently, it reduces power losses and improves energy efficiency. Furthermore, the UPS supports both 50Hz and 60Hz frequency conversion modes, making it suitable for a wide range of applications and environments.
A rotating LCD display provides clear visibility of operating status, battery condition, load levels, input and output parameters, and system alerts. In addition, users can select output voltages of 200V, 208V, 220V, 230V, or 240V to match specific equipment requirements. The intelligent battery charging system optimizes battery performance while supporting both traditional lead-acid and modern lithium battery systems with BMS integration.
For enhanced management and monitoring, the UPS includes USB and RS232 communication ports. Moreover, an optional SNMP card enables remote monitoring and control over network environments. The Emergency Power Off (EPO) function provides an additional layer of safety by allowing immediate shutdown during emergencies.
The UPS also supports ECO mode operation for improved energy efficiency and generator compatibility for reliable backup power integration. Additionally, the low-priority load disconnection feature helps preserve battery runtime for critical equipment during extended power outages.
Designed for rack-mount installations, the EVI 2000VA Online UPS offers dependable power protection, flexible deployment options, and advanced management capabilities for modern IT and business environments.
Key Features
- 2000VA / 1800W online double-conversion UPS
- Unity output power factor (1.0)
- Wide input voltage range: 110–300Vac
- Input power factor up to 0.99 with PFC
- Pure sine wave output
- Selectable output voltages: 200V, 208V, 220V, 230V, 240V
- Rotating LCD display
- Smart battery charging technology
- Supports lithium batteries and BMS integration
- Optional charging current: 1A or 2A
- 50Hz / 60Hz frequency converter mode
- Emergency Power Off (EPO) function
- ECO mode for higher efficiency
- Generator compatible
- USB and RS232 communication ports
- Optional SNMP card support
- Low-priority load disconnection feature
- 8 IEC C13 output sockets
- Rack-mount design
- 2-year UPS warranty and 1-year battery warranty
Technical Specifications
- Model: EP-UPS2000UC13OR
- Capacity: 2000VA / 1800W
- UPS Topology: Online Double Conversion
- Input Voltage Range: 110–300Vac
- Input Power Factor: 0.99
- Output Power Factor: 1.0
- Output Voltage Options: 200V / 208V / 220V / 230V / 240V
- Frequency Mode: 50Hz / 60Hz Converter
- Communication Ports: USB, RS232
- Optional Interface: SNMP Network Card
- Output Sockets: 8 × IEC C13
- Battery Support: Lead-acid and Lithium Batteries with BMS
- Display: Rotating LCD Screen
- Installation: Rack Mount
- Warranty: 2 Years UPS, 1 Year Battery
