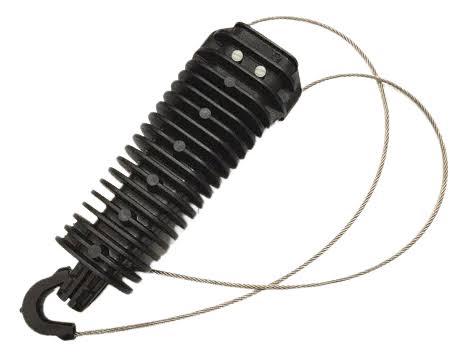

ADSS Tension clamp PA 3000

The ADSS Tension Clamp PA3000 provides a reliable and durable solution for anchoring aerial fiber optic cables on utility poles and telecommunication infrastructure. It is specifically designed for ADSS cables, ensuring consistent cable tension while protecting the cable jacket from wear and damage.

The clamp incorporates self-adjusting polymer wedges that automatically adapt to the cable diameter, providing a firm grip without requiring special installation tools. Its UV-resistant polymer body and stainless steel bail offer excellent resistance to corrosion, sunlight, rain, and harsh outdoor environments, ensuring long-term performance.

The PA3000 is commonly used at dead-end poles, angle poles, and intermediate poles in FTTH, GPON, CATV, FTTx, and metropolitan fiber networks. Most PA3000 variants support ADSS cable diameters of 8–12 mm and are intended for spans of up to 100 meters, although specifications may vary slightly by manufacturer.

Key Features

• Designed for ADSS fiber optic cables
• Self-adjusting wedge design for secure cable grip
• Tool-free, quick, and easy installation
• UV-resistant engineering polymer body
• Corrosion-resistant stainless steel bail
• Prevents damage to the cable jacket
• Suitable for overhead aerial fiber installations
• Excellent resistance to harsh weather conditions
• Low maintenance and long service life

Typical Specifications

• Product Model: PA3000
• Cable Diameter: 8–12 mm (common version)
• Maximum Span: Up to 100 m
• Minimum Breaking Load (MBL): 8–15 kN (depends on manufacturer)
• Body Material: UV-resistant polymer
• Bail Material: Stainless steel
• Application: ADSS aerial fiber optic cable anchoring

Applications

• FTTH (Fiber to the Home)
• FTTx network deployments
• GPON installations
• CATV fiber networks
• ISP backbone networks
• Telecommunication aerial cable installations
• Utility pole fiber infrastructure
