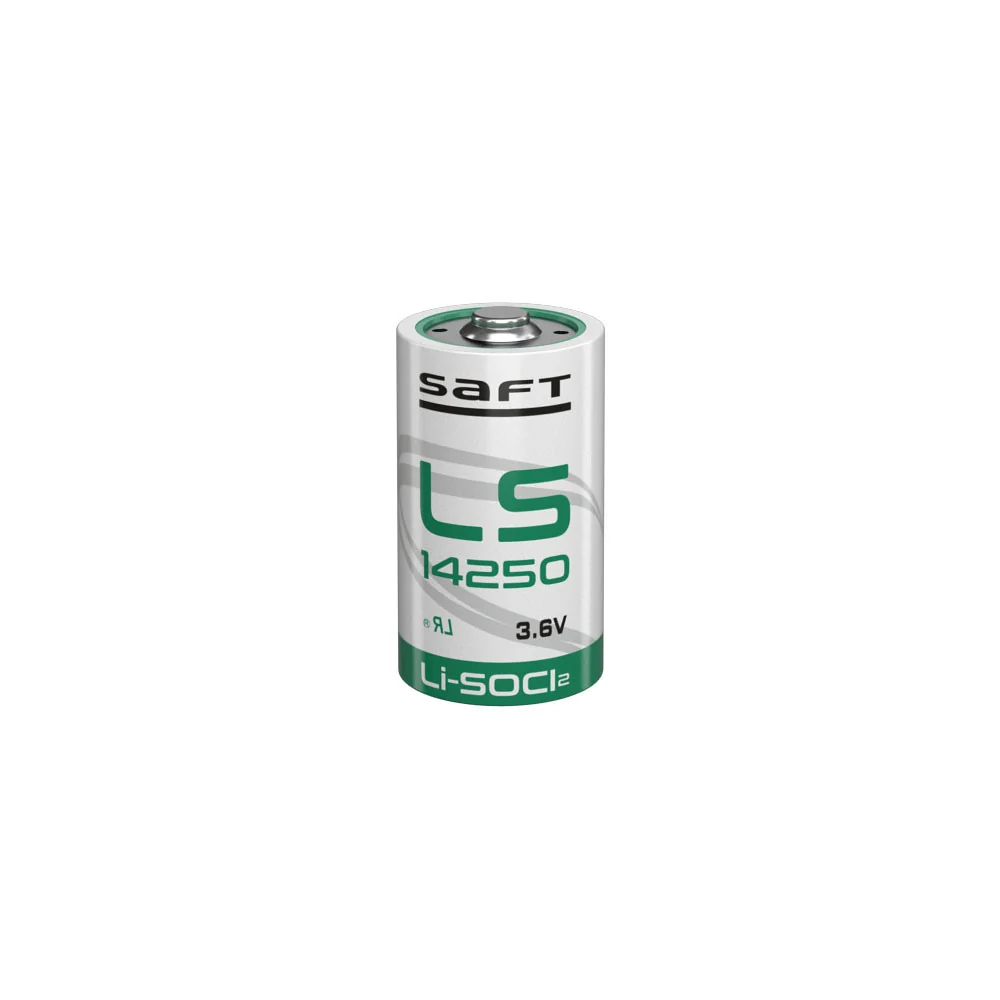

SAFT LS 14250 3.6V 1/2 AA lithium Battery

The SAFT LS14250 3.6V Lithium Battery provides dependable power for electronic equipment that requires a stable energy source over an extended period. Its compact 1/2 AA size makes it suitable for devices with limited battery space. In addition, its lithium chemistry provides high energy density and excellent storage performance.

3.6V Lithium Power

The SAFT LS14250 delivers a nominal voltage of 3.6V, making it suitable for electronic equipment specifically designed for 3.6V lithium primary batteries. It uses Lithium Thionyl Chloride (Li-SOCl₂) chemistry, which provides stable voltage during much of the battery’s operating life.

1,200mAh Battery Capacity

With a nominal capacity of 1,200mAh, the LS14250 supports long-term operation in low-power electronic devices. Actual battery life depends on the equipment’s power consumption, temperature and discharge conditions.

Low Self-Discharge

The battery features a very low self-discharge rate, typically less than 1% per year under suitable storage conditions. This makes it suitable for equipment that remains in service for extended periods without frequent battery replacement.

Wide Operating Temperature Range

The LS14250 is designed for operation across a temperature range of approximately -60°C to +85°C. This makes it suitable for many industrial, commercial and outdoor electronic applications, subject to the equipment’s operating requirements.

Compact 1/2 AA Design

The battery measures approximately 14.6mm in diameter and 25.15mm in height. Its small cylindrical design makes it suitable for compact electronic devices that require a 1/2 AA battery.

Long Storage Life

SAFT designs the LS14250 for long-term storage and dependable operation. When stored correctly, the battery can offer a shelf life of up to 10 years, depending on storage conditions.

Industrial and Security Applications

The LS14250 is commonly used in equipment such as:

• Industrial controllers and automation equipment

• Memory backup systems

• Smart utility meters

• Security and alarm systems

• Wireless sensors

• Data logging equipment

• Electronic measuring instruments

• Industrial monitoring devices

Compatibility depends on the voltage, battery dimensions, terminal type and power requirements of the equipment.

Key Features

• Genuine SAFT LS14250 lithium battery

• 3.6V nominal voltage

• 1,200mAh nominal capacity

• Lithium Thionyl Chloride (Li-SOCl₂) chemistry

• Compact 1/2 AA size

• Non-rechargeable primary battery

• High energy density

• Low self-discharge

• Long storage life

• Wide operating temperature range

• Stable voltage output

• Suitable for industrial electronic equipment

• Ideal for memory backup and monitoring systems

• Designed for long-term low-power applications

Technical Specifications

Important Battery Information

The SAFT LS14250 is not rechargeable. Never attempt to recharge it using a conventional AA or lithium-ion battery charger. Although it resembles a small AA battery, it is a 3.6V 1/2 AA cell, not a standard 1.5V AA battery or a 3.7V rechargeable lithium-ion cell.

Before replacement, confirm that your equipment requires an LS14250-compatible 3.6V battery. Also check whether the original battery uses standard terminals, solder tabs or another connector arrangement. The LS14250 is designed primarily for low-current applications. Equipment with high pulse-current demands may require additional design considerations.
