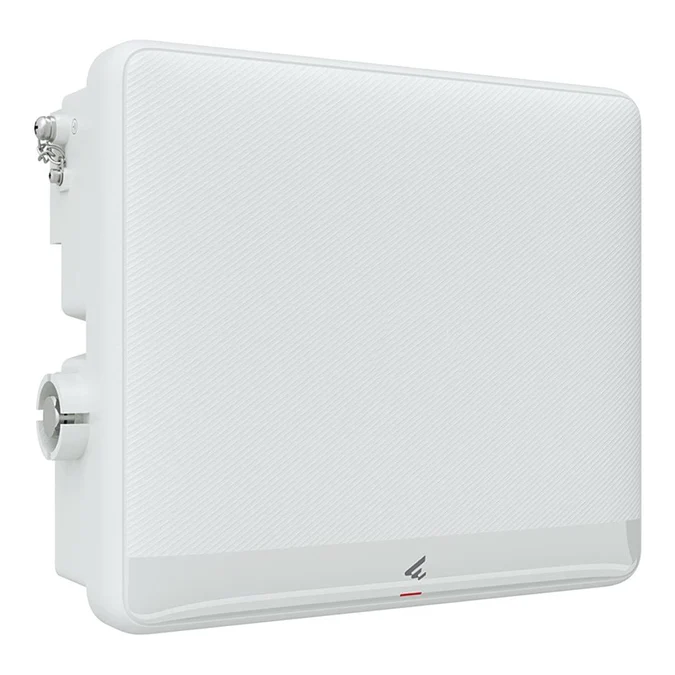

The Huawei eKitEngine AP772 is a next-generation outdoor wireless access point built on the latest Wi-Fi 7 (802.11be) standard. Designed for high-capacity outdoor deployments, it provides up to 6.45 Gbps aggregate wireless throughput using dual-band 2.4 GHz and 5 GHz radios. The access point supports six spatial streams with 2×2 MIMO on 2.4 GHz and 4×4 MIMO on 5 GHz, delivering exceptional performance for bandwidth-intensive applications and dense user environments.

Built for harsh outdoor conditions, the AP772 features an IP68-rated enclosure that protects against dust, water, and extreme weather. It also incorporates surge and lightning protection, making it suitable for deployment in stadiums, pedestrian streets, amusement parks, public squares, industrial sites, and educational campuses.

The access point includes a 2.5 Gigabit Ethernet port and a 10 Gigabit SFP+ uplink port, ensuring high-speed backhaul connectivity for demanding wireless networks. Integrated smart omnidirectional antennas provide wide-area coverage of up to 160 meters, while Huawei’s intelligent radio optimization improves network efficiency and user experience.

For simplified deployment and management, the AP772 supports Huawei eKit cloud management, enabling administrators to configure, monitor, and maintain networks remotely through the Huawei eKit platform. Advanced security features including WPA3, 802.1X authentication, and enterprise-grade encryption help safeguard network resources and user data.

Key Features

• Wi-Fi 7 (802.11be) technology
• Dual-band operation (2.4 GHz + 5 GHz)
• Up to 6.45 Gbps wireless throughput
• 2×2 MIMO at 2.4 GHz and 4×4 MIMO at 5 GHz
• Built-in smart omnidirectional antennas
• Coverage radius up to 160 meters
• IP68-rated weatherproof enclosure
• 1 × 2.5GE RJ45 port
• 1 × 10GE SFP+ optical uplink port
• Bluetooth Low Energy (BLE) support
• USB expansion port
• WPA3 enterprise security
• Cloud-based management via Huawei eKit
• Pole and wall mounting support
• Lightning and surge protection

Technical Specifications

• Wi-Fi Standard: IEEE 802.11be (Wi-Fi 7)
• Maximum Throughput: 6.45 Gbps
• Radio Design: Dual-band
• Spatial Streams: 6
• MIMO Configuration: 2×2 (2.4 GHz), 4×4 (5 GHz)
• Ethernet Ports: 1 × 2.5GE RJ45
• Fiber Uplink: 1 × 10GE SFP+
• Antenna Type: Built-in omnidirectional smart antennas
• Bluetooth: BLE supported
• Protection Rating: IP68
• Power Options: IEEE 802.3af/at PoE or 48V DC
• Operating Temperature: -40°C to +70°C
• Weight: Approximately 2.76 kg

Ideal Applications

• University and school campuses
• Stadiums and sports venues
• Shopping malls and public squares
• Industrial parks and warehouses
• Resorts and hospitality facilities
• Outdoor event venues
• Smart city wireless deployments
• Pedestrian streets and amusement parks

The Huawei eKitEngine AP772 is an ideal solution for organizations seeking enterprise-grade outdoor Wi-Fi 7 connectivity with long-range coverage, ultra-fast performance, and exceptional durability in challenging environments.
