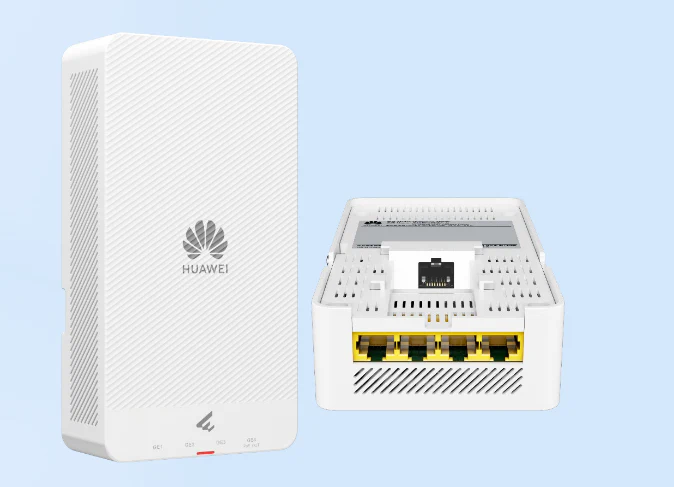

Huawei eKitEngine AP266 Wireless Access Point

The Huawei eKitEngine AP266 is a next-generation indoor Wi-Fi 6 access point that combines powerful wireless performance with a compact wall-plate design. Designed for hospitality, education, healthcare, residential, and business environments, it provides fast, secure, and reliable wireless access while supporting multiple wired devices through its integrated Gigabit Ethernet ports.

Key Features

• Wi-Fi 6 (802.11ax) technology
• Dual-band operation (2.4GHz and 5GHz)
• Combined wireless throughput up to 2.975Gbps
• 2×2 MIMO on both 2.4GHz and 5GHz bands
• Four spatial streams
• Built-in smart antenna technology
• OFDMA and MU-MIMO support
• Fast roaming and intelligent radio optimization
• WPA3 wireless security support
• Cloud, standalone, and controller-based management
• 1 × Gigabit Ethernet uplink port
• 4 × Gigabit Ethernet downlink ports
• 1 downlink port supports PoE Out (up to 15W)
• Bluetooth support for smart applications
• Compact wall-plate design
• Supports wall, desk, ceiling, and junction-box installation
• Automatic radio calibration
• Low power consumption
• Ideal for high-density indoor deployments

Technical Specifications

• Model: AP266
• Product Type: Indoor Wall-Plate Access Point
• Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6)
• Frequency Bands:
  • 2.4GHz
  • 5GHz
• Maximum Wireless Throughput: 2.975Gbps
• MIMO Configuration:
  • 2×2 @ 2.4GHz
  • 2×2 @ 5GHz
• Spatial Streams: 4
• Antenna Type: Built-in Smart Antennas
• Ethernet Ports:
  • 1 × GE Uplink Port
  • 4 × GE Downlink Ports
• PoE Output:
  • 1 × Downlink Port with PoE Out
  • Maximum PoE Output: 15W
• Radio Count: 2
• Maximum Users: Up to 128
• Maximum SSIDs: 16
• Bluetooth: Supported
• Power Input:
  • IEEE 802.3at PoE
• Maximum Power Consumption:
  • 9.4W (excluding PoE Out)
• Mounting Options:
  • Wall Mount
  • Ceiling Mount
  • Desktop Installation
  • Junction Box Installation
• Dimensions:
  • 160 × 86 × 38 mm

Security Features

• WPA3 Security
• WPA2 Security
• 802.1X Authentication
• DTLS Encryption
• User Access Control
• Rogue Device Detection
• Secure Cloud Management

Ideal Applications

• Hotels and Guest Rooms
• Apartments and Residential Buildings
• Schools and Universities
• Hospitals and Healthcare Facilities
• Small and Medium Businesses
• Retail Stores
• Meeting Rooms
• Commercial Offices
• Student Accommodation

Benefits

• Delivers high-speed Wi-Fi 6 connectivity
• Supports both wireless and wired devices
• Simplifies deployment with multiple mounting options
• Extends network access through integrated Gigabit ports
• Enhances user experience with smart antenna technology
• Supports cloud-based centralized management
• Reduces infrastructure costs with PoE capabilities
• Provides reliable coverage for high-density environments
