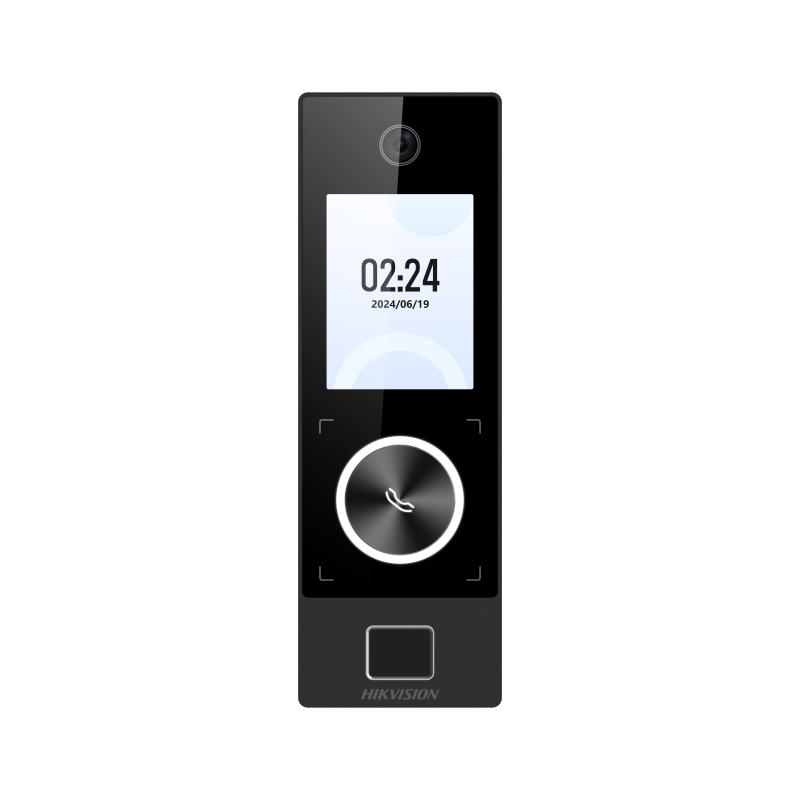

The Hikvision DS-K1T323MBFWX-E1 Face Recognition Terminal is a modern biometric access control solution designed to improve security, streamline employee attendance monitoring, and manage authorized entry into residential, commercial, and institutional premises. Combining facial recognition, fingerprint authentication, and contactless card verification, this intelligent terminal offers flexible identification methods for different security requirements.

Equipped with a 2.4 inch TFT display and a 2 mega pixel wide angle camera, the terminal delivers fast and accurate facial recognition. Furthermore, its compact construction, multiple communication interfaces, and IP65 rated enclosure make it suitable for a wide range of professional access control installations.

Fast and Accurate Facial Recognition

The Hikvision DS-K1T323MBFWX-E1 incorporates advanced facial recognition technology designed to identify registered users quickly and accurately.

Its 2MP wide angle camera captures facial information, while intelligent recognition algorithms compare the captured image with enrolled facial templates. As a result, authorized users can gain access without physically touching the terminal.

The device supports facial recognition at distances ranging from 0.3 to 1.5 metres. Additionally, Hikvision specifies facial recognition accuracy above 99% under controlled testing conditions. Its face anti spoofing functionality provides additional protection against certain attempts to bypass facial authentication using artificial representations.

Multiple Biometric Authentication Methods

The terminal supports three primary authentication methods, allowing organizations to select suitable identification options according to their security policies.

• Face recognition: Provides convenient contactless identification for registered users.
• Fingerprint authentication: Enables biometric verification through the integrated fingerprint reader.
• Card authentication: Supports compatible 13.56 MHz M1 cards for convenient access verification.

Furthermore, administrators can configure supported authentication combinations to accommodate different access control requirements. This flexibility makes the terminal suitable for offices, institutions, residential properties, and businesses with different user preferences.

Large User and Event Storage Capacity

The Hikvision face recognition terminal is designed to support access management in small and medium-sized organizations. It accommodates up to 1,000 registered users and provides storage for 1,000 facial templates, 3,000 fingerprints, and 3,000 cards.

Additionally, the terminal can store up to 150,000 access events, allowing administrators to review historical access activity through compatible management systems. These storage capabilities make it suitable for organizations requiring structured user registration and access event monitoring.

Employee Time Attendance Management

Beyond controlling physical access, the Hikvision DS-K1T323MBFWX-E1 can be used as part of a compatible employee time attendance management system. Organizations can register employees and use supported authentication methods to capture attendance events. Consequently, administrators can monitor employee entry activity and maintain electronic attendance records.

When integrated with compatible Hikvision attendance management software, the system can support attendance reporting and employee record management, depending on the software configuration and licensing. This functionality is particularly useful for offices, retail businesses, schools, and organizations seeking to reduce reliance on manual attendance registers.

Flexible Wi-Fi, Bluetooth and Ethernet Connectivity

The terminal offers several communication options to support different installation environments. Its 10/100 Mbps Ethernet interface provides reliable wired network connectivity, while built in Wi-Fi enables wireless network integration. Additionally, Bluetooth support offers compatibility with supported mobile credential and management functions.

The terminal also supports access point mode, mobile web configuration, and PC web configuration. Therefore, installers can configure compatible settings without relying exclusively on dedicated desktop management software.

Convenient Power over Ethernet Support

The Hikvision DS-K1T323MBFWX-E1 supports standard PoE connectivity, allowing electrical power and network data to be delivered through a compatible Ethernet connection. Alternatively, the terminal can operate using a suitable 12V DC power supply.

When powered through the specified PoE arrangement, the terminal also supports a 12V DC, 1A output for a compatible door lock, subject to the manufacturer’s wiring requirements. Consequently, installers can simplify cabling and reduce the need for separate power connections in supported installations.

Integrated Door Access Control

The terminal includes essential interfaces for controlling and monitoring a compatible access-controlled door. It supports connections for a door lock, exit button, door contact sensor, and tamper input. Furthermore, its Wiegand input allows integration with compatible external access control equipment.

These interfaces make it suitable for controlling authorized access to offices, staff entrances, secure rooms, and other restricted areas.

Two Way Audio Communication

The DS-K1T323MBFWX-E1 supports two way audio communication with compatible client software, indoor stations, and main stations. It also features a physical call button that can be used within supported communication configurations. As a result, the terminal can form part of an integrated access control and communication system, providing additional convenience for building entrance management.

Durable IP65 Rated Construction

The terminal features an IP65 rated enclosure designed to provide protection against dust and water jets under specified testing conditions. Additionally, its operating temperature range of -30°C to 65°C makes it suitable for various installation environments.

Its compact, wall mounted design allows convenient installation near doors, entrance corridors, reception areas, and controlled access points. However, appropriate mounting, electrical protection, and environmental precautions remain important for dependable operation.

Key Features and Benefits

• 2MP wide angle camera: Supports reliable facial recognition.
• 2.4 inch TFT display: Provides a clear interface for access verification.
• 1,00 face capacity: Suitable for small and medium-sized organizations.
• 3,000 fingerprint capacity: Supports flexible biometric enrollment.
• 3,000 card capacity: Enables convenient card-based authentication.
• 150,000 event records: Provides extensive access event storage.
• Fast facial recognition: Supports efficient identification of registered users.
• Face anti spoofing: Adds protection against certain fraudulent authentication attempts.
• Wi-Fi connectivity: Supports flexible wireless network integration.
• Bluetooth support: Enables compatible mobile credential functions.
• PoE support: Simplifies compatible power and network installations.
• Two way audio: Supports communication with compatible Hikvision equipment.
• Door control interfaces: Supports electronic locks, exit buttons, and door sensors.
• IP65 protection: Provides dust and water resistance.
• Wall mounted installation: Offers convenient placement at access points.

Suitable Applications

The Hikvision DS-K1T323MBFWX-E1 is suitable for:

• Office access control and employee attendance.
• Schools, colleges, and training institutions.
• Apartment buildings and residential complexes.
• Hotels and hospitality establishments.
• Warehouses and storage facilities.
• Retail shops and supermarkets.
• Hospitals and healthcare facilities.
• Commercial buildings and business premises.
• Staff entrances and restricted access rooms.
