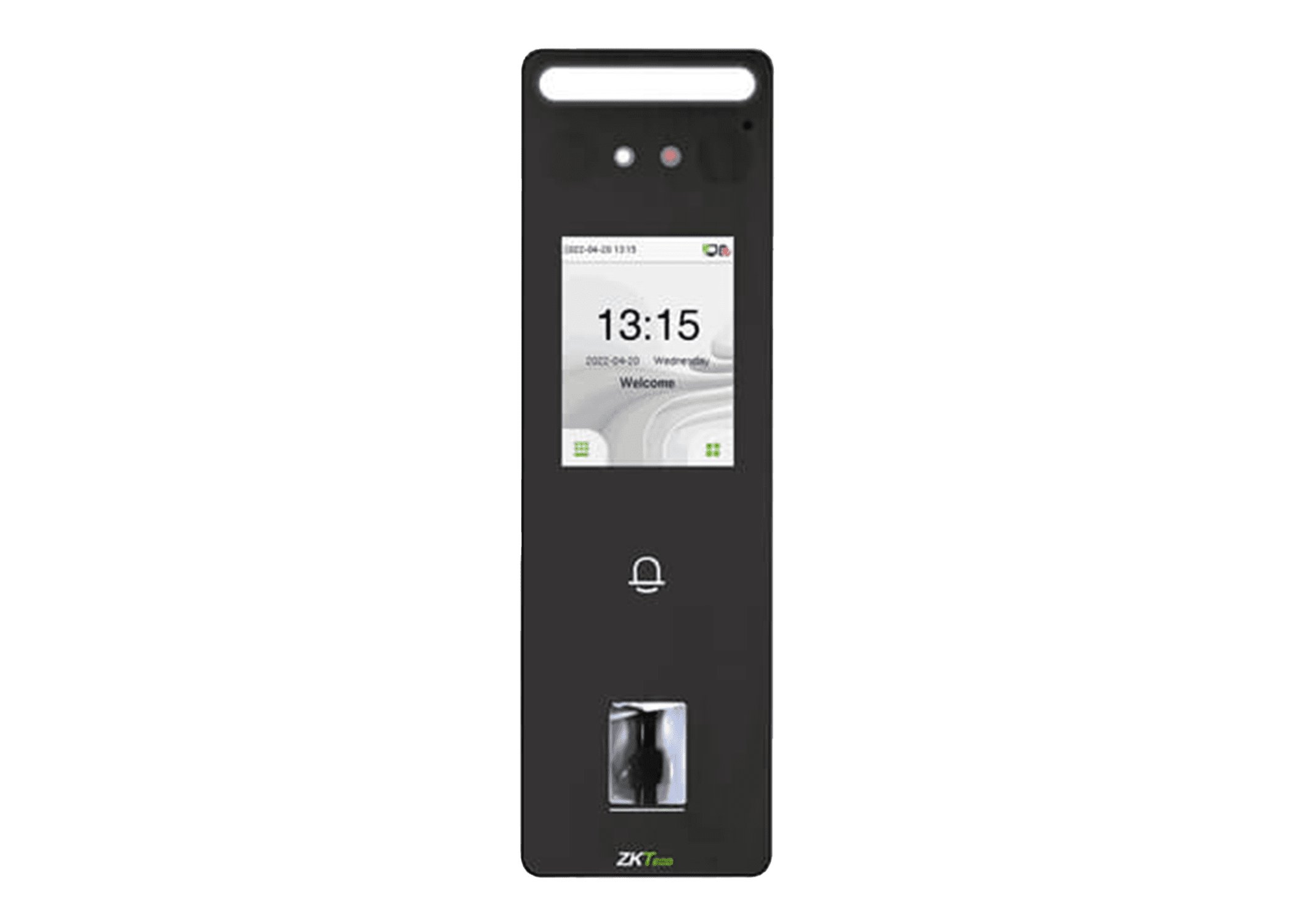

Zkteco ZK-SPEEDFACE-V3L-P Access Control Time Attendance

The ZKTeco SpeedFace-V3L-P Access Control Time Attendance Terminal provides a smart way to manage employee attendance and secure entry. It combines facial recognition, fingerprint verification, card authentication, and password access in one compact biometric terminal.

Moreover, the device offers fast verification and flexible access control features. Therefore, it is suitable for offices, schools, warehouses, apartments, factories, and other commercial premises.

Fast Facial Recognition

The SpeedFace-V3L-P uses visible-light facial recognition technology to identify registered users. Facial verification takes less than one second. As a result, employees and authorized visitors can gain access quickly.

In addition, the device supports a facial recognition distance of approximately 0.5 to 2 metres. Therefore, users can verify their identity without standing extremely close to the terminal.

Multiple Verification Methods

Different organizations have different security requirements. Therefore, the SpeedFace-V3L-P supports several verification methods.

Users can authenticate using:

• Facial recognition
• Fingerprint
• RFID card
• Password
• Combined verification methods

As a result, administrators can select an authentication method that matches their security needs. Furthermore, multiple verification options provide flexibility for different users.

Access Control and Time Attendance

The ZKTeco SpeedFace-V3L-P combines access control and employee attendance management. Therefore, businesses can use one device for two important functions.

For attendance, employees authenticate when arriving or leaving work. The terminal then records each transaction. Consequently, administrators can use compatible software to review attendance information.

For access control, the terminal can connect to compatible door hardware. This includes electric locks, magnetic locks, door sensors, exit buttons, and alarm systems.

High User Capacity

The SpeedFace-V3L-P provides enough capacity for many small and medium-sized organizations. Moreover, its large transaction storage helps businesses maintain attendance and access records.

Standard capacity includes:

• 3,000 users
• 500 face templates
• 3,000 fingerprints
• 3,000 cards
• 200,000 transaction records

Therefore, the terminal can support a large number of employees without requiring frequent record management.

2.4-Inch Touchscreen Display

The terminal includes a 2.4-inch touchscreen with a 240 × 320 resolution. The screen provides a clear interface for user enrollment, verification, and device management.

Furthermore, the compact display helps maintain the terminal’s slim design. As a result, the unit can fit neatly beside doors and other controlled entry points.

Powerful Biometric Performance

The SpeedFace-V3L-P runs on a 1.2GHz dual-core processor. It also includes 256MB RAM and 512MB internal storage.

In addition, the terminal features a 1MP binocular camera with supplementary LED lighting. Therefore, it can support reliable facial recognition under different lighting conditions.

TCP/IP Network Connectivity

The SpeedFace-V3L-P supports TCP/IP connectivity for network communication. Therefore, administrators can connect the terminal to compatible attendance and access control systems.

Depending on the configuration, optional Wi-Fi may also be available. In addition, the terminal supports several communication interfaces.

These include:

• TCP/IP
• Optional Wi-Fi
• Wiegand Input
• Wiegand Output
• RS485
• Auxiliary Input

Consequently, installers have several options when integrating the terminal into an access control network.

Complete Door Access Integration

The ZKTeco SpeedFace-V3L-P can form part of a complete standalone access control system. Therefore, it can work with several compatible door accessories.

The terminal supports connections for:

• Electric locks
• Magnetic locks
• Door sensors
• Exit buttons
• Alarm systems
• Doorbells
• Auxiliary devices

As a result, businesses can build a complete controlled-door solution around the terminal.

IP65 Protection

The SpeedFace-V3L-P features an IP65 protection rating. Therefore, the housing provides protection against dust and water ingress under conditions covered by the rating.

Moreover, the terminal supports operating temperatures from approximately -5°C to 45°C. It also operates within a humidity range of around 10% to 90% RH.

Consequently, installers have greater flexibility when selecting an appropriate installation location.

Easy Employee Attendance Management

Businesses can use the terminal to simplify employee attendance recording. Staff members simply verify their identity when reporting to work or leaving.

The system then stores the transaction automatically. Therefore, organizations can reduce their reliance on manual attendance books and paper-based records.

Furthermore, biometric verification helps ensure that attendance records are linked to registered users.

Centralized Management

The SpeedFace-V3L-P supports compatible ZKTeco management platforms. Therefore, administrators can manage users, access permissions, attendance records, and device settings from a central system.

Centralized management is particularly useful for businesses with many employees. In addition, it can make access control administration easier across supported locations and devices.

Advanced Access Control Functions

The terminal includes several functions for creating structured access policies. Therefore, administrators can configure access based on their organization’s requirements.

Supported functions can include:

• Access levels
• User groups
• Holiday schedules
• Anti-passback
• Multiple verification methods
• Record query
• Tamper alarm
• ADMS
• Daylight Saving Time support

Moreover, these features help organizations manage when and how registered users can enter controlled areas.

Suitable for Offices

The SpeedFace-V3L-P is an excellent option for modern office environments. For example, businesses can install it at staff entrances, restricted rooms, or selected office doors.

Employees can use biometric verification for entry. At the same time, the terminal can record attendance transactions.

Therefore, businesses can combine attendance and access management without installing separate systems for every function.

Suitable for Schools and Institutions

Schools, colleges, training centres, and other institutions can also benefit from biometric access control.

For instance, the terminal can help manage staff attendance while controlling access to selected rooms. Moreover, administrators can assign access permissions to registered users.

As a result, institutions can improve control over staff-only and restricted areas.

Suitable for Warehouses and Factories

Warehouses and industrial facilities often need controlled entry to operational areas. Therefore, biometric authentication can provide a practical way to manage authorized personnel.

The SpeedFace-V3L-P can control compatible door locks while recording employee transactions. Furthermore, administrators can create different access permissions for specific users or groups.

Ideal for Different Applications

The ZKTeco SpeedFace-V3L-P can support many access control and attendance applications.

Typical installation locations include:

• Offices
• Schools and colleges
• Warehouses
• Factories
• Apartment buildings
• Retail premises
• Hotels
• Commercial buildings
• Staff entrances
• Server rooms
• IT rooms
• Restricted areas

Therefore, the terminal provides a flexible solution for many commercial and institutional environments.

Key Specifications

• Brand: ZKTeco
• Series: SpeedFace-V3L
• Model: SpeedFace-V3L-P
• Application: Access Control & Time Attendance
• Operating System: Linux
• Display: 2.4-inch touchscreen
• Resolution: 240 × 320
• Processor: 1.2GHz Dual-Core CPU
• RAM: 256MB
• Storage: 512MB
• Camera: 1MP binocular camera
• User Capacity: Up to 3,000
• Face Capacity: Up to 500
• Fingerprint Capacity: Up to 3,000
• Card Capacity: Up to 3,000
• Transaction Capacity: Up to 200,000 records
• Face Verification Speed: Less than 1 second
• Face Recognition Distance: Approximately 0.5–2 metres
• Communication: TCP/IP, Wiegand, RS485 and optional Wi-Fi
• Access Control: Lock, door sensor, exit button and alarm support
• Power Supply: 12V DC, 3A
• Protection Rating: IP65
• Operating Temperature: Approximately -5°C to 45°C
• Operating Humidity: 10%–90% RH
• Installation: Wall mount

Why Choose ZKTeco SpeedFace-V3L-P?

The ZKTeco SpeedFace-V3L-P Access Control Time Attendance Terminal combines several security and workforce management functions in one device. Therefore, businesses can manage both employee attendance and controlled entry more efficiently.

Moreover, it supports face, fingerprint, RFID card, and password authentication. This gives administrators more flexibility when setting up user verification.

In addition, its TCP/IP connectivity, IP65 protection, high transaction capacity, and door control interfaces make it suitable for many installations.

Overall, the ZKTeco SpeedFace-V3L-P provides a practical biometric solution for businesses that need reliable access control and employee time attendance management
