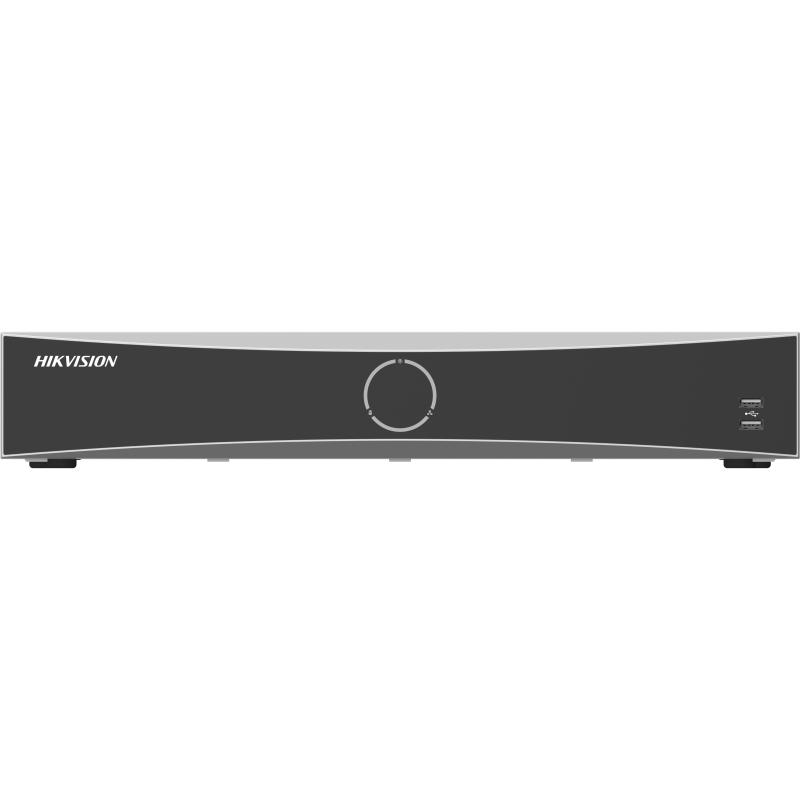

Hikvision DS-7732NXI-K4/16P 32-ch PoE 1U AcuSense 4K NVR

32 Channel IP CCTV Surveillance

The Hikvision DS-7732NXI-K4/16P supports up to 32 compatible IP cameras, allowing businesses and institutions to monitor multiple areas from one centralized recording system. It is suitable for monitoring entrances, corridors, warehouses, loading bays, parking areas, retail floors, offices and building perimeters.

16 Built in PoE Ports

The recorder features 16 integrated PoE interfaces, allowing compatible IP cameras to receive electrical power and network connectivity through Ethernet cables. For installations requiring more than 16 cameras, additional compatible IP cameras can be connected through suitable external network switches and power arrangements.

Hikvision AcuSense Intelligent Detection

Hikvision AcuSense uses deep-learning algorithms to distinguish people and vehicles from other moving objects. This helps reduce unnecessary security alerts and enables more efficient event searches and incident investigations.

Intelligent Perimeter Protection

The NVR supports intelligent security functions such as line-crossing and intrusion detection with human and vehicle classification. These functions are useful for monitoring restricted areas, entrances, loading zones and property boundaries.

High Resolution IP Camera Recording

The recorder supports compatible high-resolution IP surveillance cameras, providing detailed footage for security monitoring and investigation. Actual recording performance depends on camera resolution, frame rate, encoding settings and available network bandwidth.

4K Ultra HD Display Output

The NVR includes HDMI output for connecting compatible 4K monitors, providing detailed local surveillance viewing. A VGA interface is also available for conventional security monitors.

H.265+ Video Compression

Hikvision H.265+ compression helps reduce recording storage requirements and network bandwidth consumption when used with compatible cameras. This is especially useful for installations with numerous cameras recording continuously.

Four SATA Hard Drive Interfaces

The recorder includes four internal SATA interfaces for installing compatible surveillance-grade hard drives. This provides greater recording storage flexibility than one- or two-drive NVR models and is useful for installations requiring extended video retention.

Hik-Connect Remote Monitoring

With a properly configured internet connection, authorized users can monitor live camera feeds and review recorded footage remotely through Hik-Connect on supported devices.

Key Features

• 32 channel IP camera recording

• 16 built in PoE ports

• Hikvision AcuSense deep learning technology

• Human and vehicle classification

• Motion Detection 2.0 on all channels with compatible cameras

• Up to 2 channel NVR based perimeter protection

• 1 channel video stream facial recognition or 4 channel face picture comparison

• Supports IP camera recording up to 12MP

• H.265+, H.265, H.264+ and H.264 compression

• Up to 256Mbps incoming bandwidth

• 4K HDMI output

• Up to 16-channel synchronous playback

• Four SATA hard drive interfaces

• Up to 200W shared PoE power budget

• Gigabit Ethernet connectivity

• Hik-Connect remote monitoring

Technical Specifications

Recommended Applications

The Hikvision DS-7732NXI-K4/16P is suitable for large warehouses, factories, schools, office complexes, shopping centres, hotels, hospitals, apartment buildings and other commercial properties requiring up to 32 IP surveillance cameras.

Its four hard drive interfaces make it particularly useful for surveillance installations requiring substantial recording storage, while its intelligent detection functions help improve security event management.
