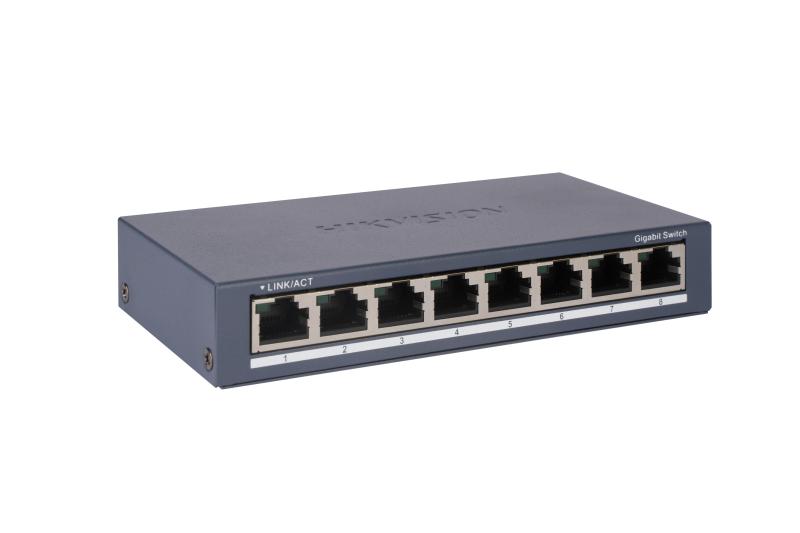

Hikvision DS-3E0508-O 8-Port Gigabit Switch

The Hikvision DS-3E0508-O 8-Port Gigabit Switch is a compact and efficient networking solution designed to expand Ethernet connectivity in residential and commercial environments. Equipped with eight Gigabit Ethernet ports, this unmanaged switch allows multiple networking devices to communicate efficiently while supporting data transmission speeds of up to 1000 Mbps per port.

Whether connecting desktop computers, network printers, routers, network storage devices, or compatible IP surveillance equipment, the switch provides dependable wired communication for everyday networking applications.

Furthermore, its unmanaged architecture eliminates the need for advanced technical configuration, making it suitable for both professional network installers and users looking for a straightforward networking solution.

High Speed Gigabit Ethernet Connectivity

The DS-3E0508-O supports Gigabit Ethernet connectivity across all eight RJ45 ports, allowing compatible devices to transfer data at speeds of up to 1000 Mbps. Additionally, its 16 Gbps switching capacity and non blocking architecture help maintain efficient communication when multiple devices are connected simultaneously.

This makes the switch suitable for office file sharing, network printing, internet access, and connecting network storage equipment.

Efficient Data Forwarding and Network Performance

With a packet forwarding rate of 11.90 Mpps, the switch efficiently processes Ethernet traffic between connected devices. Furthermore, its store and forward switching technology checks incoming frames before forwarding them, helping reduce the transmission of corrupted frames.

The device also features an 8K MAC address table and 4 Mbits of internal cache, supporting efficient network traffic management.

Durable Metal Housing and Silent Operation

The Hikvision DS-3E0508-O features a strong metal enclosure designed for durability and dependable everyday operation. Its fanless construction eliminates mechanical fan noise, making it particularly suitable for offices, classrooms, reception areas, and residential installations. Additionally, its compact dimensions allow convenient desktop placement or wall-mounted installation.

Simple Plug and Play Installation

As an unmanaged Gigabit switch, the DS-3E0508-O operates without requiring complex configuration or network management software.

Users simply connect the power supply, attach an Ethernet cable from their router or existing network, and connect their devices to the available ports. Consequently, the switch provides a straightforward method of expanding an existing wired network.

Energy Efficient Operation and Surge Protection

The switch operates using a 5V DC, 0.6A power supply and consumes a maximum of 3W. Its low power requirements make it suitable for continuous everyday networking applications.

Furthermore, the device features 6 kV surge protection, providing additional protection against certain electrical surges.

Key Features

Technical Specifications

Why Choose the Hikvision DS-3E0508-O?

The Hikvision DS-3E0508-O combines Gigabit Ethernet performance, reliable construction, and simple operation in one compact networking device. Its eight ports provide convenient network expansion, while its fanless metal housing supports quiet and dependable operation.

Whether upgrading a home network, expanding office connectivity, or connecting multiple business devices, this switch offers a practical and economical solution for high-speed wired networking.

Important: This is a non-PoE switch and does not provide power to connected IP cameras or wireless access points through Ethernet cables.
