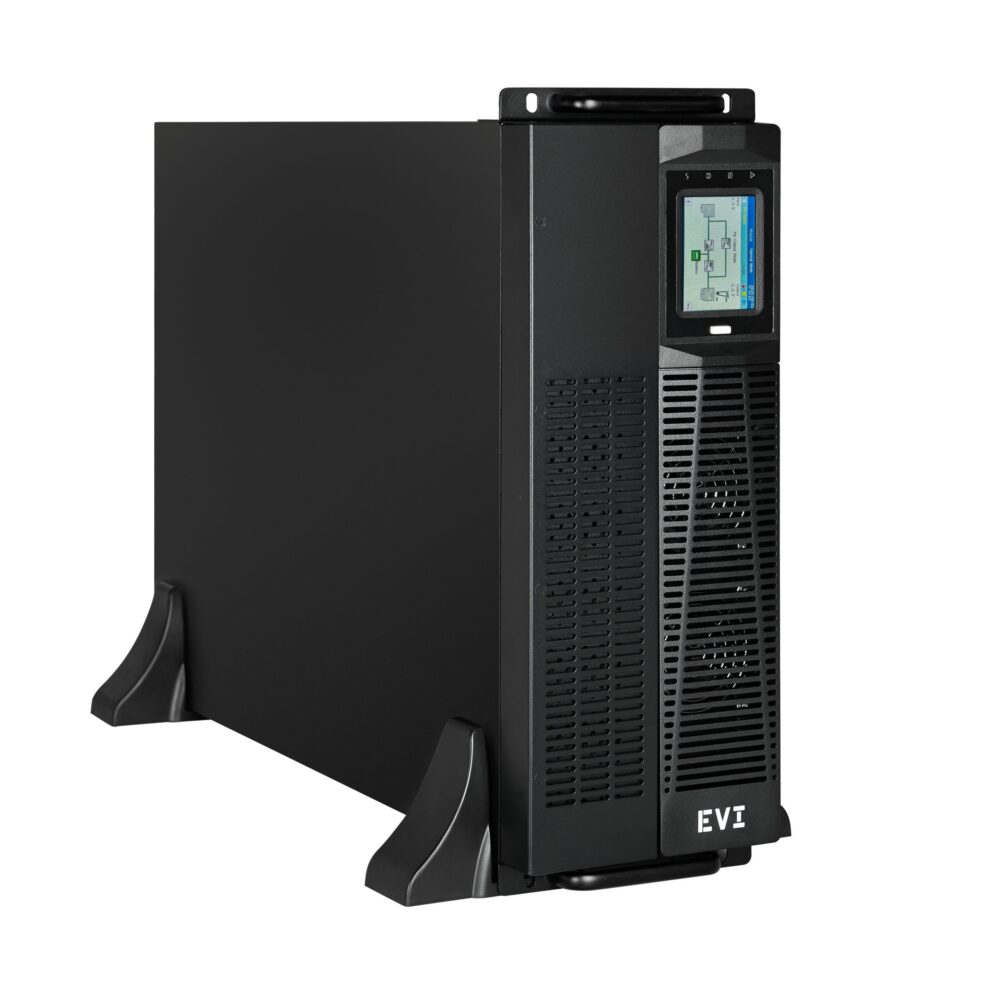

EVI 6000VA 6000W Rack Mount Online Single Phase UPS EP-UPS6000P11OR

The EVI 6000VA / 6000W Rack Mount Online UPS (EP-UPS6000P11OR) provides advanced power protection for mission-critical systems that require maximum uptime and reliability. Built with true online double-conversion technology, it continuously converts incoming power and delivers a pure, stable output, effectively protecting sensitive equipment from power disturbances, surges, voltage fluctuations, and outages.

With a high-capacity 6000VA / 6000W output and a unity power factor of 1.0, this UPS delivers full usable power to support servers, storage systems, network infrastructure, security platforms, telecommunications equipment, and industrial applications. Furthermore, its wide input voltage range of 110–300Vac minimizes battery usage during voltage variations, helping extend battery life and improve overall efficiency.

The UPS features advanced Power Factor Correction (PFC) with an input power factor of 0.99. As a result, it improves energy utilization and reduces strain on the electrical supply system. Additionally, the system provides zero transfer time between AC mode and battery mode, as well as between inverter and bypass operation, ensuring uninterrupted performance for connected equipment.

A modern 3.5-inch color touchscreen display offers intuitive monitoring and control of key operating parameters. Users can easily view load status, battery condition, input and output values, alarm notifications, and system settings. Moreover, selectable output voltage options of 200V, 208V, 220V, 230V, and 240V provide flexibility for various installation requirements.

The UPS includes an intelligent battery charging system that optimizes charging cycles and extends battery life. It is equipped with sixteen 7Ah lead-acid batteries operating at 192V and includes an external battery connector for extended runtime solutions. In addition, the high-performance charging system supports up to 12A charging current for faster battery recovery after power outages.

For enhanced system integration and monitoring, the unit includes USB, RS232, RS485, parallel communication, programmable dry contact ports, maintenance bypass contacts, and an intelligent card slot. Optional interfaces such as COM ports, battery temperature monitoring, and additional programmable I/O contacts further expand management capabilities. Furthermore, optional SNMP and network management solutions enable remote monitoring across enterprise environments.

Designed for flexibility, the EP-UPS6000P11OR supports both rack-mount and tower installations. Its 4U rack form factor includes tower stands, allowing deployment in server racks, network rooms, and equipment cabinets. Additionally, ECO mode operation improves energy efficiency, while generator compatibility ensures reliable operation in facilities with backup generators.

Key Features

• 6000VA / 6000W online double-conversion UPS
• Unity output power factor (1.0)
• Wide input voltage range: 110–300Vac
• Input power factor up to 0.99 with PFC
• Zero transfer time operation
• 3.5-inch color touchscreen display
• Selectable output voltages: 200V, 208V, 220V, 230V, 240V
• Intelligent battery charging technology
• 16 × 7Ah internal batteries (192V system)
• External battery connector for extended runtime
• Maximum charging current of 12A
• USB, RS232, RS485, and parallel communication ports
• Intelligent expansion card slot
• Programmable dry contact interfaces
• Maintenance bypass contact support
• Emergency Power Off (EPO) function
• ECO mode for higher operating efficiency
• Generator compatible
• Rack-mount or tower installation
• Includes tower conversion stands
• 2 × IEC C19 outlets and 3 × IEC C13 outlets
• 2-year UPS warranty and 1-year battery warranty

Technical Specifications

• Model: EP-UPS6000P11OR
• Capacity: 6000VA / 6000W
• UPS Topology: Online Double Conversion
• Input Voltage Range: 110–300Vac
• Input Connection: Terminal (L + N + G)
• Input Power Factor: 0.99
• Output Power Factor: 1.0
• Transfer Time: 0ms Typical
• Output Voltage Options: 200V / 208V / 220V / 230V / 240V
• Internal Batteries: 16 × 7Ah Lead Acid Batteries
• Battery System Voltage: 192V
• External Battery Connector: Yes
• Maximum Charging Current: 12A
• Display: 3.5-inch Touchscreen LCD
• Communication Ports: USB, RS232, RS485, Parallel Port
• EPO Function: Supported
• Maintenance Bypass Contact: Supported
• Intelligent Card Slot: Supported
• Programmable Dry Contact: Supported
• Optional Interfaces: COM Port, Battery Temperature Contact, Additional I/O Contacts
• Output Outlets: 2 × IEC C19, 3 × IEC C13
• Installation Type: 4U Rack Mount / Tower Convertible
• Warranty: 2 Years UPS, 1 Year Battery
