Introduction

The UniFi U7 Long Range is built for environments that demand strong wireless coverage and consistent performance. It combines next-generation WiFi 7 technology with long-range capability. As a result, it ensures stable connectivity across large indoor spaces.

Product Overview

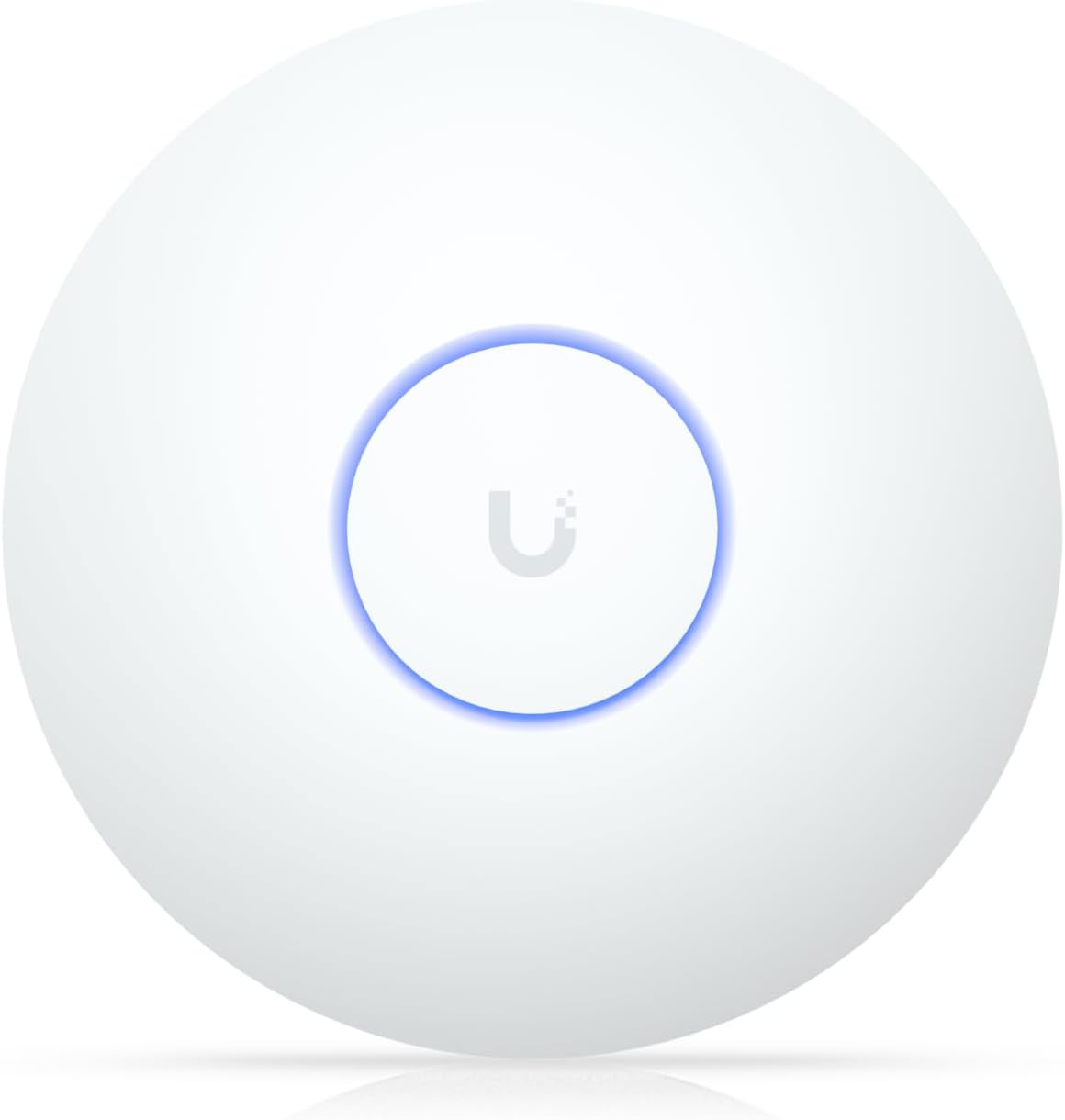

The Ubiquiti U7-LR is a high-performance WiFi 7 access point designed for extended coverage and efficient multi-device handling. It operates on dual-band frequencies (2.4 GHz and 5 GHz), which helps distribute traffic effectively and reduce congestion.

It delivers speeds of up to 4.3 Gbps on the 5 GHz band and 688 Mbps on 2.4 GHz. In addition, it features five spatial streams and MU-MIMO technology. Therefore, it can handle high-density environments such as offices, schools, and hospitality spaces.

With a coverage area of up to 160 m² (1,750 sq ft) and support for over 300 devices, the U7-LR ensures reliable connectivity across larger areas.

Moreover, the 2.5GbE uplink port ensures fast wired backhaul, which improves overall network performance.

Product Key Features

Next-Generation WiFi 7

• Supports WiFi 7 (802.11be)
• Delivers faster speeds and lower latency
• Improves network efficiency for modern applications

Long-Range Coverage

• Covers up to 160 m² (1,750 sq ft)
• Reduces dead zones in large spaces
• Ideal for offices and commercial environments

High-Speed Performance

• Up to 4.3 Gbps on 5 GHz
• Up to 688 Mbps on 2.4 GHz
• Supports streaming, conferencing, and cloud applications

Multi-Device Efficiency

• Supports 300+ connected devices
• Uses MU-MIMO for stable connections
• Maintains performance in busy environments

Advanced Wireless Design

• 5 spatial streams for improved throughput
• Optimized antenna performance
• Better signal distribution across coverage area

High-Speed Uplink

• 1 × 2.5GbE RJ45 port
• Supports high-speed wired connectivity
• Prevents network bottlenecks

Flexible Deployment

• Ceiling and wall mounting supported
• Compact, low-profile design
• Suitable for professional environments

Benefits

• Extended coverage: Covers larger areas with fewer access points
• Reliable performance: Maintains stable connections across many devices
• Future-ready: WiFi 7 ensures long-term usability
• Efficient networking: Reduces congestion in busy environments
• Simple management: Works seamlessly with UniFi Network

Because of these advantages, it is ideal for offices, schools, hotels, and enterprise deployments.

How to Use

1. Mount the device on the ceiling or wall
2. Connect it to your network via Ethernet
3. Power it using PoE
4. Adopt it through the UniFi Network application
5. Configure wireless settings and access policies

Place the device centrally for optimal signal distribution.

Compliance Statement

The UniFi U7 Long Range access point is designed for lawful networking use. It supports modern security standards and enables safe deployment in both commercial and residential environments.

Product Technical Specifications

Technical Details

• Model: U7-LR
• WiFi Standard: WiFi 7 (802.11be)
• Bands: Dual-Band (2.4 GHz / 5 GHz)
• Throughput:
  • 5 GHz: Up to 4.3 Gbps
  • 2.4 GHz: Up to 688 Mbps
• Spatial Streams: 5
• Coverage Area: Up to 160 m² (1,750 sq ft)
• Client Capacity: 300+ devices
• Port: 1 × 2.5GbE RJ45
• Power Method: PoE
• Mounting: Ceiling / Wall
• Management: UniFi Network Application

Wireless Features

• MU-MIMO support
• Band steering
• Fast roaming (802.11k/v/r)
• VLAN support
• Guest network capability

Frequently Asked Questions (FAQ)

1. What makes the U7-LR different from standard access points?

It offers extended range and higher capacity, making it suitable for larger spaces.

2. How fast is the U7 Long Range?

It delivers up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz.

3. How many users can it support?

It supports over 300 devices, which is ideal for high-density environments.

4. Does it support PoE?

Yes. It uses PoE for both power and data through one cable.

5. Where is it best used?

It works well in offices, hotels, schools, and large indoor spaces.

6. Can it be centrally managed?

Yes. It integrates with the UniFi Network application for full control.

7. Is it suitable for future networks?

Yes. WiFi 7 ensures improved performance and long-term compatibility.

Conclusion

The Ubiquiti UniFi U7 Long Range is a powerful and scalable WiFi 7 access point. In addition, it combines long-range coverage, high-speed performance, and efficient device handling, making it a reliable choice for modern network deployments.
