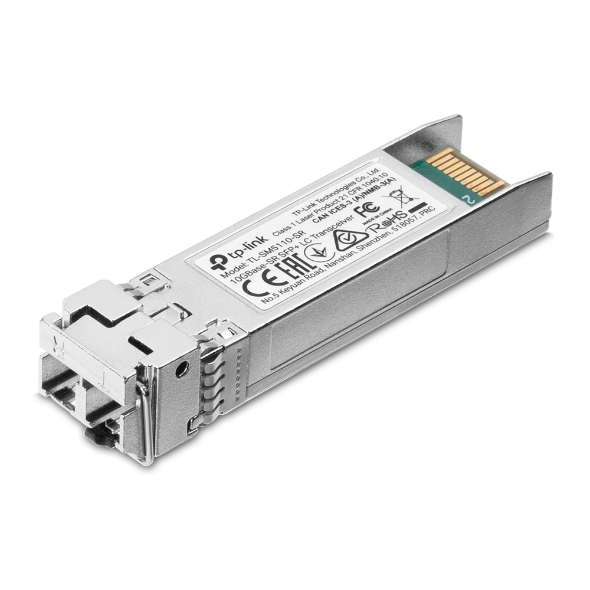

TP-Link SM5110-SR 10GBase-SR SFP+ LC Transceiver

The TP-Link SM5110-SR 10GBase-SR SFP+ LC Transceiver provides fast 10 Gigabit Ethernet over multimode fiber. It is designed for short and medium fiber links in offices, server rooms and data centres. In addition, it supports an 850 nm wavelength, duplex LC connection and DDM for easier network monitoring.

Fast 10Gbps Fiber Connection

The TP-Link SM5110-SR supports data speeds of up to 10 Gbps. Therefore, it is a good choice for networks that need more bandwidth than standard Gigabit Ethernet can provide.

For example, you can use it for:

• Switch-to-switch uplinks
• Server-to-switch connections
• Network backbone links
• Data centre networks
• High-speed file transfers
• Storage networks

As a result, businesses can move large amounts of data quickly across their network.

Multimode Fiber Support

The SM5110-SR works with multimode fiber (MMF). It uses an 850 nm wavelength and comes with a standard duplex LC connector.

Therefore, it works well for fiber links inside offices, server rooms and other business locations. Moreover, the LC connector is widely used in modern fiber networks.

Up to 400 Metres Fiber Distance

The TP-Link SM5110-SR supports different link distances depending on the type of fiber cable used.

It can provide:

• Up to 300 metres with OM3 multimode fiber
• Up to 400 metres with OM4 multimode fiber

Therefore, the module gives network installers more flexibility when connecting equipment across larger buildings. However, actual link performance also depends on the quality of the fiber cable and installation.

Digital Diagnostic Monitoring

The TP-Link SM5110-SR SFP+ Transceiver supports Digital Diagnostic Monitoring (DDM).

With DDM, compatible network equipment can monitor key operating details of the module. As a result, network teams can check the fiber link more easily and identify possible connection problems.

Hot-Swappable SFP+ Design

The SM5110-SR uses the compact SFP+ form factor. Therefore, it fits into compatible 10G SFP+ ports found on many network switches and other devices.

In addition, the module is hot-swappable. This means you can insert or replace it in supported equipment without shutting down the whole network device.

Ideal for Business Networks

The TP-Link SM5110-SR is suitable for many high-speed network setups. For instance, businesses can use it to connect switches, servers and other network equipment.

It is especially useful for:

• Offices
• Server rooms
• Data centres
• Campus networks
• Enterprise networks
• High-speed network backbones

Furthermore, its 10Gbps speed makes it a good choice when upgrading from standard Gigabit fiber.

Key Features

• Model: TP-Link SM5110-SR
• Module Type: SFP+
• Network Standard: 10GBASE-SR
• Data Speed: Up to 10 Gbps
• Fiber Type: Multimode Fiber (MMF)
• Connector: Duplex LC
• Wavelength: 850 nm
• OM3 Distance: Up to 300 metres
• OM4 Distance: Up to 400 metres
• DDM Support: Yes
• Hot-Swappable: Yes
• Main Use: 10 Gigabit fiber connections
• Suitable For: Switches, servers and other compatible SFP+ network equipment

Reliable 10G Fiber Upgrade

The TP-Link SM5110-SR 10GBase-SR SFP+ LC Transceiver is a practical choice for businesses that need fast fiber connections. It provides 10Gbps speeds while using common multimode fiber cabling.

Moreover, its duplex LC connector, DDM support and hot-swappable design make installation and network management easier. Therefore, the SM5110-SR is well suited for upgrading server rooms, business networks and network backbones to 10 Gigabit fiber connectivity
