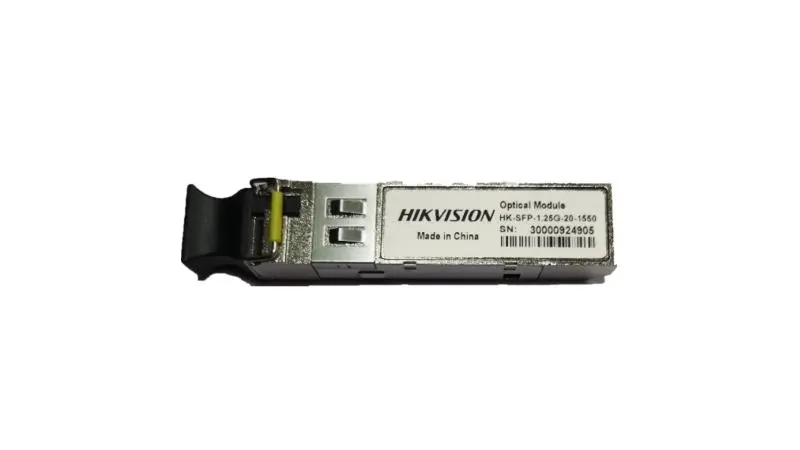

The Hikvision HK-SFP-1.25G-20-1550 SFP Module provides reliable fiber optic connectivity for networking and surveillance applications requiring high speed data transmission over long distances. Designed for single-mode fiber networks, this transceiver supports data rates of up to 1250Mbps and transmission distances of up to 20 kilometers.

The module uses bidirectional optical transmission technology, allowing data to travel in both directions through a single fiber strand. Consequently, network installers can reduce fiber cabling requirements while maintaining efficient communication between compatible networking devices.

Furthermore, the Hikvision HK-SFP-1.25G-20-1550 operates using a 1550nm transmission wavelength and a 1310nm receiving wavelength. For successful communication, it must be paired with a compatible transceiver operating at the opposite wavelengths, typically Tx1310nm/Rx1550nm.

Its compatibility with 9/125µm single mode fiber makes it suitable for long distance connections between buildings, offices, warehouses, security control rooms, and other network locations.

Additionally, the compact SFP form factor allows convenient installation into compatible fiber optic switches and networking equipment. This provides flexibility when expanding existing networks or establishing new fiber connections.

The module is particularly useful in IP CCTV surveillance installations where network switches need to communicate across extended distances. Moreover, its 20km transmission capability makes it practical for campus networks, commercial facilities, industrial sites, and building to building connectivity.

Features

• Brand: Hikvision
• Model: HK-SFP-1.25G-20-1550
• Product Type: SFP Fiber Optic Transceiver Module
• Data Rate: 1250Mbps (1.25Gbps)
• Fiber Type: Single Mode Fiber (SMF)
• Fiber Core Size: 9/125µm
• Transmission Distance: Up to 20km
• Transmission Wavelength (Tx): 1550nm
• Receiving Wavelength (Rx): 1310nm
• Transmission Mode: Single Fiber Bidirectional (BiDi)
• Interface: SFP
• Application: Fiber optic networking, CCTV surveillance, and long distance Ethernet connectivity
