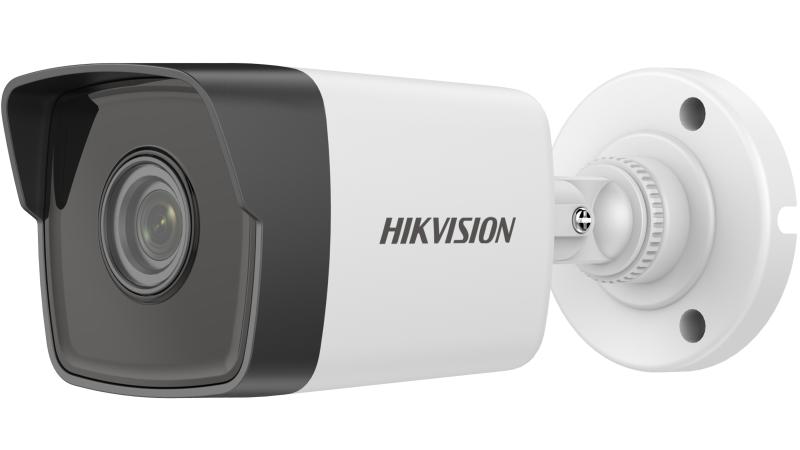

HIKVISION DS-2CD1023G0E-I(C)(4mm) Fixed Bullet Camera

• 2 MP Fixed Bullet Network Camera
• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to DWDR technology
• Water and dust resistant (IP67)
• EXIR 2.0: advanced infrared technology with long IR range

Specification

• Camera

• Image Sensor1/2.7″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100, 000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

• Lens

• Focal Length & FOV: 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
• Lens MountM12
• Iris Type Fixed
• ApertureF2.0
• Illuminator
• Supplement Light Type IR
• Supplement Light Range Up to 30 m
• Smart Supplement Light Yes
• IR Wavelength850 nm

• Video

• Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720), 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression: Main Stream: H.265/H.264/H.264+/H.265+, Sub-Stream: H.265/H.264/MJPEG
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• Region Of Interest (ROI)1 fixed region for main stream

• Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface, ISAPI
• User/Host Up to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web Browser Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+

• Image

• Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
• Day/Night Switch Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)Digital WDR
• SNR≥ 52 dB
• Image Enhancement BLC, 3D DNR

• Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Basic Event Motion detection, video tampering alarm, exception
• Linkage Upload to FTP, notify surveillance center, send email

• General

• Power 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Dimension177.6 mm × 66.2 mm × 67.8 mm (7.0″ × 2.6″ × 2.7″)
• Package Dimension216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
• Weight Approx. 270 g (0.6 lb.)
• With Package Weight Approx. 490 g (1.1 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Language English, Ukrainian
• General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address
