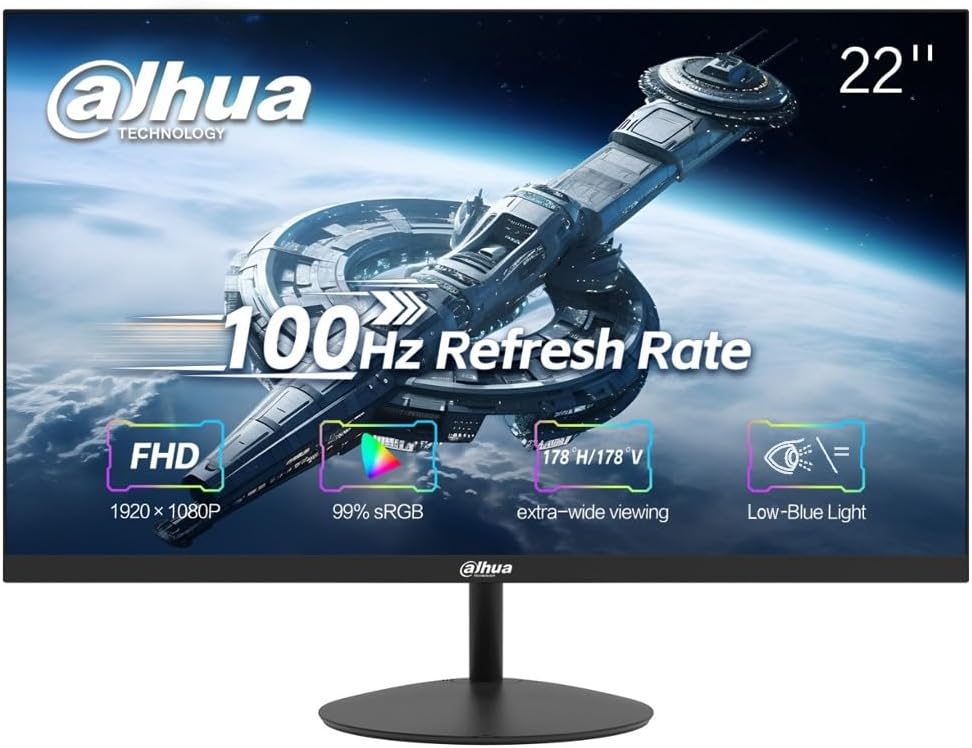

Dahua 22-Inch Full HD 1080p Monitor LM22-A200Y

Specification

Display

• Model: DHI-LM22-A200Y

• Panel Type: VA (Vertical Alignment)

• Backlight Type: ELED

• Screen Size: 21.45 inches

• Aspect Ratio: 16:9

• Active Display Area: 478.656 mm (W) × 260.28 mm (H)

• Viewing Angles: 178° horizontal / 178° vertical

• Display Orientation: Horizontal

• Pixel Pitch: 0.2493 mm × 0.241 mm

• Pixels Per Inch (PPI): 102.69

• Resolution: Full HD – 1920 × 1080

• Refresh Rate: Up to 100 Hz

• Color Depth: 8-bit

• Color Gamut: 72% NTSC (typical)

• Brightness: 250 cd/m²

• Contrast Ratio: 3000:1

• Response Time: 10 ms

• Estimated Lifespan: 30,000 hours

• Input Ports:

  • 1 × VGA (supports 1080p @ 60 Hz)

  • 1 × HDMI 1.4 (supports 1080p @ 100 Hz)

Power & Environment

• Power Supply: 12 VDC, 2 A (external adapter)

• Power Consumption:

  • Basic: 14 W

  • Typical: 16 W

  • Max: 16 W

• Standby Power: < 0.5 W

• Operating Temperature: 0°C to +40°C (32°F to 104°F)

• Operating Humidity: 10%–90% RH

• Storage Temperature: –20°C to +60°C (–4°F to 140°F)

• Storage Humidity: 5%–90% RH

• Tilt Adjustment: –5° ±2° / +15° ±2°

• Dimensions (W × H × D):

  • Without Bracket: 492.7 × 284.0 × 41.2 mm (19.4″ × 11.2″ × 1.6″)

  • Packaging: 598 × 366 × 99 mm (23.5″ × 14.4″ × 3.9″)

• Bezel Width (U/L/R/D): 3.3 mm / 3.3 mm / 3.3 mm / 15.2 mm

• Net Weight: 2.05 kg (4.52 lbs)

• Gross Weight: 2.86 kg (6.30 lbs)

• Color: Black

• Control Method: Five-button interface

• Mounting: VESA 75 mm × 75 mm compatible

Included Accessories

• Power adapter

• Base

• HDMI cable

• User manual (QR code)

• Legal & regulatory information

Optional: Wall mount bracket
