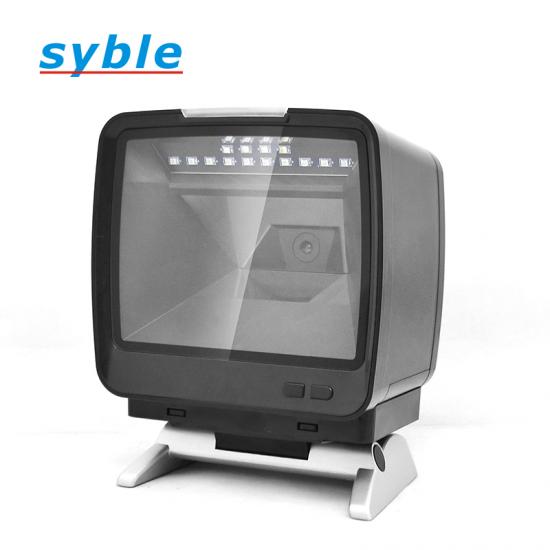

Syble XB-8809H 2D Desktop Barcode Scanner with Metal Base

The XB-8809 Omnidirectional Barcode Scanner delivers high-performance desktop scanning powered by advanced CMOS image recognition and intelligent image processing technology. It supports scanning of both 1D and 2D barcodes from paper, products, and digital screens. With its large scanning window, it offers a comfortable and efficient scanning experience.

Specifications

Performance Parameters

• Light Source: SXGA-W (1280×1024), Ratio 5:4

• Supported Symbologies:
  1D: EAN-8, EAN-13 (including 2/5 add-on), ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, ISBT-128, GS1-128, GS1 DataBar (RSS14), GS1 DataBar Limited, GS1 DataBar Expanded.
  2D: PDF417, MicroPDF417, QR Code, MicroQR, Data Matrix, Aztec.

• Scan Range: EAN-13 (10–220 mm)

• System Compatibility: Linux, Android, Windows XP/7/8/10, macOS

• Minimum Recognition Accuracy: Code 39 (4 mil)

• Motion Tolerance: 3.8 m/s

• Scan Mode: Automatic continuous reading

• Keyboard Support: Multi-language support

• Barcode Output Editing: Supports adding suffixes

• Print Contrast: ≥20%

• Recognition Angles: Yaw ±360°, Pitch ±60°, Roll ±70°

Indicators & Controls

• LED: Red/blue bi-color indicator (Red – scanning, Blue – power)

• Beeper: Start-up and successful scan alerts

• Button: Three-tone switch, toggle for 1D-only mode

Interfaces

• USB (driver-free), RS232, USB-COM

• Dimensions: 150 × 79 × 148 mm

• Weight: 540 g

• Material: ABS + PC

• Cable Length: 1.8 m

• Operating Temperature: -20°C to 55°C

• Storage Temperature: -20°C to 60°C

• Humidity: 5%–95% RH (non-condensing/non-freezing)

• Protection Level: IP54 (dust and splash resistant)

• Ambient Light Tolerance: 0–70,000 LUX

• Working Voltage: DC 5V
